Product Details:
|
| Filter Area: | Extend Surface, Up To 2.5 Times | Felt: | Various Options |
|---|---|---|---|
| Name: | Star Bag / Pleat Bag / Wrinkled Bag | Pleat No.: | 8 Ray, 12 Pleats |
| Top Cuff: | Seal Cuff, Bead Cuff | Metal Hoop: | 304 Stainless Steel |
| Reinforcement: | Two Layers | MOQ: | Negotiable |
| Place Of Origin: | China | Pack: | Plastic Bag And Pallet / Carton And Pallet |
| Highlight: | Round dust collection bags,12 Pleats dust collection bags,160mm dust eliminator bags |
||
Dust Collect Round Bag 8 Ray Star Bags 12 Pleats Pleat Bag High Efficient Extend Filter Surface Bag
1. specification

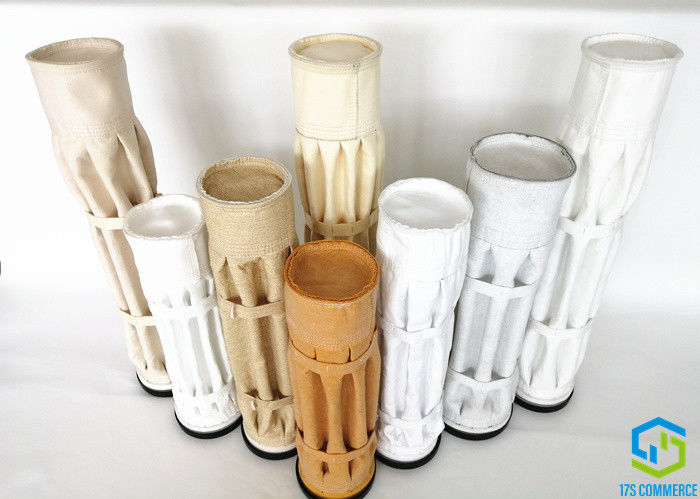

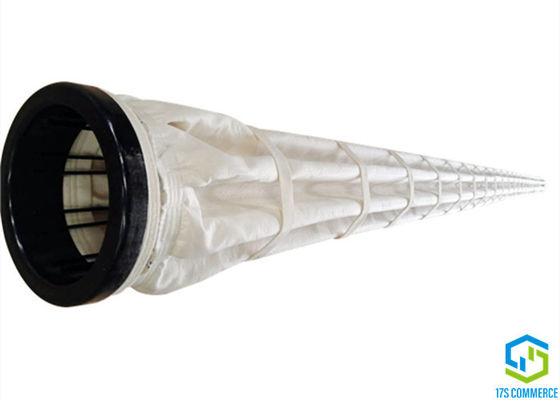

Star filter bags (Star bags) is a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Capacity: 300 per day (star filter bag only, ordinary dust bag excludes)

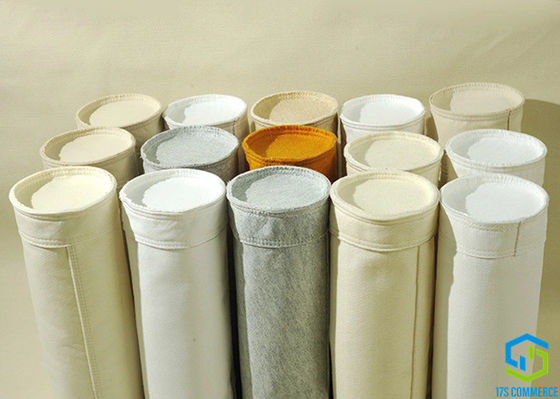

Optional fabric: PE (Polyester), PP (Polypropylene), PA (Nylon), Aramid(Nomex), Acrylic, Fiberglass, PPS, PTFE, P84, etc
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on special treatment can be chosen
Star Bag Style: 8 and 10 and 12 pleats star bags
Bag Size: star dust bag diameters are 120mm, 130mm, 150mm, 155mm, 160mm and customized
Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen
Bag Body: Sewing or Hot sealing
Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
2. advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 | |
| 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 | |
| 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 | |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
| 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 | |
| 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 | |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
3. How to choose star filter bags
Main features of the performance of star bags
| Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
| Continuous Dry Heat Operation | 94℃ | 135℃ | 135℃ | 190℃ | 204℃ | 240℃ | 260℃ | 260℃ | |
| Continuous Moist Heat Operation | 94℃ | 94℃ | 125℃ | 190℃ | 177℃ | 195℃ | 260℃ | 260℃ | |
| Max Short Term Dry Heat | 107℃ | 150℃ | 150℃ | 232℃ | 240℃ | 260℃ | 290℃ 4 | 290℃ | |
| Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
| Moisture Regain (20℃ and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
| Supports Combustion | yes | yes | yes | no | no | no | no | no | |
| Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
| Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
| Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
| Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
| Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
| Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good | |
1)Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82℃
2)PPS is attacked by strong oxidising agents (O2, NOx, Br2) – the presence of which, lower its recommended operating temperature
3)P84 is attacked by Sox in power station applications
4)PTFE will elongate under load at elevated temperature

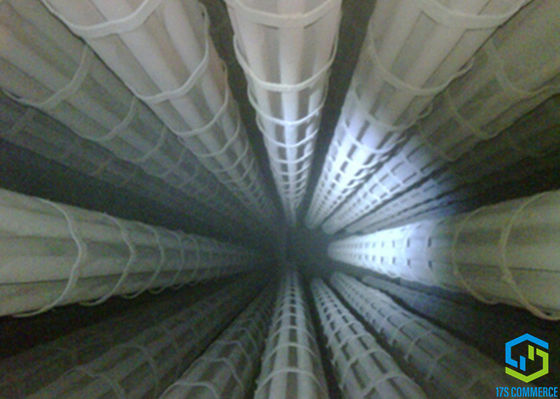

4. Applications of the star filter bag in the bag house
| Plant | Star Bag Material | Application | |||||
| Aluminium Plant | PE | electrolysis fume | |||||
| PPS | aluminum hydroxide calcination | ||||||
| Cement Plant | PE | cement mill, crushing macine, leather belt etc | |||||
| PE with antistatic | coal mill | ||||||
| P84 | kiln back end | ||||||
| Meta aramid | kiln head | ||||||
| Power Sation | PPS | boiler tail gas | |||||
| Steel Plant | PE | casting house, ore bunker, sintering machine end, finished product transportation | |||||
| Acrylic | slag differential | ||||||
| Meta aramid | rotary furnace | ||||||
| PPS/Acrylic | sintering machine head | ||||||
| Chemical Plant | PTFE , Meta aramid | high temperature and corrosive confition | |||||
| Nonferrous Metal Smelt Plant | P84 | aluminum metlting, copper furnace, gold smelt etc | |||||
| Carbon Black Plant | PE, PE with PTFE lamination | grinder machine | |||||
| Glass Plant | PTFE, PTFE composited P84 bag | ||||||
