Product Details:
|
| Material: | Aluminum | Size: | 162*77*180mm |
|---|---|---|---|
| Product Name: | Aluminum Venturi | Colour: | Original Color |
| Treatment: | Shot Blasting And Polish | Position: | Filter Cage Top And CPO |
| HS Code: | 8421 9990 | Workmanship: | Die Casting |
| High Light: | 180mm aluminium venturi,Die Casting aluminium venturi,Mikropul Filter Cage Spare Parts |
||

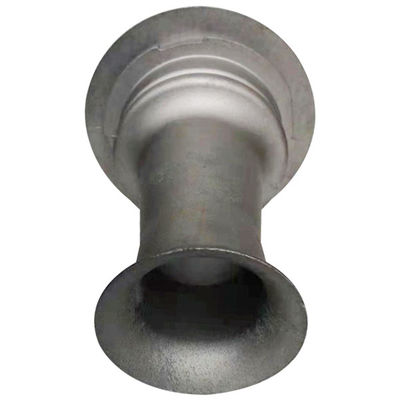

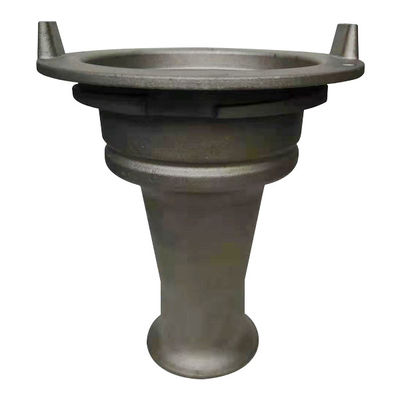

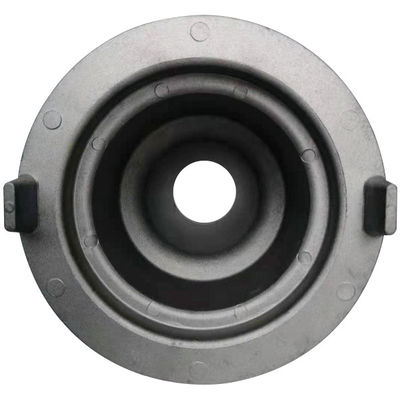

Die Casting Aluminum Venturi 162x77x180mm Mikropul Design Gap Top Filter Cage Top
| Item | 17AV002 |
| Name | Die Cast Venturi |
| Material | Aluminum |
| Size | 162*77*180mm |
| Application | Filter Cage Installation |
Die Cast Aluminum Venturi is used for baghouse. It is a component for baghouse. The venturis combinate to the dust filter cage/bag top and CPO.
There are two ways to install this kind of Aluminum Venturi.
1) for top installation When filter bag and cage in position, insert Aluminum Venturi into bags and cages through CPO, and then twist to lock it on CPO. Clamp bag and cage to venturi.
2) for bottom installation Fasten and twist venturi to CPO, and pull packed bag and cage into venturi from the bottom. Clamp bag and cage to venturi.
Venturi Function:
a) support the cages and bags
b) if the spray torch (top blowing) is not straight venturi can adjust the compressed air flow, so reduce the scour to dust filter bags directly to extend the life of bags
c) make sure compress air reach deeper in bags to achieve a better dust cleaning
Production Flow
