Product Details:
|
| Material: | Aluminum | Size: | 165*76*180mm |
|---|---|---|---|
| Product Name: | Filter Cage Aluminum Venturi | Pack: | Carton And Pallet |
| Surface: | Shot Blasting And Polish | Workmanship: | Die Casting |
| Supply Ability: | 50K Per Month | Load And Unload: | Easy |
| High Light: | aluminum venturi 180mm,Die Casting Aluminum Venturi,180mm Filter Cage Spare Parts |
||

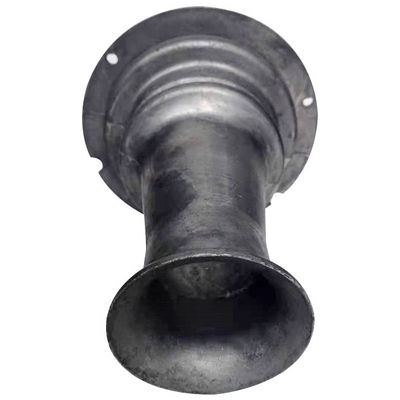

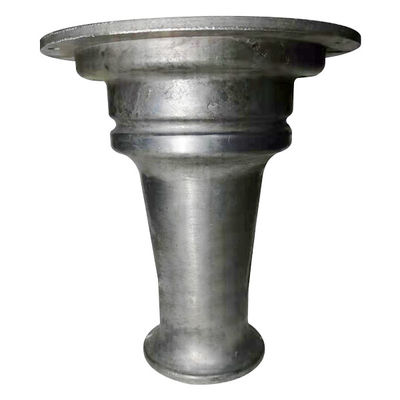

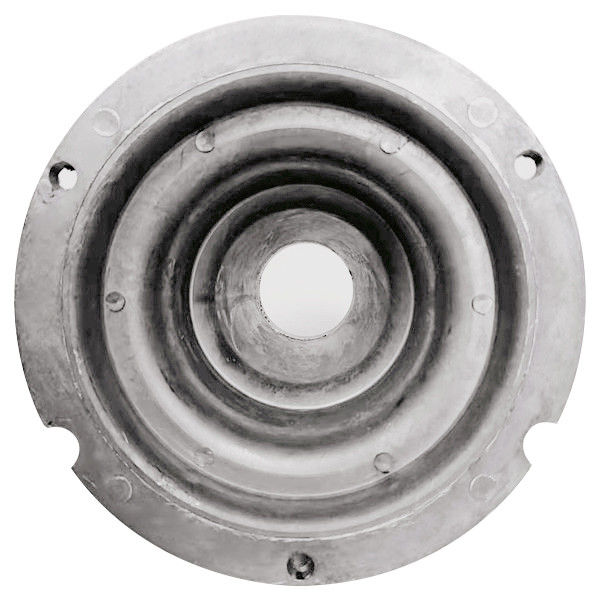

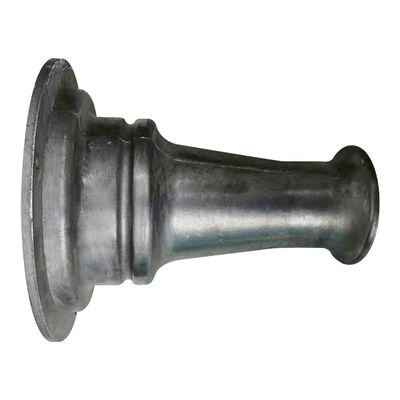

Filter Cage Aluminum Venturi 165x76x180mm Under Installation Cage Venturi
Filter cage aluminum Venturi is used for baghouse. It is a component for baghouse. The venturi combinates to the dust filter cage/bag top and CPO.
There are two ways to install this kind of Aluminum Venturi.
1) for top installation When filter bag and cage in position, insert Aluminum Venturi into bags and cages through CPO, and then twist to lock it on CPO. Clamp bag and cage to venturi. And rivet venturi to CPO.
2) for bottom installation Fasten and twist venturi to CPO, and pull packed bag and cage into venturi from the bottom. Clamp bag and cage to venturi. And rivet venturi to CPO.
| Item | 17AV003 |
| Name | Filter Cage Venturi |
| Material | Aluminum |
| Size | 165*76*180mm |
Venturi Function:
a) support the cages and bags
b) if the spray torch (top blowing) is not straight venturi can adjust the compressed air flow, so reduce the scour to dust filter bags directly to extend the life of bags
c) make sure compress air reach deeper in bags to achieve a better dust cleaning
Extra Information
| Weight | 0.6kg |
| HS Code | 8421 9990 |
| MOQ | 300pcs and discuss if less |
| Pack | Carton and Pallet |
| Leadtime | 30 day upon PO and Deposit |
Shipping
Based on volume, schedule and customer's requiry we supply different shipping as below.
