Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Wire Spider | Diameter: | 150mm |
| No. Of Vertical Wire: | 16pcs | Place Of Origin: | China |
| MOQ: | Negotiable | Shipping Date: | Negotiable |

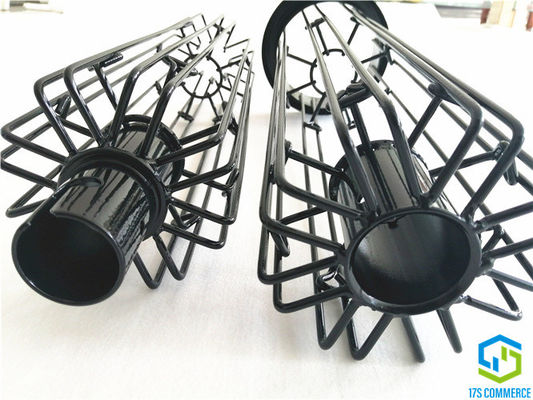

Global Joint Two Sections Spider Cage Star Cage Silicon Coating Pleat Cage 150mm Epoxy Coating
1. Specification

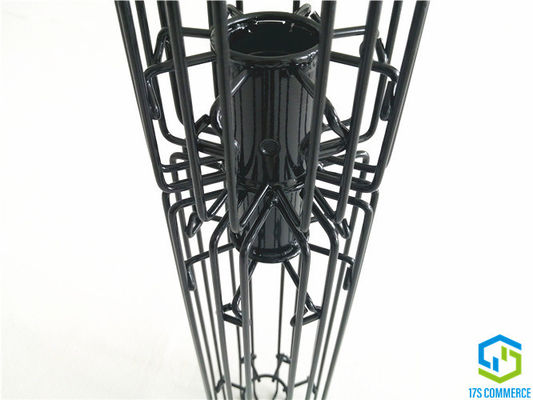

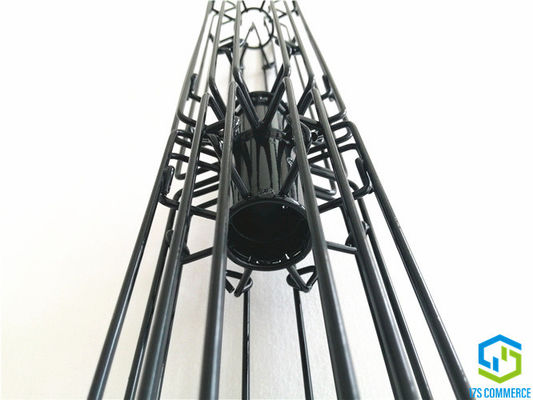

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

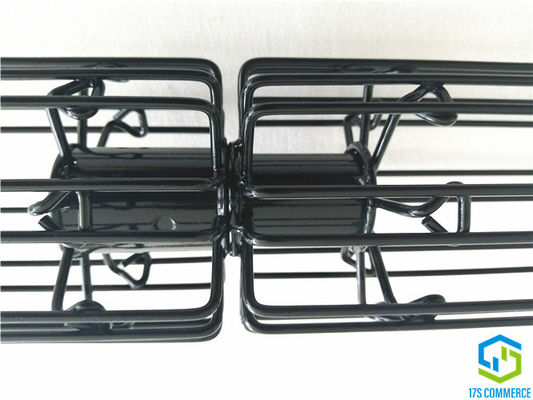

Normally cage is one section, we recommend two sections cage if cage too long or bag house top space is not enough. The joint is called globle joint or twist joint, which is easy to install and removal.
2. Detail
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 150 | mm | |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm | |

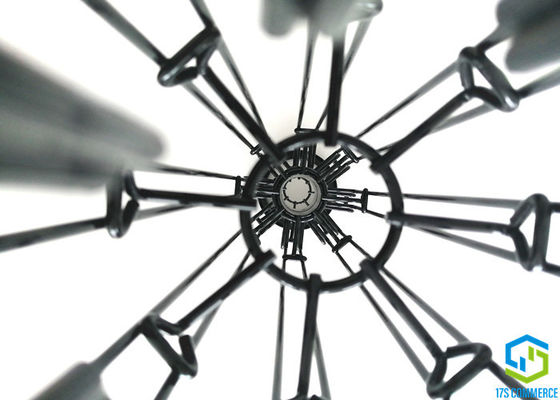

| Spider | Type | wire | |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | two sections | ||
| Joining Method | No | ||

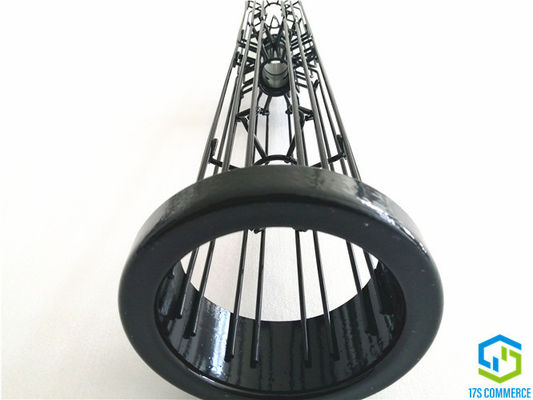

| Top Cap | Type | weld U shape top cap | |
| Size | 150/194 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | wire bent inworder | |
| Size | 150 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Applications of the star cage and bag in the bag house
| Plant | Star Bag and Cage | Application |
| Aluminium Plant | PE | electrolysis fume |
| PPS | aluminum hydroxide calcination | |
| Cement Plant | PE | cement mill, crushing macine, leather belt etc |
| PE with antistatic | coal mill | |
| P84 | kiln back end | |
| Meta aramid | kiln head | |
| Power Sation | PPS | boiler tail gas |
| Steel Plant | PE | casting house, ore bunker, sintering machine end, finished product transportation |
| Acrylic | slag differential | |
| Meta aramid | rotary furnace | |
| PPS/Acrylic | sintering machine head | |
| Chemical Plant | PTFE , Meta aramid | high temperature and corrosive confition |
| Nonferrous Metal Smelt Plant | P84 | aluminum metlting, copper furnace, gold smelt etc |
| Carbon Black Plant | PE, PE with PTFE lamination | grinder machine |
| Glass Plant | PTFE, PTFE composited P84 bag |
4. Pack of Cages
Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
