Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Wire Spider | Diameter: | 110mm |
| No. Of Vertical Wire: | 12pcs | Crate: | Steel Crate |
| Place Of Origin: | China | MOQ: | Negotiable |

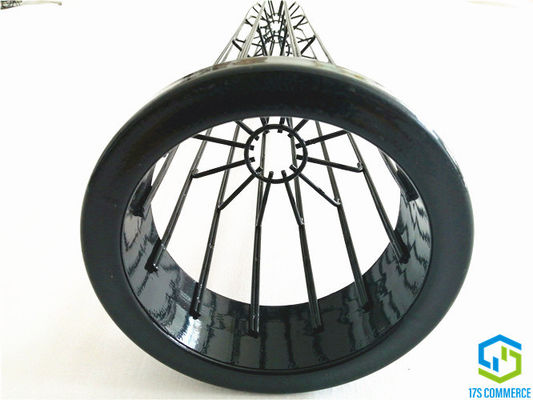

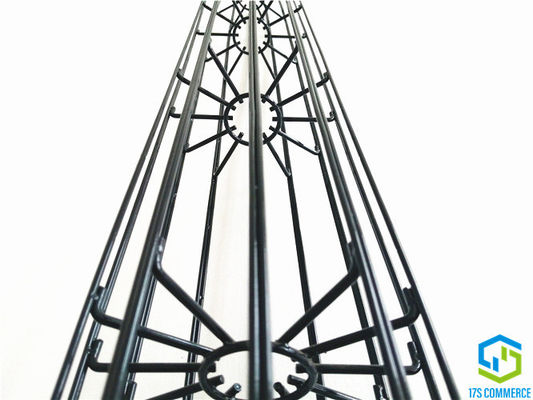

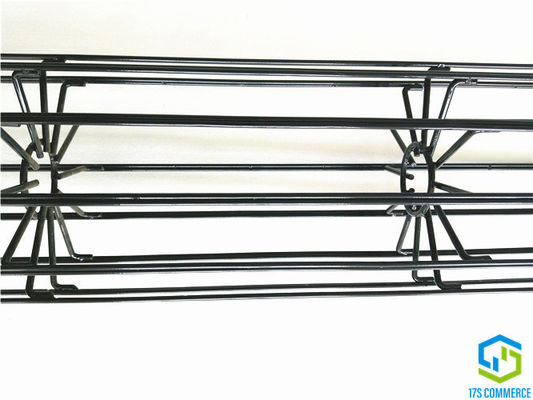

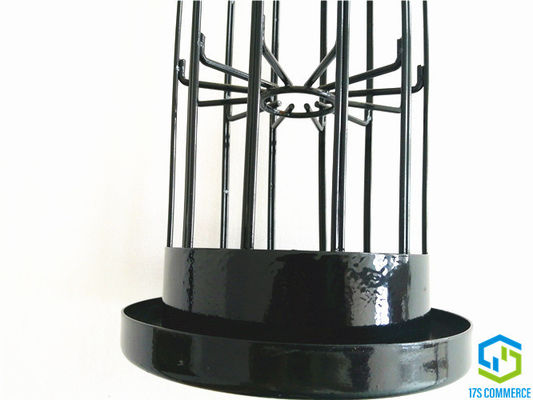

Double Wire 110mm Star Cage Silicon Coating Pleat Cage 12 Pleats Spider Cage Dust Collector Cage
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. Overview
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 12 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 110 | mm | |
| Vertical Wire | Number | 12(24) | pcs |
| Thickness | 3 | mm | |
| Spider | Type | wire |  |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | 110/148 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | press bottom cap | |
| Size | 102 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Why Choose Us
1) over ten years experience in this field
2) very strict quality control management
3) perfect feed back from customers about quality,service,shipping etc
4) we have own factory, easy control of quality, leadtime, workmanship and IP protection
5) many big and famous customers buy our products consistently
6) strong R&D team, design and develop and product ability
7) QC and QA inspection before shipping
8) 100% products exported, know customers’ requires
9) Zero complain and claim of our products till now
4. Single wire spider
It is made of single wire 4mm for pleat/star filter cage. It gives less air resistance from compressed air box, so result better dust clean and energy save.
