Venturi Cap Zinc Coating Dust Collector Filter Cage

Venturi Cap Star Cage Zinc Coating Pleat Cage Spider Cage Dust Collector Cage Extend Filter Surface Cage

1. Specification

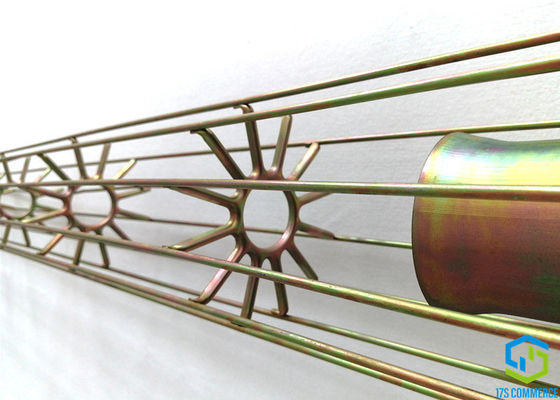

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

For more efficient cleaning, Venturi are available for all diameter cages.Venturi are made in a variety of materials including; aluminum, carbon steel, galvanized and stainless steel.

2. Overview

Style	star cage / pleat cage / spider cage
Pleats No.	8 / 12 pleats
Material	Q235 mild steel
Diameter	110,120,138,144,150		mm
Vertical Wire	Number	8 / 12	pcs
	Thickness	4	mm

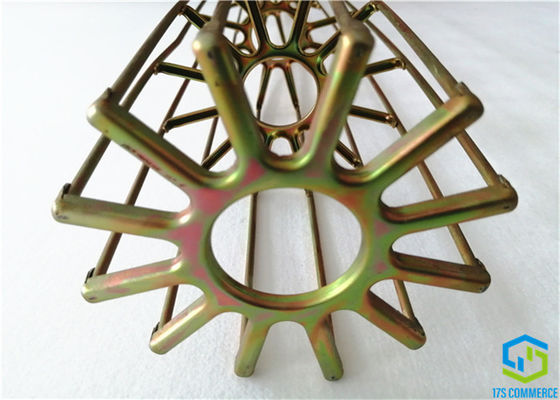

Spider	Type	wire, press
	Thickness	4 / 1.5	mm
	Distance	150-250	mm
Length	TBD		mm
Structure	one section / two sections
Joining Method	No

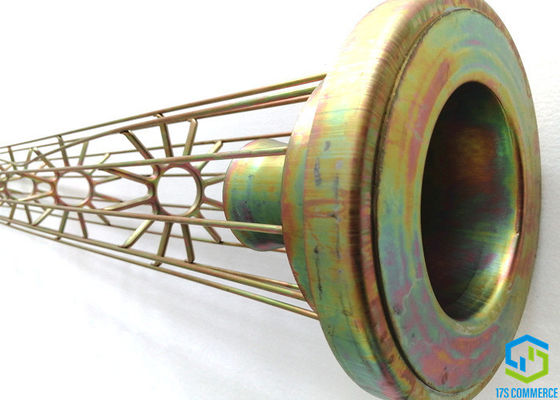

Top Cap	Type	weld top cap with venturi
	Size	TBD	mm
	Thickness	1-1.2	mm
	Fix	weld to cage
Venturi	Size	TBD	mm
	Thickness	1-1.2	mm
	Fix	weld to top cap

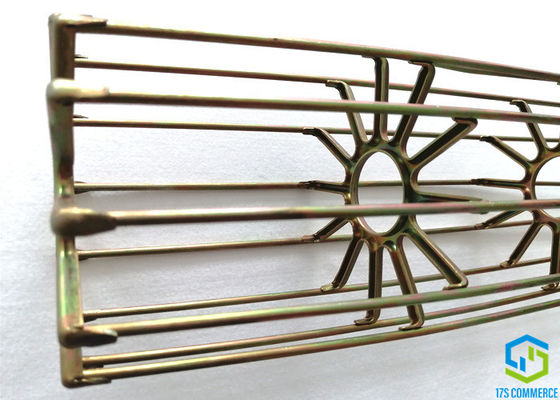

Bottom Cap	Type	press bottom cap
	Size	BTD	mm
	Thickness	1	mm
	Fix	weld to cage
Finishing	Type	zinc coating
	Thickness	30-70	um
	Color	black
Pack	steel crate

3. Why Choose Us

  1) over ten years experience in this field

  2) very strict quality control management

  3) perfect feed back from customers about quality,service,shipping etc

  4) we have own factory, easy control of quality, leadtime, workmanship and IP protection

  5) many big and famous customers buy our products consistently

  6) strong R&D team, design and develop and product ability

  7) QC and QA inspection before shipping

  8) 100% products exported, know customers’ requires

  9) Zero complain and claim of our products till now

4. Some Endusers

Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German) and so on.

5. Pack of Cages

Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
