Product Details:
|
| Name: | Airslide, Conveyor Belt | Material: | Polyester, Aramid |
|---|---|---|---|
| Manufacturer Type: | Woven | Thickness: | 4-12mm |
| Width: | Customized | Weight: | 3.5-9KG/SQM |
| Length: | 50M/Roll | Pack: | Roll With Wrap |
| HS Code: | 59100000 | Application: | Powder/Solid Transfer |
| High Light: | 12mm Airslide Conveyor Belt,Cement Transfer Airslide Conveyor Belt,Cement Transfer Powder Conveyor Airslide |
||

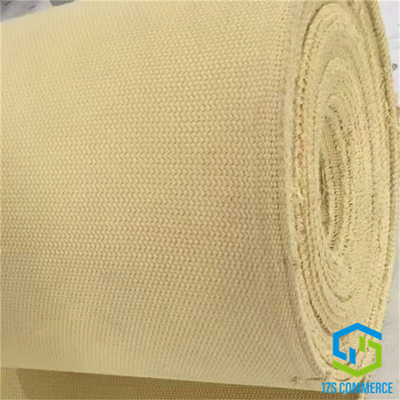

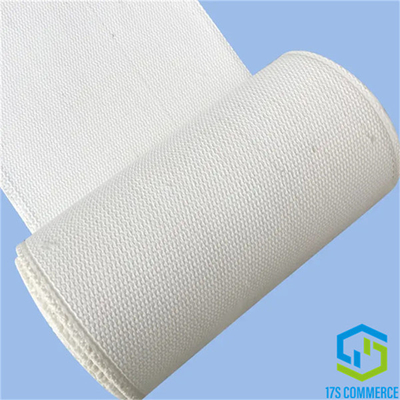

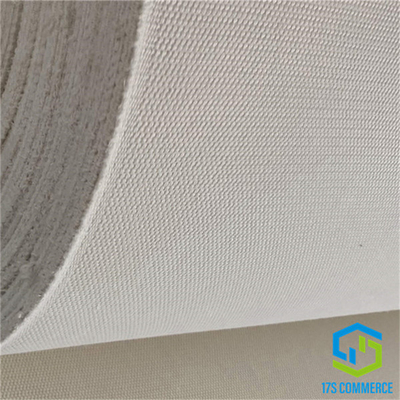

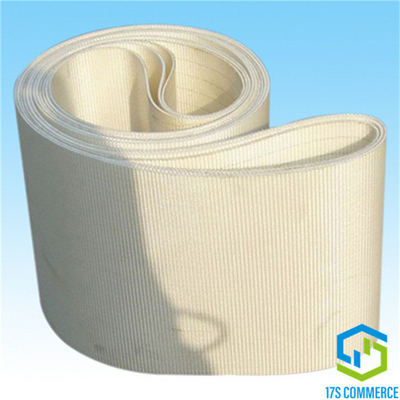

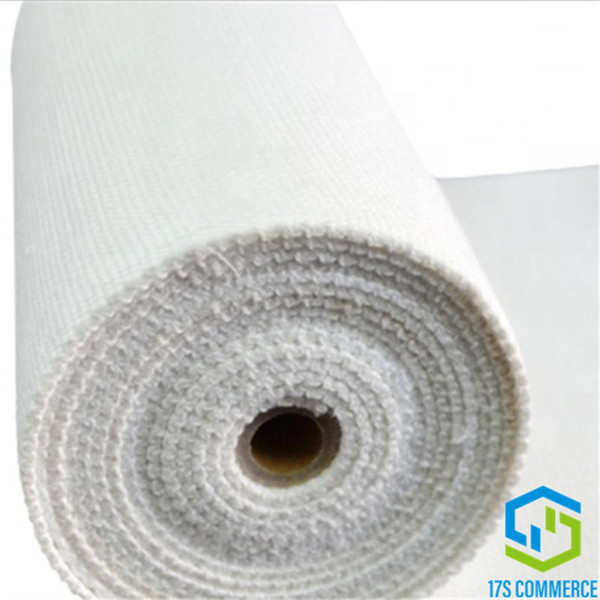

Airslide Conveyor Belt Transfer Fabric Cement Transfer Belt Powder Conveyor Airslide
Airslides are used for conveying bulk powder materials. Often used in power plants, mining and cement industries for dry powder such as carbon dust, cement, lime and fly ash. Also used in food processing for flour dust products.
Airslide media is installed within an air slide conveyor system at an incline. The incline can be kept relatively small due to fluidizing air passing through the fabric, allowing dust to flow freely through the system. This method for transporting bulk materials maintains a high flow rate over long distances, whilst preserving efficiency and a low energy consumption.

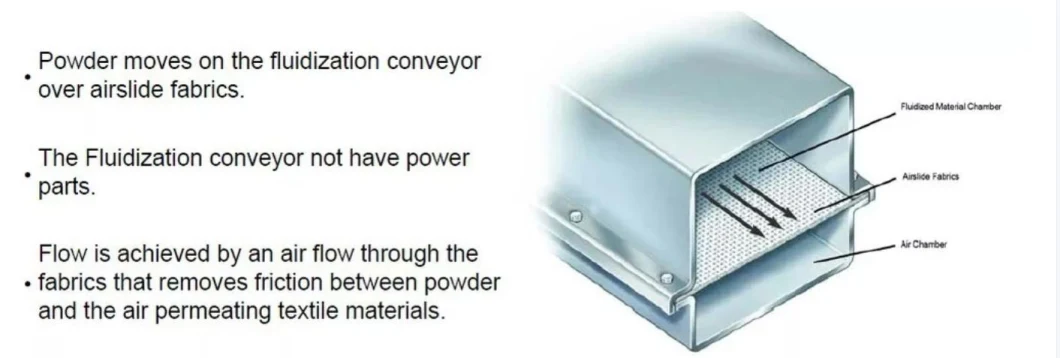

Working principle
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
Air gravity conveyors are some of the most efficient manners of conveying these bulk powders as it only requires a small amount of air and a slight incline to convey material for hundreds of feet. These systems do not have all the moving parts of a conveyor belt which makes them less expensive to operate.
Air-slide materials work well in high temperature applications as well. We offer both woven and nonwoven medias that can withstand temperatures up to 500° F continuous and 600° F peak.

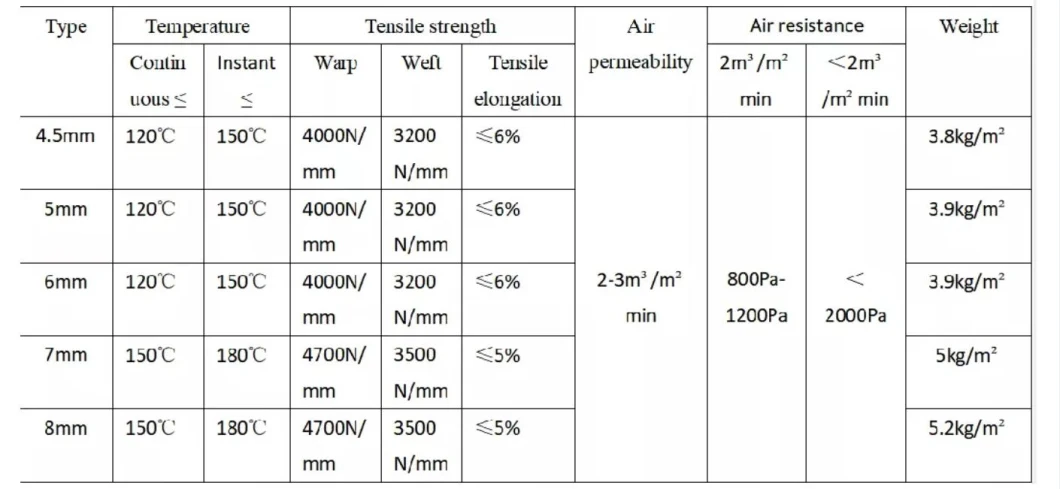

Polyester Airslide Data Sheet

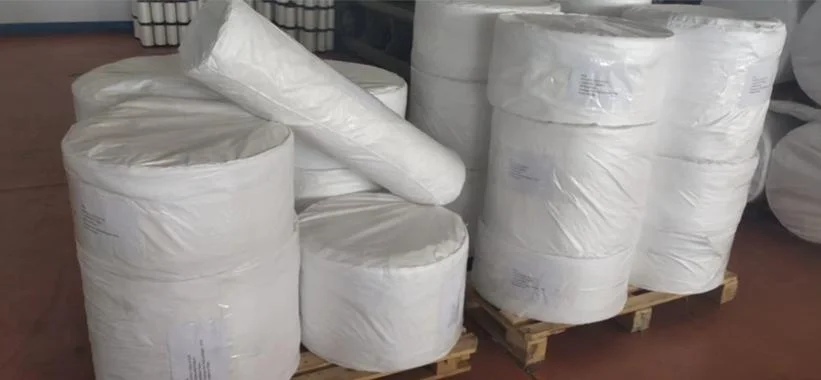

Pack
We provide all kinds of standard export packing for cargo protection. The bag filter will be fixed on the container. The filter bag and cages will be fixed in corrugated box and steel framed structure.
