Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Cataphoresis Coating |
|---|---|---|---|
| Spiders: | Punched Spider | Diameter: | 120mm |
| Pleats: | 12 Pleats | No. Of Vertical Wire: | 12pcs |
| Top Cap: | U Shape Flange Cap | Crate: | Steel Crate |
| Place Of Origin: | China | MOQ: | Negotiable |
| Shipping Date: | Negotiable | Pay Terms: | T/T L/C |
| High Light: | Star Filter Cages 120mm,12 Ray Star Filter Cages,Blast Protection filter bag cage |
||

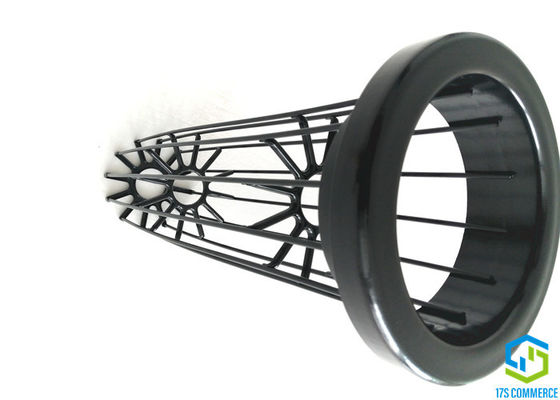

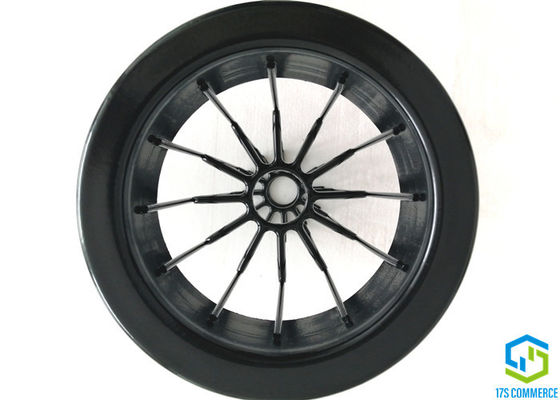

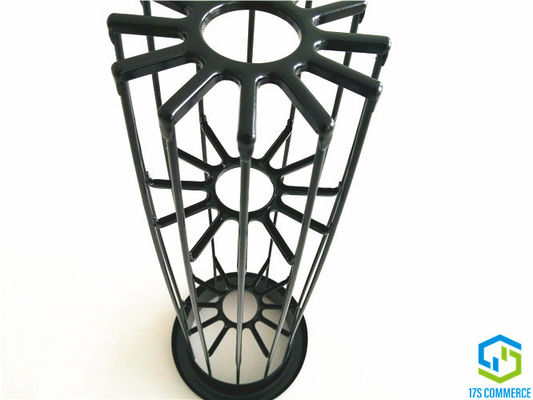

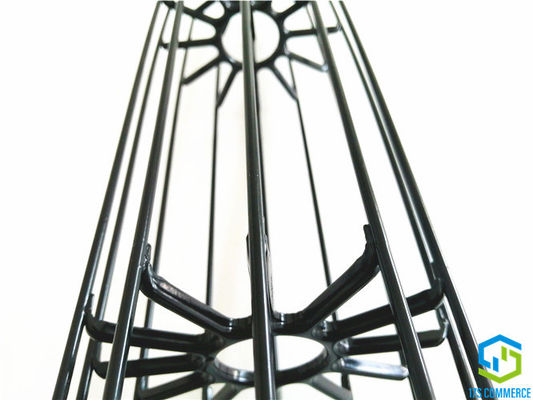

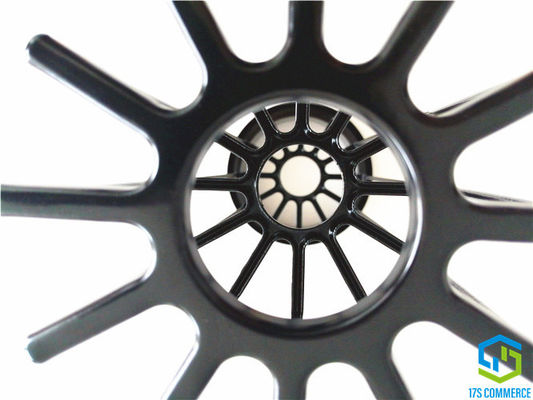

Blast Protection 12 Ray Star filter Cage Cataphoresis Coating Pleat Cage 120mm Spider Cage Dust Collect Cage
1. Specification
The filter bag support cage is combined with the vertical metal wire, the support cage, the top cover and the bottom cover, and the venturi tube. In order to reduce the contact between the filter bag and the support ring of the bag cage, we developed a star-shaped dust collector filter star/pleat bag cage; in order to increase the filtering area, we developed a pleated/star filter bag with related pleated filter bag cages.
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. Datasheet
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 12 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 120 | mm | |
| Vertical Wire | Number | 12 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | press |  |
| Thickness | 1.5 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | 120/160 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | press bottom cap | |
| Size | 112 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | cataphoresis coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 | |
| 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 | |
| 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 | |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
| 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 | |
| 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 | |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
4. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German) and so on.
5. Product flow
