Product Details:
|
Felt: | P84 | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
---|---|---|---|
Bag Diameter: | 120mm | Cage Diamter: | 110mm |
Bag Pack: | Plastic Bag/ Carton And Pallet | Cage Pack: | Steel Crate |
Application: | Bag House | Origin Of Place: | China |
Shipping: | Negotiable | Payment Terms: | Negotiable |
High Light: | 120mm Industrial Filter Bags,Industrial Filter Bags P84,baghouse P84 filter bag |

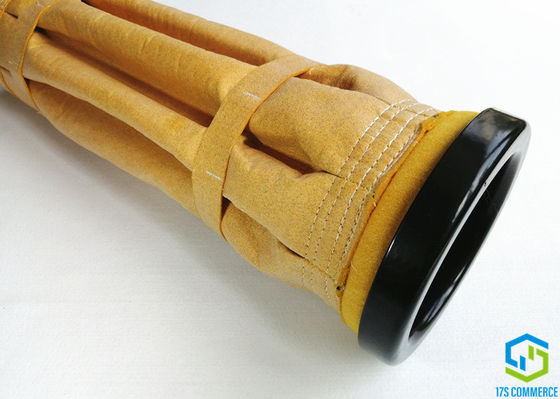

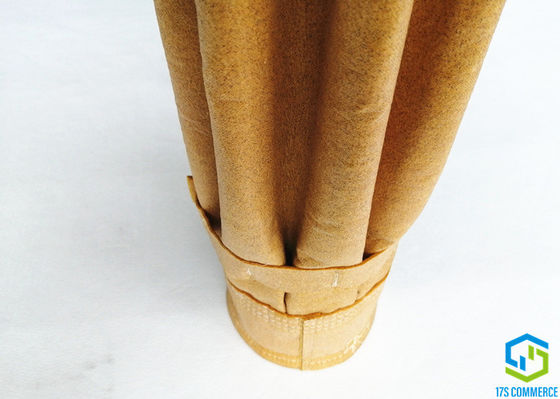

P84 Star Bag And Star Cage Production Capacity Increase Bag 120 Pleat Bag And 110 Pleat Cage
1. specification
The air-to-cloth ratio of a given filter material and filter surface, dust retention and filter cake release determine the efficiency of the fabric filter pulse jet bag shell. In this regard, the pulse jet filter bag of the prior art is limited by the perimeter of the filter bag. Increasing the size of the filter housing to increase the perimeter of the filter bag and thus the efficiency of the filter often results in an expensive and bulky filter housing.Star filter bags (Star bags) and Star filter cages (Star Cages) are special design to extend the filter surface. They are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. They are also for new bag house with high level and strict emission requirement.The pleat/star bag has the advantage of either taking the same filter surface of conventional cylindrical filter bags and reducing the diameter (thus reducing the spaced need for filter elements) or taking the diameter of standard filter bags and increasing the filter surface available. The pleat/star filter bag can be made out of any type of filter material, and can be used from normal temperature conditions going up to 280° C. or 530° F.
2. The Match of Star bags and Cages

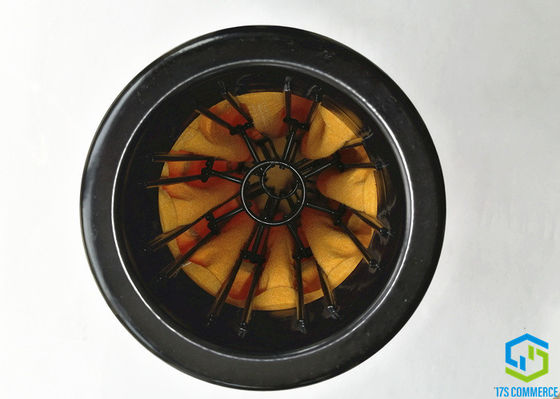

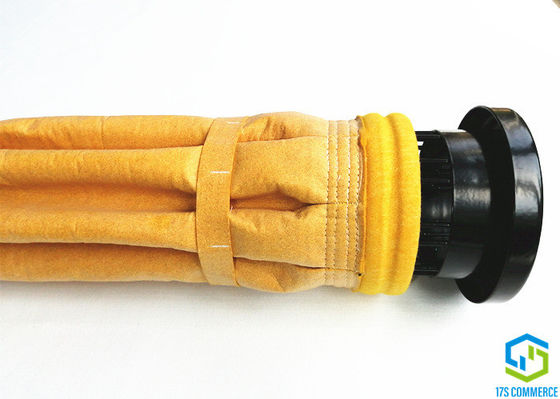

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
cage | bag | |||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 | |||
12 pleats | 12 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
10 pleats | 10 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 |
3. Features:
P84 polyimide needlefelts are excellent high temperature filter media in terms of performance, generally surpassing the other standard media with the exception of PTFE.
• Excellent steady under high temperature and resistance to acid
• P84 can operate continuously, under practical and low acid working conditions, at temperatures up to 500°F(260 °C).
• High filtration efficiency, high tensile strength.
• The complex cross sectional shapes create 30-90% more collection surface area when compared to round or oval shaped fibers.
• Low back washing pressure, maximun flexibility
• The unique tri-lobal fiber structure of P84 provides customers with high efficiency filtration, low pressure drop, and reduced cleaning energy.
• Excellent dust cake release
• P84 has irregular, tri-lobal fibers that provide better collection efficiencies and enhanced dust cake release properties.
4. Applications
• Incinerator plants
• Cement Kiln gas
• Low acid coal fired boilers
• Asphalt/hot mix plants flue gas
• Minerals processing
• Soil remediation facilities
