Product Details:
|
| Material: | Stainless Steel,Carbon Steel, Galvanized Wire, | Finish Treatment: | Silicon Coating, Zinc Coating, Electrophoresis Coating |
|---|---|---|---|
| Spiders: | Various Options | Diameter: | 110mm, 120mm, 138mm, 144mm, 150mm And Customized |
| Pleats: | 8 Pleats, 10 Pleats, 12 Pleats | Top Cap: | Ordinary Cap, Venturi Top, Mikopul Cap, Hook Top, Ring Top, ETC |
| Joint: | Yes, "Global Joint", Insert And Roll |

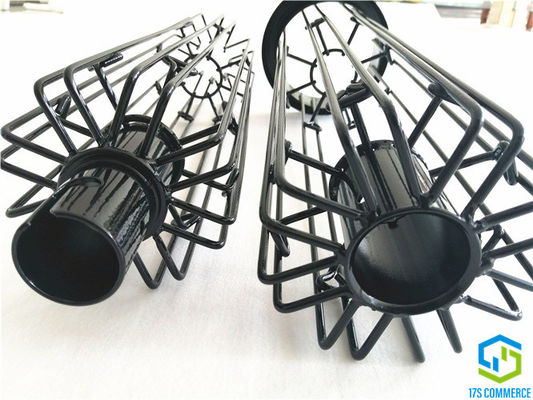

Star Filter Cage Pleat Cage Spider Cage Filter Area Extend Cage Bag House Dust Collector Star Cage
1. Specification
Cages are frameworks for bags, which is the bone of bags and supports the bags running. Both bags and cages are the most important element for bag houses. Star cages are special designed and made for Star bags. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Capacity: 500 per day (star filter cage only, ordinary dust cage excludes)
Star Cage Style: 8 and 10 and 12 pleats star cages
construction of Star cages
| Pleats | Vertical Wire QTY | Diameter of Wire | Spider | Top Cap | Bottom Cap |
| 8 | 16 | 4 / 3.5 | wire / pressing | optional | wire bent |
| 12 | 12 / 24 | 4 / 3 | pressing / wire | optional | weld bottom cap |
| 10 | 10 | 4 | wire | optional | wire bent |
Optional Material: carbon steel, galvanized wire, stainless steel
Star Cage Standard Diameter: star cage diameters are 110mm, 120mm, 138mm, 144mm, 150mm and customized
Star Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating

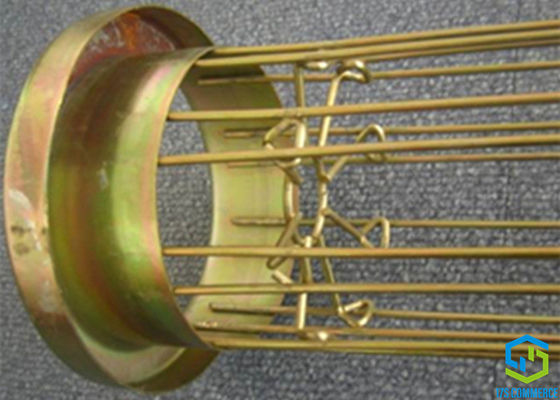

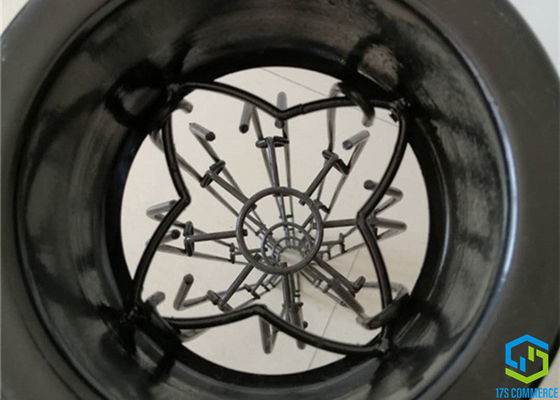

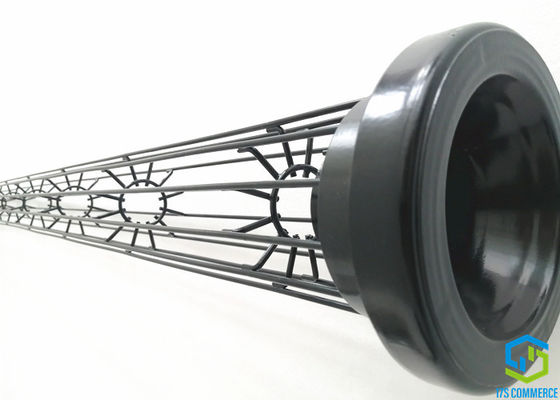

Star cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires bent (hook) top, enlarged top ring etc

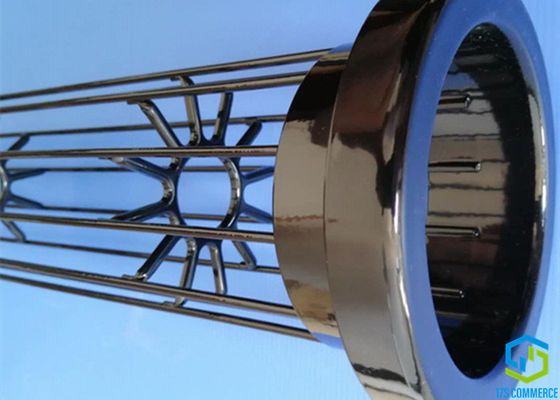

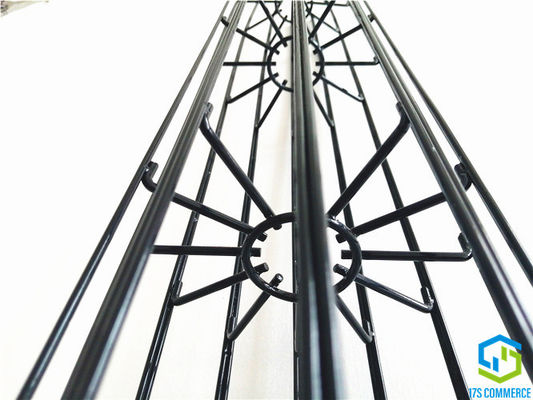

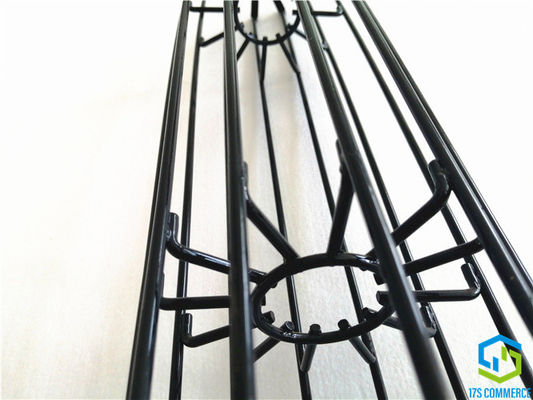

Star Cage Spider: we have different spiders for kinds of star cages
Star cage joint: if cages were too long or top space of bag house was not enough, we suggest make cages in sections with joint like below
Pack

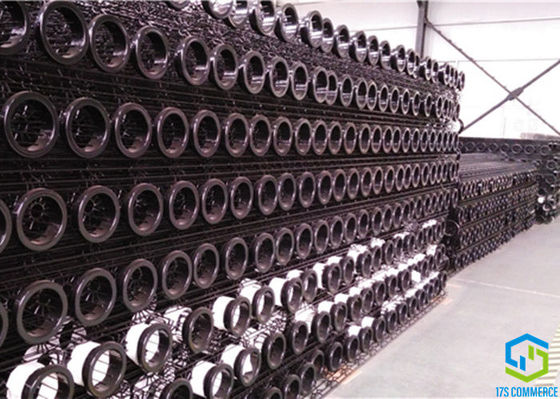

Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
2. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Pleats | Wire QTY | Diameter (mm) | Remark | |||
| cage | bag | |||||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
3. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (21 Century Aluminium, Iceland), Trimet Aluminium SE (German) and so on.
