Product Details:
|
| Material: | Carbon Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Feature: | Anti-corrosion | Diameter: | Customized |
| Vertical Wires No.: | 8 To 24 PCS | Top Cap: | Integrated Venturi Top Cap |
| Vertical Wire Thickness: | 3-4mm | ||
| Highlight: | Anti Corrosion filter bag cages and venturi,OEM filter bag cages and venturi,Carbon Steel bag house cages |
||

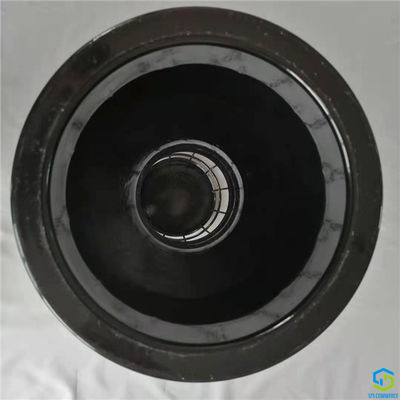

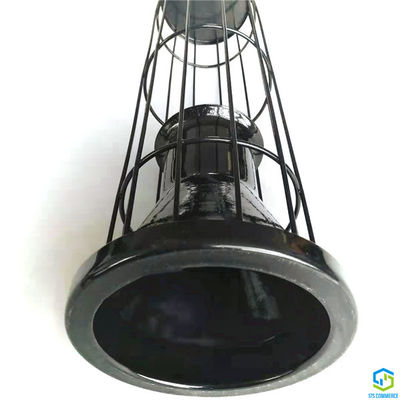

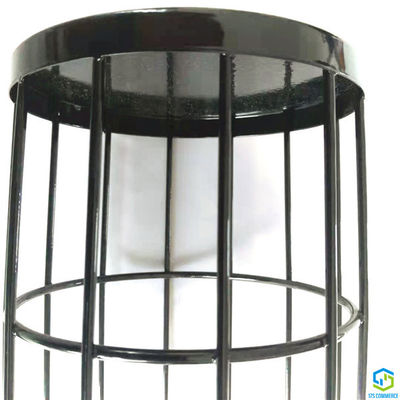

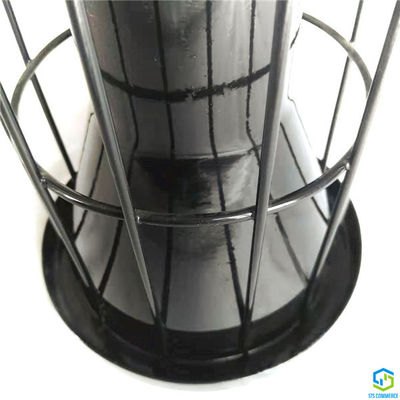

Integrated Venturi Top Cap Dust Filter Cage Silicon Coating Round Filter Cage Anti-corrosion Coating
Feature
| Style | round filter cage | ||
| Item | 17SRC005 | ||
| Material | Q235 wild steel | ||
| Diameter | 90-250 | mm | |
| Vertical / Longitudinal Wire | Number | 8-24 | pcs |
| Thickness | 3-5 | mm | |
| Support / Latitudinal Ring | Type | round | |
| Thickness | 3.5-6 | mm | |
| Distance | 150-350 | mm | |
| Length | TBD | mm | |
| Structure | one section or sections | ||
| Joining Method | per requested | ||
| Top Cap | Type | integrated top cap | |
| Size | per cage size | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | integrated venturi | mm |
| Thickness | 1-1.2 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | punch plate | |
| Size | per cage diameter | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
Applications
