Product Details:
|
| Material: | Carbon Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Venturi: | Blind / Window Shades | Diameter: | Customized |
| Vertical Wires No.: | 8 To 24 PCS | Top Cap: | Weld Venturi And Top Cap |
| Vertical Wire Thickness: | 3-4mm | ||
| Highlight: | Q235 filter cage venturi,Window Shades filter cage venturi,bag filter cage Louver Top Cap |
||
Silicon Coating Filter Cage Window Shades Venturi Cage Louver Top Cap Dust Filter Cage
Property
| Style | silicon coating round filter cage | ||
| Item | 17SRC009 | ||
| Material | Q235 wild steel | ||
| Diameter | 90-250 | mm | |
| Vertical / Longitudinal Wire | Number | 8-24 | pcs |
| Thickness | 3-5 | mm | |
| Support / Latitudinal Ring | Type | round | |
| Thickness | 3.5-6 | mm | |
| Distance | 150-350 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | no | ||
| Top Cap | Type | U shape top cap | |
| Size | per cage size | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | per cage size | mm |
| Thickness | 1-1.2 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | punch plate | |
| Size | per cage diameter | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | silicon coating | |
| Thickness | 80-140 | um | |
| Color | black | ||
| Pack | steel crate | ||

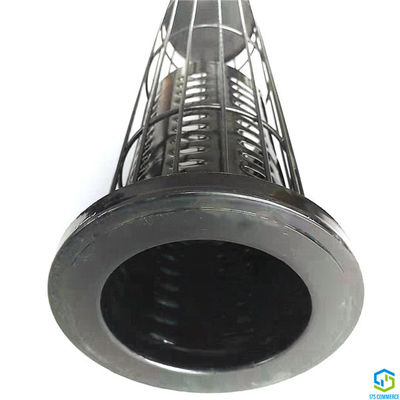

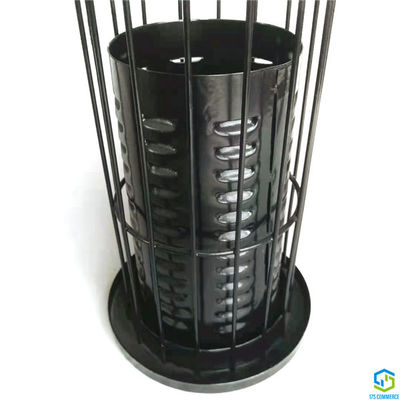

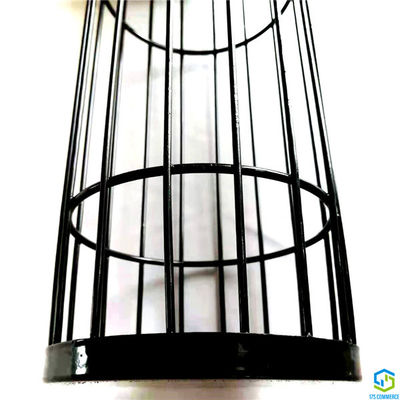

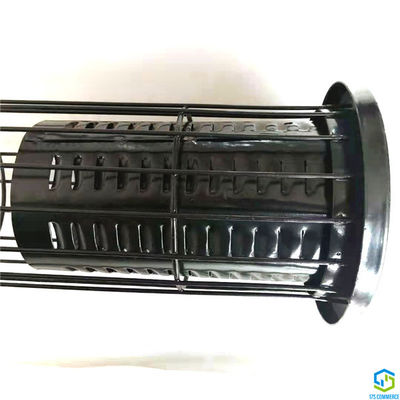

Product show
