Product Details:
|
| Name: | Star / Pleat Bag, Extend Filter Surface Bag | Felt: | PPS |
|---|---|---|---|
| Diameter: | 160mm | No. Of Pleats: | 8 Pleats |
| Head: | Seal Cuff | Metal Hoop: | 304 Stainless Steel |
| Bottom: | Two Layers | Length: | Customized |
| High Light: | PPS Pleated Filter Bags,160mm Pleated Filter Bags,ISO PPS fabric filter bags |
||

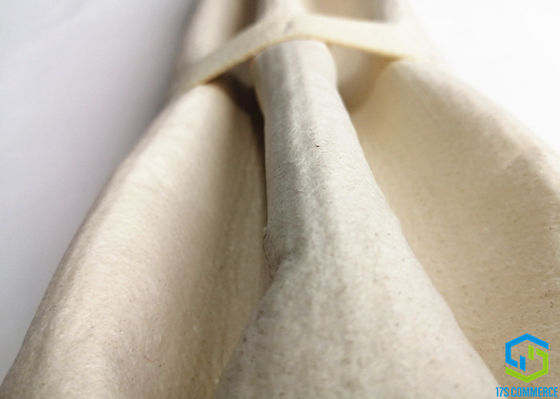

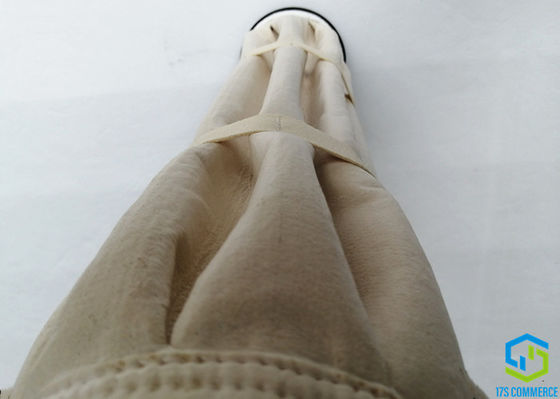

PPS Star Filter Bag Pleated Bag 160mm Extended Filter Surface Bag
Description
The pleated/star-shaped filter bag, as the name implies, is a pleated filter bag. When selecting the correct pleated/star-shaped filter bag, the number of folds, the depth of the folds, the choice of filter media, the coated star/pleated cage, and the cleaning system must be considered.Upgrading existing baghouses to increase capacity has been a major success story for pleated/star filter bag. New baghouses designed around the pleated/star filter bag save space as well as cost with reduced operating costs and downtime. Pleated/star filter bags increase filtration surface area up to 140%. Custom sizes can be made as required to replace existing standard bag and cage.
Characteristics
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8 pleats | ||
| Material | PPS | ||
| Diameter | 160 | mm | |
| Length | TBD | mm | |

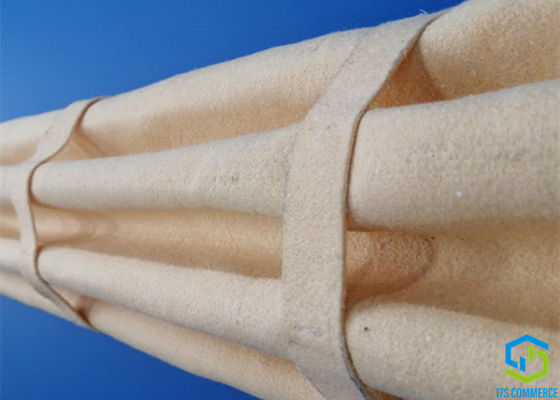

| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 160 | mm |

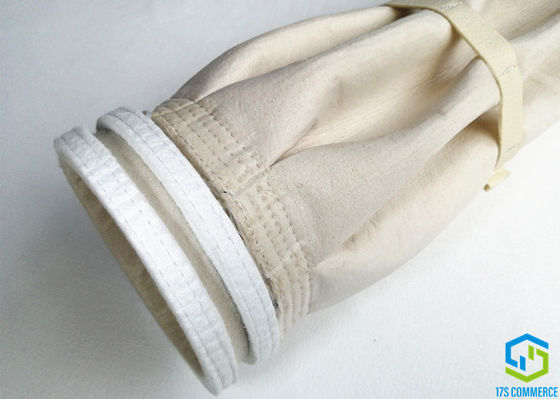

| Cuff | Type | seal cuff | |
| Width | 10-12mm | ||
| Thickness | 8-10mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 160 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface wxpanded (%)
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 |
Shipping of bags
We put bag into carton firstly and then on pallet, in order to suit long distance trasportation and product protection we use wrapping film to cover pallet. Normally shipping by sea, we can ship by air if urgent needed. for samples shipping courier is the best choice.
