Product Details:
|
| Felt: | Acrylic | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
|---|---|---|---|
| Bag Diameter: | 120mm | Cage Diamter: | 110mm |
| Bag Pack: | Plastic Bag/ Carton And Pallet | Cage Pack: | Steel Crate |
| Application: | Bag House | Origin Of Place: | China |
| Shipping: | Negotiable | Payment Terms: | Negotiable |
| High Light: | 120mm Industrial Filter Bags,Acrylic Industrial Filter Bags,pleated dust collection bag |
||

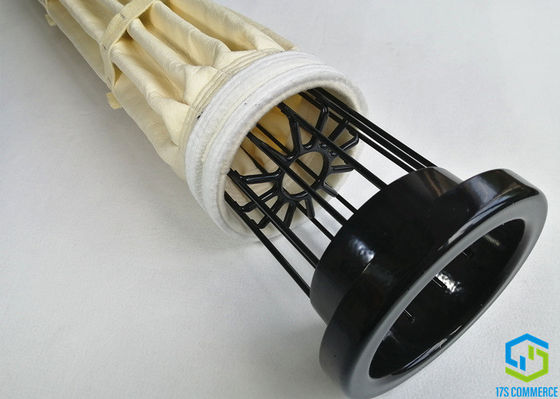

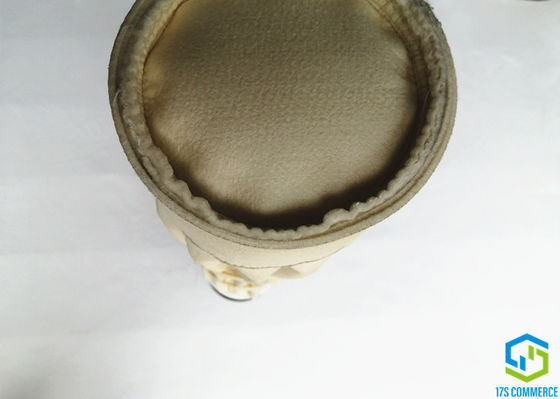

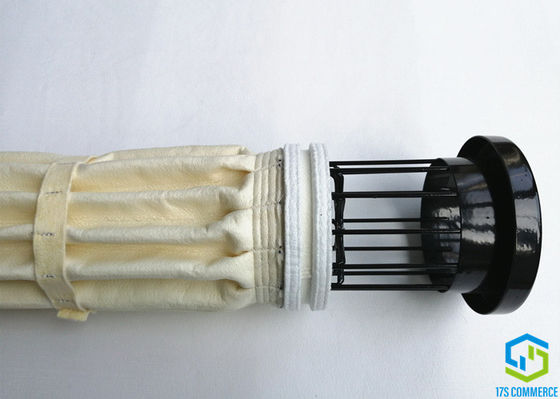

Acrylic Star Bag And Star Cage Production Capacity Increase Bag 120 Pleat Bag And 110 Pleat Cage
1. specification
Star filter bags (Star bags) and Star filter cages (Star Cages) are special design to extend the filter surface. They are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. They are also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. The Match of Star bags and Cages

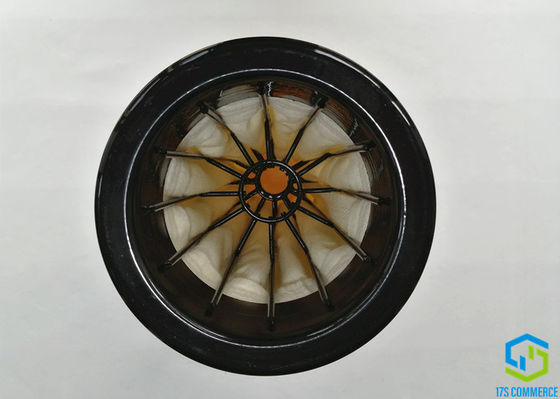

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
3. Features:
Normally in filtration acrylic refers to homopolymer acrylic which is essentially made from 100% of acrylonitrile. Homopolymer acrylic needle felt and filter bags for industrial filtration. This kind of needle felt is with good ability of acid and alkali resistance, anti-oxidation, hydrolysis resistance. It suits middle temperature and high acid, alkali chroma environment. It is widely used in metallurgy, chemical, building material, electric power station, mechanism industry, petroleum, medicine, printing and dyeing, food and beverage, and other industries to filter gas and recycle material.
• High mechanical characteristics
• Excellent resistance to hydrolysis
• Optimal heat stability both in dry and wet conditions
• Optimal resistance to chemical agents
• Extraordinary resistance to light, weathering, mildew and bacteria
4. Applications
• Power Generation
• Municipal Solid Waste Boilers and Waste incinerator
• Cement
• Limestone
• Electrolysis and other Specialty membranes
• Asphalt
• Iron and non ferrous Metal Smelting Industry
