Product Details:
|
Felt Material: | PPS | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
---|---|---|---|
Bag Diameter: | 150mm | Cage Diameter: | 138mm |
Bag Length: | TBD | Cage Length: | TBD |
Delivery Date: | Negotiable | Origin Of Place: | China |
Price: | Negotiable | Payment Terms: | Negotiable |
High Light: | PPS Industrial Filter Bags,150mm Industrial Filter Bags,ODM PPS Filter Bag |

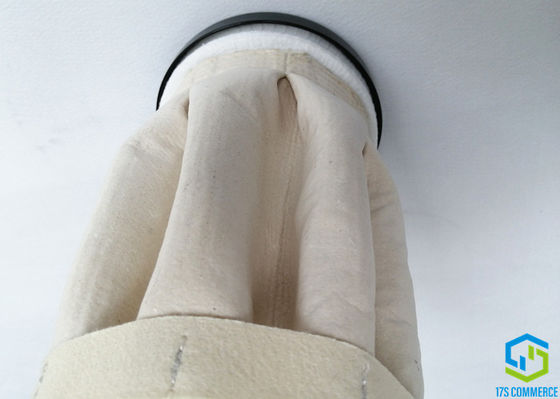

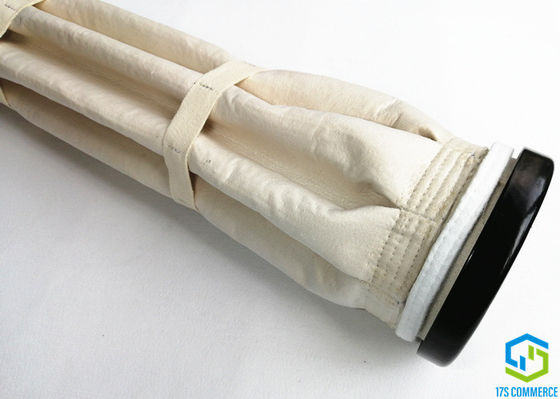

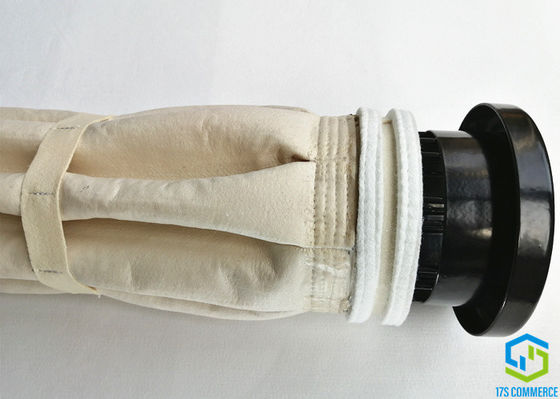

PPS Star Bag And Star Cage Energy Consumption And Maintenance Cost Save Bag 150 Pleat Bag And 138 Pleat Cage
1. The Match of Star bags and Cages
Star filter bags (Star bags) is named pleat bag, extend filter surface bag too. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes.The filter pleat/star bags are open on the top and closed on the bottom. The bottom can be closed in various ways --tied-off, with metal clamps, with folds sewn flat, inserting a bottom circle or other methods. The stop of the star/pleat bag is not star-shaped but cylindrical, meaning that it is finished off, as desired, as conventional filter bags, with snap band rings with double-beaded gasketing, felt strips, rings or other conventional installation methods. The open top of star/pleat bag can therefore be made to fit any standard cell plate and gasketing size. The filter star/pleat bag material applicable is many fold and may be needled felt, non-woven, woven material, warp-knitted, circular-knitted fabric also out of micro-filament yarn, fiberglass and/or metal fabrics. The length and diameter of the filter pleat/star bag is variable in accordance with the needs in line with the filter housing dimensions.

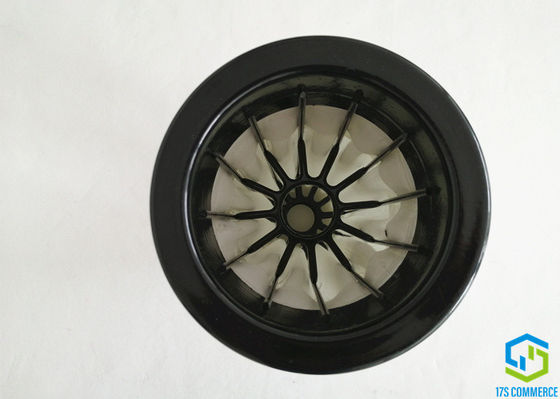

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
cage | bag | |||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 | |||
12 pleats | 12 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
10 pleats | 10 | 110 | 120 | 4mm vertical wires |
120 | 130 | |||
138 | 150 | |||
144 | 155 | |||
150 | 160 |
2. How to choose star filter bags
Main features of the performance of star bags
Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
Continuous Dry Heat Operation | 94℃ | 135℃ | 135℃ | 190℃ | 204℃ | 240℃ | 260℃ | 260℃ | |
Continuous Moist Heat Operation | 94℃ | 94℃ | 125℃ | 190℃ | 177℃ | 195℃ | 260℃ | 260℃ | |
Max Short Term Dry Heat | 107℃ | 150℃ | 150℃ | 232℃ | 240℃ | 260℃ | 290℃ 4 | 290℃ | |
Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
Moisture Regain (20℃ and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
Supports Combustion | yes | yes | yes | no | no | no | no | no | |
Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good |
1)Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82℃
2)PPS is attacked by strong oxidising agents (O2, NOx, Br2) – the presence of which, lower its recommended operating temperature
3)P84 is attacked by Sox in power station applications
4)PTFE will elongate under load at elevated temperature
3. Pack of Star/ pleat Cages
4. Why Choose Us / Our Adcantage
