Product Details:
|
| Felt Material: | Acrylic | Cage Material: | Carbon Steel, Galvanized Wire, Stainless Steel |
|---|---|---|---|
| Bag Diameter: | 150mm | Cage Diameter: | 138mm |
| Bag Length: | TBD | Cage Length: | TBD |
| Delivery Date: | Negotiable | Origin Of Place: | China |
| Price: | Negotiable | Payment Terms: | Negotiable |
| Highlight: | Industrial Filter Bags 150mm,OEM Industrial Filter Bags,150mm acrylic filter bag |
||

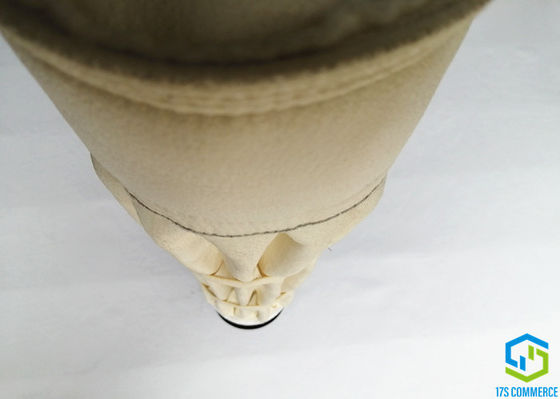

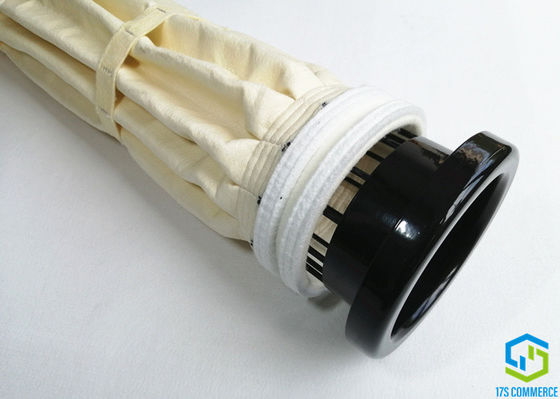

Acrylic Star Bag And Star Cage Energy Consumption And Maintenance Cost Reduce Bag 150 Pleat Bag And 138 Pleat Cage

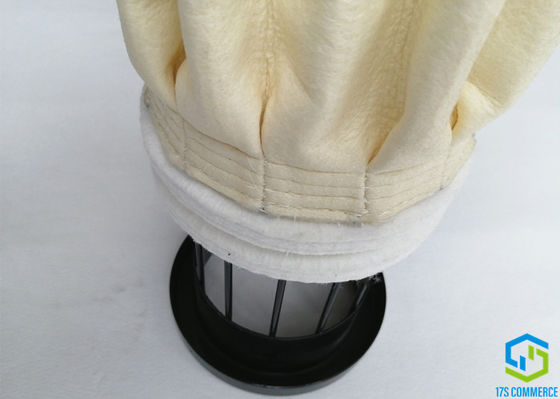

1. The Match of Star bags and Cages
Pleated/star bag filters are specifically designed to maximize the surface area of the filter, offering a longer lifespan and minimizing change-outs while still being a cost-effective option for bag filtration applications.

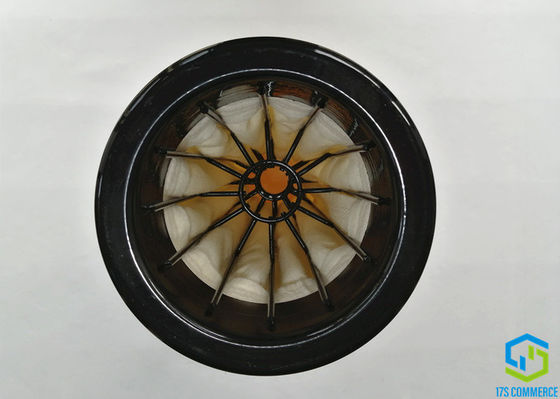

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 |
|||
2. How to choose star filter bags
Main features of the performance of star bags
| Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
| Continuous Dry Heat Operation | 94℃ | 135℃ | 135℃ | 190℃ | 204℃ | 240℃ | 260℃ | 260℃ | |
| Continuous Moist Heat Operation | 94℃ | 94℃ | 125℃ | 190℃ | 177℃ | 195℃ | 260℃ | 260℃ | |
| Max Short Term Dry Heat | 107℃ | 150℃ | 150℃ | 232℃ | 240℃ | 260℃ | 290℃ 4 | 290℃ | |
| Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
| Moisture Regain (20℃ and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
| Supports Combustion | yes | yes | yes | no | no | no | no | no | |
| Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
| Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
| Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
| Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
| Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
| Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good | |
1)Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82℃
2)PPS is attacked by strong oxidising agents (O2, NOx, Br2) – the presence of which, lower its recommended operating temperature
3)P84 is attacked by Sox in power station applications
4)PTFE will elongate under load at elevated temperature
3. Pack of Star/ pleat Cages
4. Why Choose Us / Our Adcantage
