OEM Removable Top Cap 138mm Baghouse Filter Cages

Removable Top Cap Pleat Cage 138mm Star Filter Cage Silicon Coating Mild Steel Spider Cage Bag House Bag Cage

1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

Cages often get exposed to hot temperatures, and they suffer contraction and expansion. Cages coated with silicone have a flexible membrane that enables them to maintain their quality and strength despite expanding and contracting due to temperature last and change. The coating also allows it to withstand dirt particles and chemistry gas blown.

2. Overview

Style	star cage / pleat cage / spider cage
Pleats No.	8 pleats
Material	Q235 mild steel
Diameter	138		mm
Vertical Wire	Number	16	pcs
	Thickness	4	mm

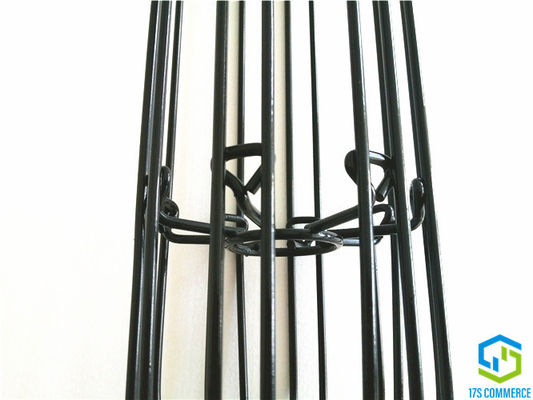

Spider	Type	wire
	Thickness	4	mm
	Distance	150-250	mm
Length	TBD		mm
Structure	one section
Joining Method	No

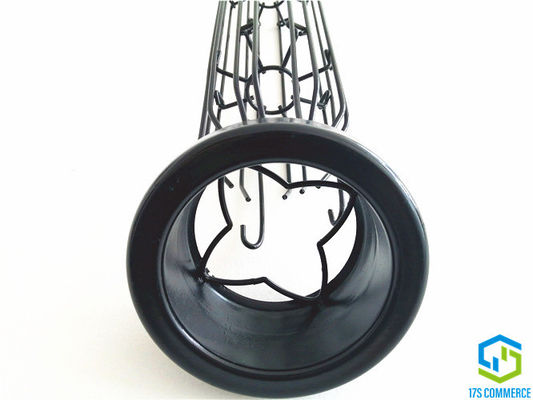

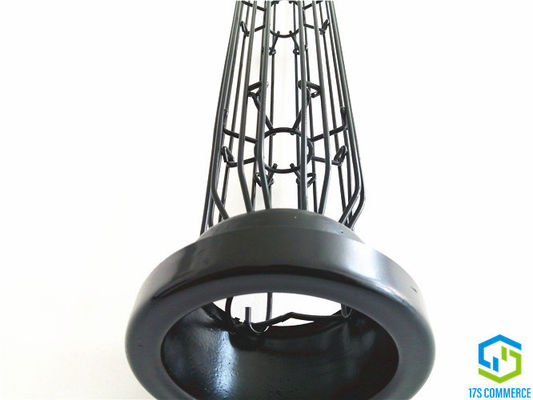

Top Cap	Type	weld U shape top cap
	Size	138/185	mm
	Thickness	1-1.2	mm
	Fix	weld to cage
Venturi	Size	no	mm
	Thickness	1	mm
	Fix	weld to top cap

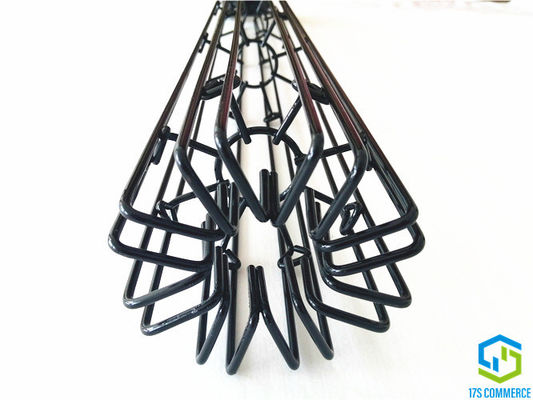

Bottom Cap	Type	wire bent inworder
	Size	138	mm
	Thickness	no	mm
	Fix	no
Finishing	Type	silicon coating
	Thickness	90-140	um
	Color	black
Pack	steel crate

3. Why Choose Us

  1) over ten years experience in this field

  2) very strict quality control management

  3) perfect feed back from customers about quality,service,shipping etc

  4) we have own factory, easy control of quality, leadtime, workmanship and IP protection

  5) many big and famous customers buy our products consistently

  6) strong R&D team, design and develop and product ability

  7) QC and QA inspection before shipping

  8) 100% products exported, know customers’ requires

  9) Zero complain and claim of our products till now

4. Pack of Cages

Our standard pack for cage is steel crate which is made of tube steel and laid steel plate at the crate bottom. The crate width does not excess 1140mm, so crate can be loaded in two pieces per the width of container, and the height of crate is subjected to the cage quantity and type of container. We seal the opening when cage put in. This kind of crate design can well protect cage and endure a long distance and time transportion.
