Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Wire Spider | Diameter: | 150mm |
| Pleats: | 8 Pleats | Top Cap: | Ordinary Cap |
| Crate: | Steel Crate | Place Of Origin: | China |
| High Light: | Mild Steel Star Filter Cages,Q235 Star Filter Cages,star cages for filter bags |
||
Removable Top Cap Star Cage Silicon Coating Pleat Cage 150mm Spider Cage Mild Steel Dust Collector Cage
1. Specification

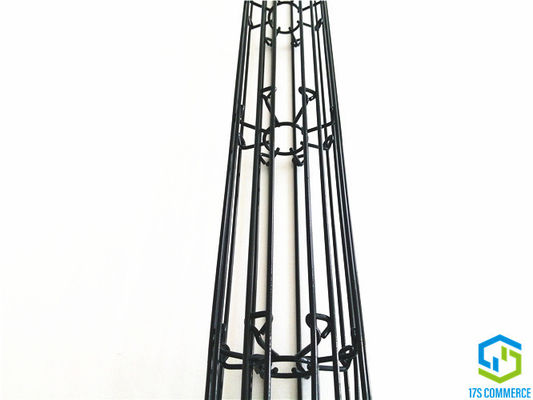

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

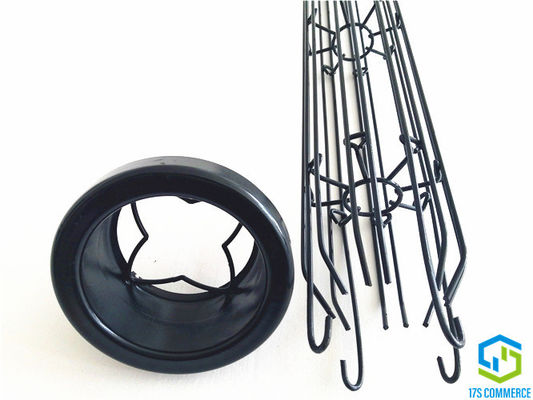

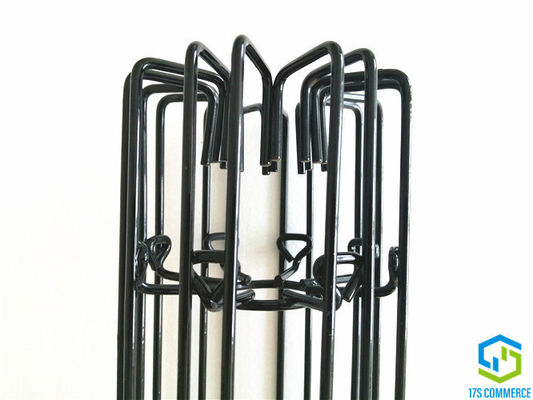

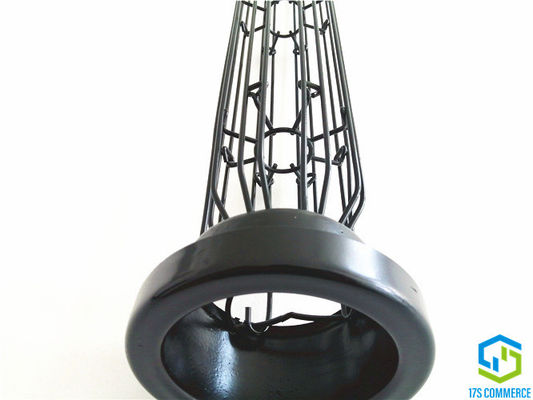

Removable top (hanging) cap star cage is a special design to fit hanging/removal top cap. There are four wires bent on the top of cage, which are the shape of hook to hang into removable top cap, the balance of wires are a little shorter and bent inside like below picture. The installation of removable (hanging) top cap star cage is 1) put star/pleat bag into cell plate opening; 2) instert star/pleat cage body into the bag; 3) carry removable top cap close to star/pleat cage and hang together; 4) put cage back to the bag and make suer top cap cover the top of bag cuff
2. Datasheet
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 150 | mm | |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | wire | |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | 150/194 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | wire bent inworder | |
| Size | 150 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Pleats | Wire QTY | Diameter (mm) | Remark | |||
| cage | bag | |||||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
4. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (21 Century Aluminium, Iceland), Trimet Aluminium SE (German) and so on.
