Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Double Wire Spider | Diameter: | 138mm |
| No. Of Vertical Wire: | 12pcs | Crate: | Steel Crate |
| Place Of Origin: | China | MOQ: | Negotiable |
Double Wire Spider 138mm Star Filter Cage Silicon Coating Pleat Cage 12 Pleats Spider Cage Dust Collect Cage
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Star cages often get exposed to hot temperatures, and they suffer contraction and expansion. Cages coated with silicone have a flexible membrane that enables them to maintain their quality and strength despite expanding and contracting due to temperature last and change. The coating also allows it to withstand dirt particles and chemistry gas blown.
2. Overview
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 138 | mm | |
| Vertical Wire | Number | 12 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | double wire |  |
| Thickness | 2.7 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | 138/185 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | press bottom cap | |
| Size | 130 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Why Choose Us
1) over ten years experience in this field
2) very strict quality control management
3) perfect feed back from customers about quality,service,shipping etc
4) we have own factory, easy control of quality, leadtime, workmanship and IP protection
5) many big and famous customers buy our products consistently
6) strong R&D team, design and develop and product ability
7) QC and QA inspection before shipping
8) 100% products exported, know customers’ requires
9) Zero complain and claim of our products till now
4. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German) and so on.

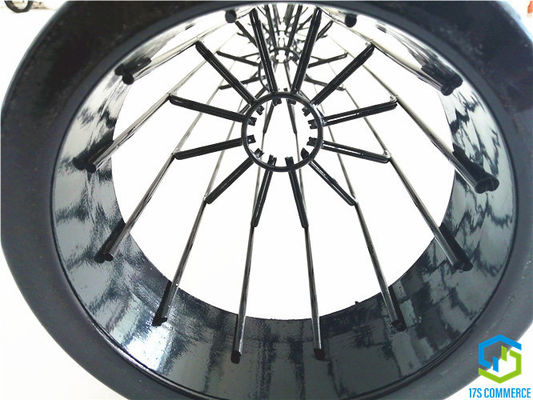

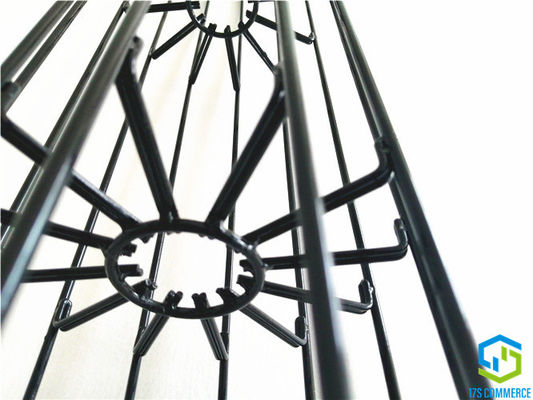

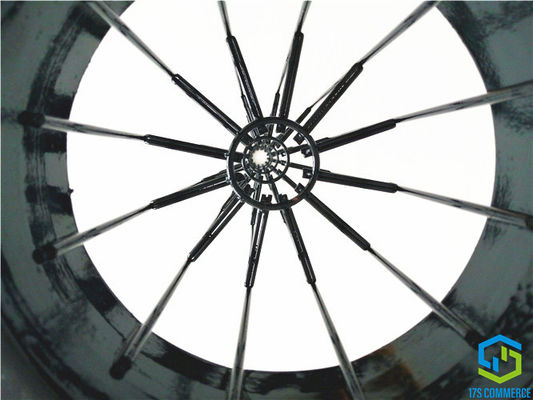

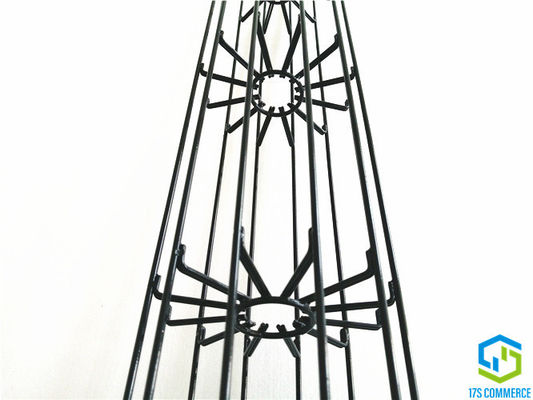

5. Double wire spider picture
