Product Details:
|
| Material: | Aramid Felt | Weight: | 500-600gsm |
|---|---|---|---|
| Working Temperature: | 204 ℃ Continuous And 240 ℃ Peak | Bag Finishing: | Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation And So On |
| Bag Head: | Seal Cuff, Bead Cuff | MOQ: | Negotiable |
| Pack: | Carton And Pallet | Place Of Origin: | China |
| High Light: | Round Aramid Filter Bags,600gsm Aramid Filter Bags,Conventional Baghouse Filter Bag |
||

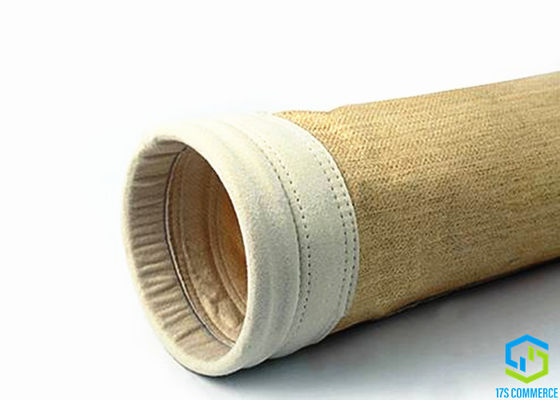

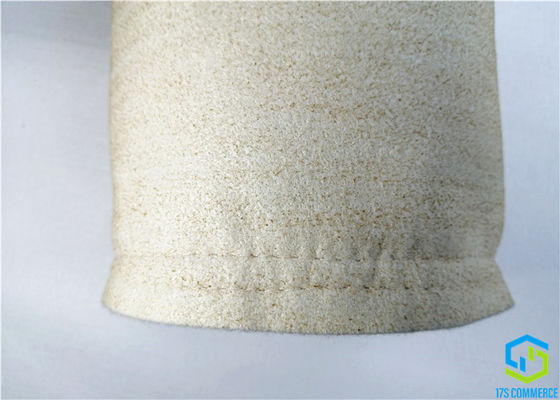

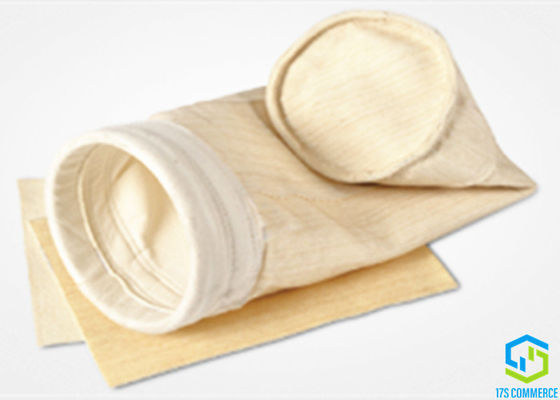

Round Aramid Dust Filter Bag Bag House Aramid Conventional Bag Aramid Felt Filter Bag Dust Collector Aramid Normal Bag
1. SpecificationMata-aramid is manufactured by the polymerization of aromatic amides to form poly(m-phenylene isophthalamide). Meta-aramid filtration fabrics provide filtration at higher temperature than polyester or acrylic, withstanding 204℃ dry heat and 177℃ in conditions of high moisture. Meta-aramid has poor resistance to acidic conditions but good at alkaline conditions.
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on
Bag Size: it is up to the CPO and installation and customized
Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen

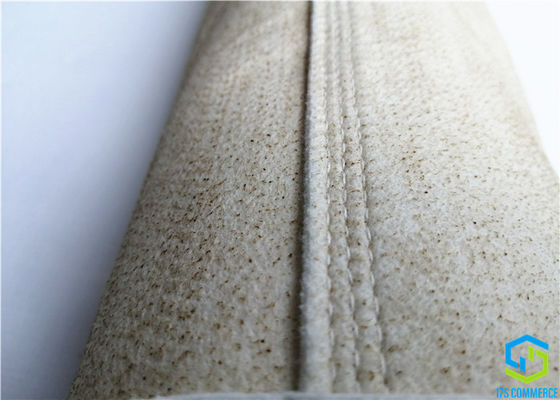

Bag Body: Sewing or Hot sealing
Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
2. Parameters of Aramid Filter Bags
| Bag | Aramid Filter Bag | |||||
| Felt | Aramid Needled Felt | |||||
| Scrim | aramid | |||||
| Weight | gsm | 500-550 | ||||
| Permeability | cfm | 30-40,PTFE lamination 3-7 | ||||
| Tensile Strength | Warp | ≥N | 900 | |||
| Weft | ≥N | 1000 | ||||
| Break Elongation | Warp | < % | 20 | |||
| Weft | < % | 50 | ||||
| Working Temperature | Continuous | Dry | ℃ | 204 | ||
| Moist | ℃ | 177 | ||||
| Short term | ℃ | 240 | ||||
| Dry Shrinkage | Warp | <% | 1.5 | |||
| Weft | <% | 1.5 | ||||
| Specific Density | 1.38 | |||||
| Support Combustion | no | |||||
| Resistance | Hydrolysis | poor | ||||
| Biological (mildew, bacteria) | no effect | |||||
| Alkalis | good | |||||
| Mineral Acids | fair | |||||
| Orgnic Acids | fair | |||||
| Oxidising Agents | poor | |||||
| Orgnic Solvents | very good | |||||
| Finishing | singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc | |||||
