Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| MOQ: | Negotiable | Diameter: | 110mm, 120mm, 138mm And Customized |
| No. Of Vertical Wire: | 12pcs | Crate: | Steel Crate |
| Place Of Origin: | China | ||
| High Light: | steel crate filter bag frame,12 Pleats filter cage venturi,pleated filter bag cages and venturi |
||
Silicon Coating 12 Pleats Venturi Cap Star Cage Pleat Cage Spider Cage Dust Bag House Cage Expand Filter Area Cage
1. Specification

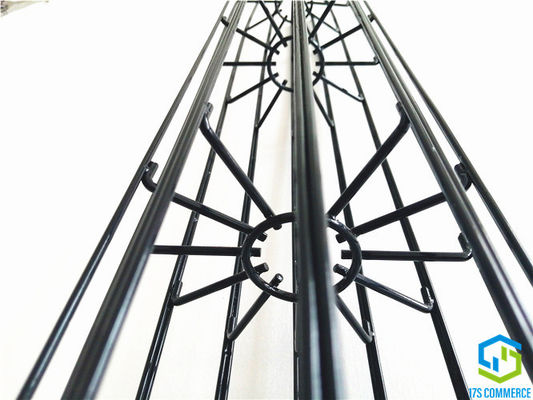

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
For more efficient cleaning, Venturi are available for all diameter cages.Venturi are made in a variety of materials including; aluminum, carbon steel, galvanized and stainless steel.
Our dust collector cages can be made to fit existing collectors from any baghouse manufactures such as Astek, Gencor, Flexkleen, Mikropul, Wheelabrator, etc. We can also manufacture uncommon and specialized cage designs as required.
2. Feature
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 12 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 110,120,138 | mm | |
| Vertical Wire | Number | 12 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | wire, press |  |
| Thickness | 4 / 1.5 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section / two sections | ||
| Joining Method | No | ||
| Top Cap | Type | weld top cap with venturi | |
| Size | TBD | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | TBD | mm |
| Thickness | 1-1.2 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | press bottom cap | |
| Size | BTD | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | silicon coating | |
| Thickness | 80-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Construction of star cages
| Pleats | Vertical Wire QTY | Diameter of Wire | Spider | Top Cap | Bottom Cap |
| 8 | 16 | 4 / 3.5 | wire / pressing | optional | wire bent |
| 12 | 12 / 24 | 4 / 3 | pressing / wire | optional | weld bottom cap |
| 10 | 10 | 4 | wire | optional | wire bent |
4. Product flow
5. Shipping of cage
Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.
6. FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
