Product Details:
|
| Felt: | P84 | Cage Material: | Carbon Steel, Stainless Steel, Galvanized Wire |
|---|---|---|---|
| Fabric Finishing: | Heat Setting、Singing、Impregnation、PTFE Lamination | Cage Finishing: | Silicon Coating, Zinc Coating, Electrophoresis Coating |
| Bag Diameter: | 160mm | Cage Diameter: | 150mm |
| Bag Length: | To Be Discussed | Cage Length: | To Be Discussed |
| Shipping Date: | To Be Discussed | Place Of Origin: | China |
| High Light: | PAN Acrylic HEPA vacuum filter bag,Folding Style HEPA vacuum filter bag,P84 hepa dust bag |
||

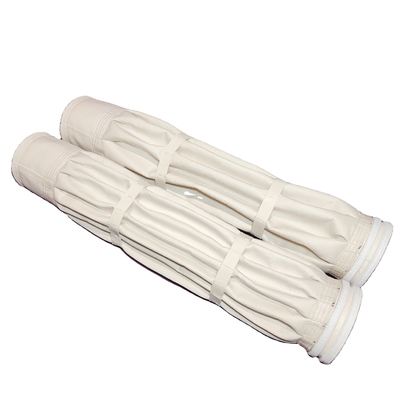

PAN Acrylic Fabric As Folding Style Pleated Filter Bag In Dust Collector
The filter bag structure should meet the requirement of filtration and dust collecting in the corresponding baghouse. at the same time, it should be easy to install, and have good sealing while having relevant filtration area and condition. The selection of filter bag material working conditions be used in the full understanding and filter under the condition of technical conditions.
* Filter material performance should meet the production conditions and the general situation of the dust collection processing and special requirements
* choose long service life filter material as far as possible. Not only for saving operational costs, but also meet the requirements of gas emissions standards.
* To deal with all kinds of filter material comprehensive comparison.
Finish Treatment:
Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on special treatment can be chosen.
The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Cage Pleats | Wire QTY | Diameter (mm) | Remark | |
| cage | bag | |||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires |
| 120 | 130 | |||
| 138 | 150 | |||
| 144 | 155 | |||
| 150 | 160 | |||
Star/ pleat bag and cage on site
Shipping of star bag and cage
Based on volume, schedule and customer's requiry we supply different shipping terms as below.
