Product Details:
|
| Name: | Star / Pleat Bag, Extend Filter Surface Bag | Felt: | PTFE |
|---|---|---|---|
| Diameter: | 130mm | No. Of Pleats: | 8 Pleats |
| Head: | Bead Cuff | Metal Hoop: | 304 Stainless Steel |
| Bottom: | Two Layers | Length: | Customized |
| Highlight: | Industry Needled Felt Bag,Hydrolysis Resistant Needled Felt Bag,Hydrolysis Resistant Felt Filter Bag |
||

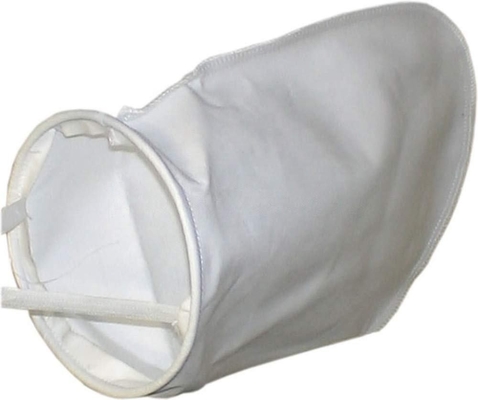

Industry Cement Plant Acrylic Needled Felt Filter Bag For Hydrolysis Resistant Cement Bag Filter
Cement plant special applied filter bag ,high hydrolysis resistant bag filter, Acrylic filter bag, for cement plant, hydrolysis resistant, Acrylic needle felt is produced by needling craft, made of acrylic fiber of staggered arrangement and gap uniform distribution. Its surface is neat and smooth processed through heat setting and singeing, so it cannot be stemmed by dust easily. This product possesses large porosity, good permeability and anti-chemical property. It not only works under normal temperature but also takes effect in conditions of middle temperature and environment filling acid and alkali gas. The main type of dust filter bags including Nomex filter bag, PPS filter bags ,P84 filter bag, PTFE filter bags, Acrylic filter bags, Polyester filter bags, dust filter bag, bag filters, dust collector bags.
It widely used in steel, power, waste incineration flue gas filtration and other harsh environments.
Homo Acrylic Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.
The main type of dust filter bags including Nomex filter bag, PPS filter bags, P84 filter bag, PTFE filter bags, Acrylic filter bags, Polyester filter bags, dust filter bag, bag filters, dust collector bags. Bag filter Acrylic.
Property
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8 pleats | ||
| Material | PTFE | ||
| Diameter | 130 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 120 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 130 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter area increasing (%)
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 |
| 12 pleats | 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 |
