Product Details:
|
| Name: | Star Bag | Felt: | Aramid / Nomex |
|---|---|---|---|
| Diameter: | 150mm | No. Of Pleats: | 8 / 12 Pleats |
| Head: | Bead Cuff | Metal Hoop: | 304 Stainless Steel |
| Bottom: | Two Layers | Length: | Customized |
| High Light: | PTFE Polyethylene Filter Bags,PPS Polyethylene Filter Bags,PPS Cylinder Filter Bag |
||

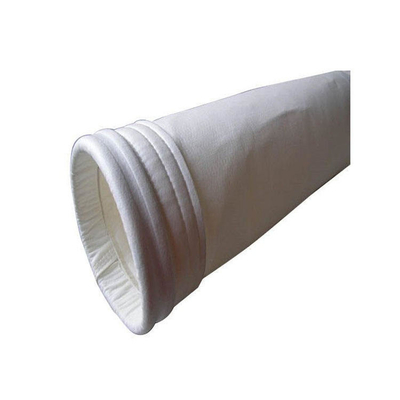

PTFE PPS Aramid Acrylic Cylinder Filter Bag Pleated Bag Filter Polyethylene Liquid Filter Bags
The scientific name of pps filter bag is polyphenylene sulfide, Polyphenylene sulfide PPS, specific gravity 1.38g/cm3, melting point 285℃, breaking strength 5.0g/d, limiting oxygen index 34. It is a crystalline high-performance thermoplastic engineering plastic with many characteristics such as heat resistance, chemical resistance, flame retardancy, etc. PPS operating temperature is 160℃-200℃. PPS has excellent heat resistance, excellent acid and alkali resistance, and excellent hydrolysis resistance. It is also a good flame-retardant filter material with extremely high thermal stability. However, PPS has poor oxidation resistance and is prone to oxidation corrosion. BaosloneTM PPS is used in coal-fired boilers, as well as flue gas purification processes in waste incinerators, coke ovens, kilns, chemical drying and other processes. It is also used in carbon black, powder collection, pneumatic conveying, chemical industry, cement, electric power, etc.
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8/12 pleats | ||
| Material | Aramid / Nomex | ||
| Diameter | 150 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 150 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 150 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface increase
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 |
| 12 pleats | 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 |
Pack
we put bags into carton or polybag firstly and then on pallet, in order to suit long distance transportation and product protection we use wrapping film to cover the pallet.
