Product Details:
|
| Item: | 17SPETN550FA | Material: | PE (Polyester) |
|---|---|---|---|
| Thickness: | 2.0± 0.2mm | Structure: | Needle Punched, Face Fiber+ Middle Scrim + Back Fiber |
| Workmanship: | Needle Punched/ Stitching | Finishing: | Heat Setting、 Singeing、Water And Oil Proof |
| Weight: | 550 G/m² | Pack: | Roll With Poly Bag |
| High Light: | 2.0mm needle punched polyester felt,550g needle punched polyester felt,Anti Static needle punch material |
||

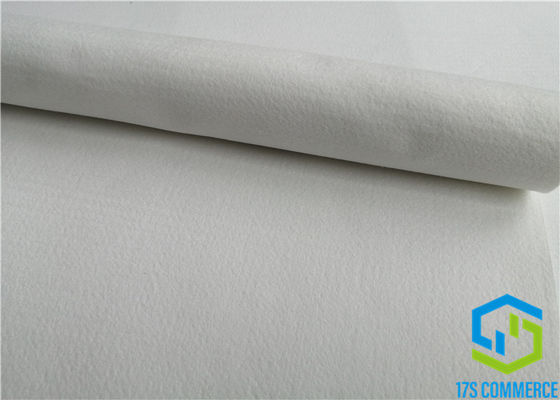

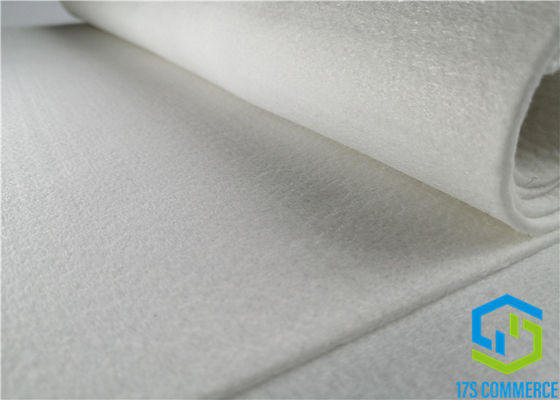

Polyester Anti-static Oil and Water Proof Needled Felt 550g PE Punched Filter Cloths
Description
Polyester needle felt is the most versatile, most cost effective and most widely used filter medium for dust collection. It is strong, abrasion resistant, can work up to 150°C and has good resistance to common acids, solvents and oxidising agents.
Polyester's only real weakness is a tendency to hydrolyse at elevated temperature which means that moisture can break down the fibres and cause them to revert to their basic constituents. This results in powdering of the fibres and a serious loss of strength.
Features of needled felt PETN550FA
| Item | 17SPETN550FA | |
| Name | stainless steel scrim PET punch felt 550g with water and oil proof coating | |
| Construction | Needle-punched | |
| Fibre Composition | poly fiber | |

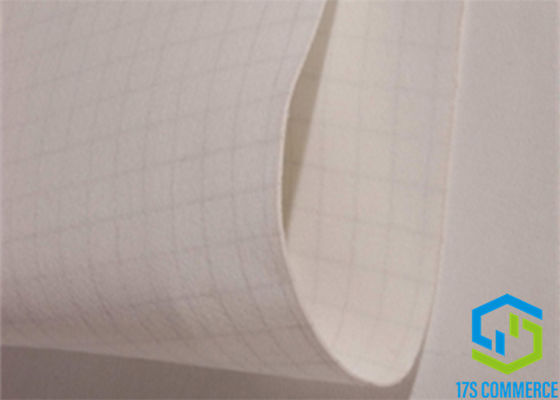

| Scrim Composition | PET filament+stainless steel yarn | |
| Felt Area Weight | 550 ± 25 | g/m2 |
| Thickness | 2.0± 0.2 | mm |
| Air Permeability | 15 ± 3 | m3/m2/min@200Pa |
| Breaking Strength-warp | ≥1000 | N / 5cm |
| Breaking Strength-weft | ≥1500 | N / 5cm |
| Breaking Elongation( N/5cm)-warp | ≤30 | % |
| Breaking Elongation( N/5cm)-weft | ≤50 | % |
| Electrical Resistivity | ≤108 | Ω |

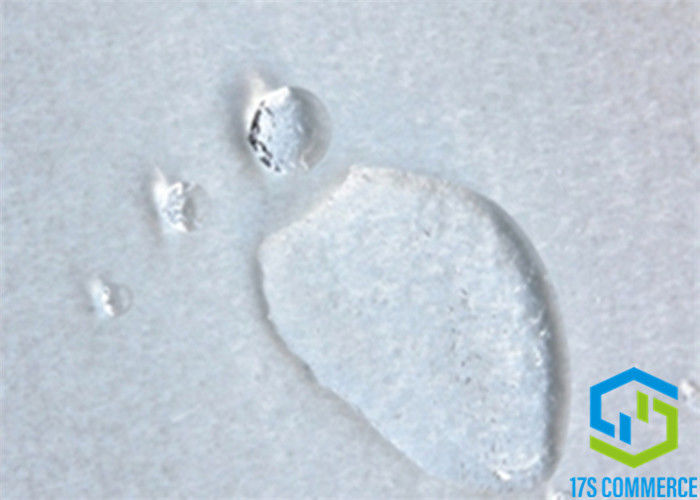

| Water Proof | ≥4 grade | 4 grade |
| Dry Shrinkage warp(150℃) | ＜1.5 | % |
| Dry Shrinkage weft(150℃) | ＜1.0 | % |
| Operating Temperatures | ||
| Max Continuous | 130 | deg C |
| Maximum Peak | 150 | deg C |
| Finish | Heat setting, Singeing,Water and Oil Proof | |
Chemical Resistance
| Hydrolysis | Biological (mildew, bacteria) | Alkalis | Mineral Acids | Orgnic Acids | Oxidising Agents | Orgnic Solvents |
| restrict | no effect | fair | fair | fair | good | good |
Application
Because of its favourable price/quality ratio, polyester is the most common fibre used in filter media.
• Mining
• Cement Industry
• Iron and Steel Industry
• Aluminum and Non Ferrous Industry
• Ceramic Industry
• Quarrying
• Plastics
• Milk Powder
• Flour Mills (Applications under dry conditions up to temperatures of 150°C)
Shipping
Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.
