Product Details:
|
| Item: | 17SPETN550L | Material: | PE (Polyester) |
|---|---|---|---|
| Thickness: | 2.2± 0.2mm | Supply Type: | Make - To - Order |
| Width: | Customized | Finishing: | Heat Setting、Singing、Membrane |
| Weight: | 550 G/m² | Origin: | China |
| High Light: | needle punched polyester felt 550gsm,needle punched polyester felt,550g needle punch felt |
||

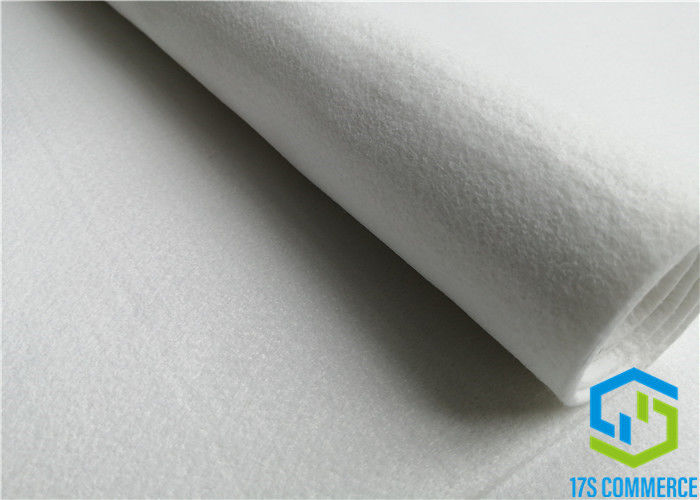

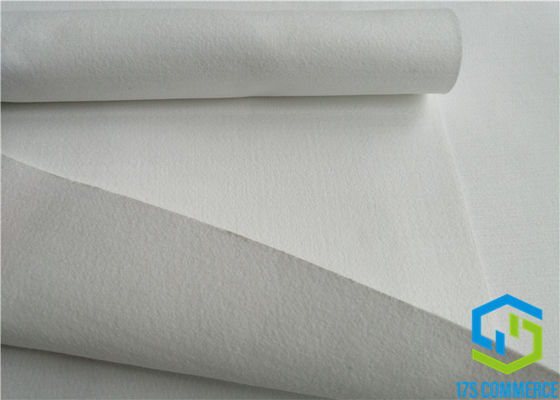

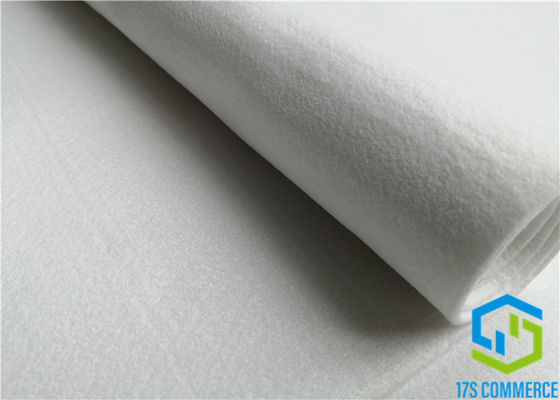

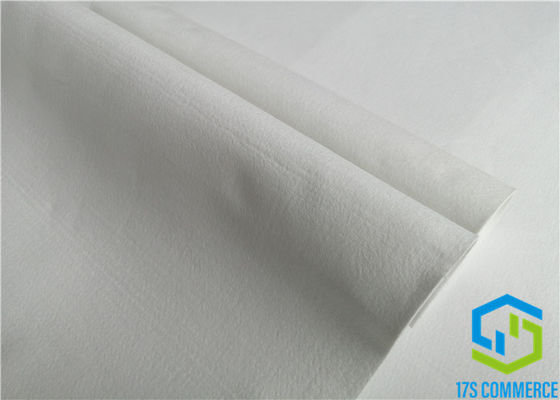

Efficient 550g PET Needling Cloth With PTFE Lamination Polyester Punched Membrane Filter Bag Felt Widely Used
Description
Polyester is a resin formed by the esterification reaction of dicarboxylic acids with diols. Polyester is used in low temperature filtration and can be degraded in application where moisture is present. We choose cascaded blend of different fiber sizes with the finer fiber concentration in the filtration surface to make the product not only have the common felt’s advantage of high voidage, good air permeability, high dust collection efficiency, long service life, etc , but also have the advantage of the moderate temperature rating, can reach 150℃ at the moment, moderate effect of the anti-antacid and anti-alkali, and has very good abrasion resistance. According to the different requirements of the different working condition, surface treatment can be done as singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc
Features of needled felt PETN550L
| Item | 17SPETN550L | |
| Name | PET needling cloth 550g with PTFE lamination | |
| Construction | Needle-punched | |
| Fibre Composition | PET fiber | |
| Scrim Composition | PET filament | |
| Felt Area Weight | 550 ±25 | g/m2 |
| Thickness | 2.2±0.2 | mm |
| Air Permeability | 2-4 | m3/m2/min@200Pa |
| Breaking Strength-warp | ≥1000 | N / 5cm |
| Breaking Strength-weft | ≥1500 | N / 5cm |
| Breaking Elongation( N/5cm)-warp | ≤30 | % |
| Breaking Elongation( N/5cm)-wef | ≤50 | % |
| Dry Shrinkage warp(150℃) | ＜1.5 | % |
| Dry Shrinkage weft(150℃) | ＜1.0 | % |
| Operating Temperatures | ||
| Maximum Continuous | 130 | deg C |
| Maximum Peak | 150 | deg C |
| Finish | Heat setting,Singing,Membrance | |
Chemical Resistance
| Hydrolysis | Biological (mildew, bacteria) | Alkalis | Mineral Acids | Orgnic Acids | Oxidising Agents | Orgnic Solvents |
| restrict | no effect | fair | fair | fair | good | good |
Application
Because of its favourable price/quality ratio, polyester is the most common fibre used in filter media.
• Mining
• Cement Industry
• Iron and Steel Industry
• Aluminum and Non Ferrous Industry
• Ceramic Industry
• Quarrying
• Plastics
• Milk Powder
• Flour Mills (Applications under dry conditions up to temperatures of 150°C)
