Product Details:
|
| Item: | 17SPPSPTN650L | Material: | PPS, PTFE Fiber |
|---|---|---|---|
| Thickness: | 1.7 ± 0.2 Mm | Air Permeability: | 2-5 M3/m2/min@200Pa |
| Workmanship: | Needle Punched/ Stitching | Finishing: | Heat Setting、 Singeing、PTFE Membrane |
| Weight: | 650 G/m² | Pack: | Roll With Poly Bag |
| High Light: | 650g needle punched nonwoven felt,1.7mm needle punched nonwoven felt,PPS PTFE needlepunch fabric |
||

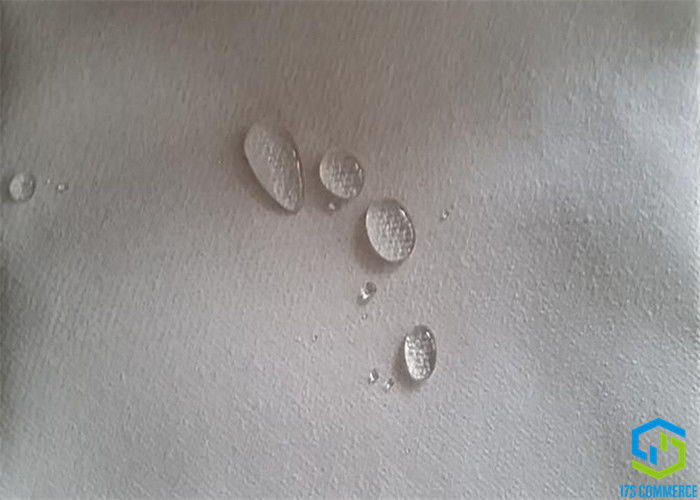

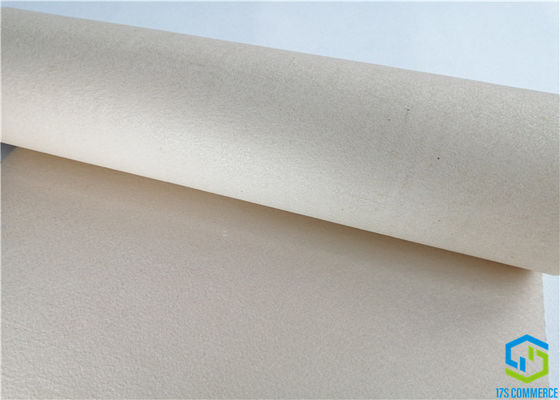

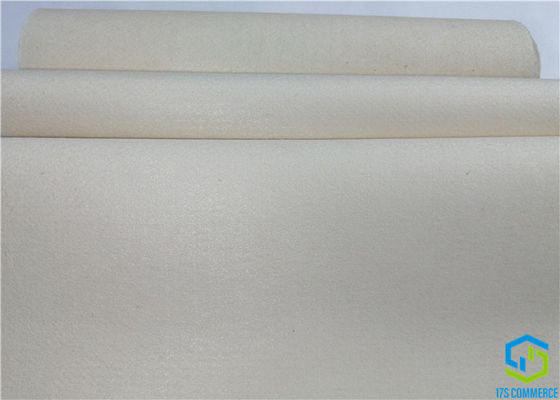

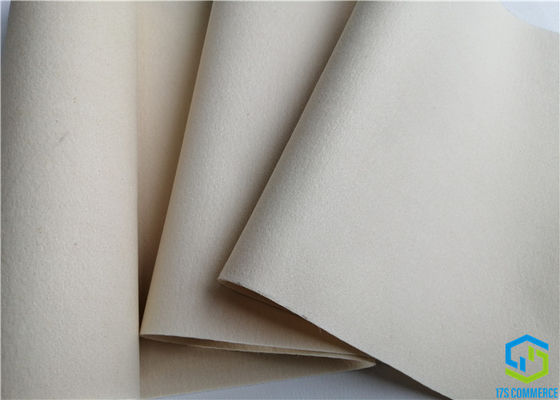

650g PPS And PTFE Blending Needled Felt With Lamination High Temperature Punched Filter Bag Cloths
Description
PPS(polyphenylene sulphide) polymer is formed by reaction of sulphur with dichlorobenzene. PPS has both high temperature resistance (190℃) as well excellent acid and alkali resistance, although it can be degraded in highly oxidative environments. PPS fiber needle felt is made of imported PPS fiber which produced by Japan, it is the leading varieties of the high temperature fiber material.
Main information of needled felt PPSPTN650L
| Item | 17SPPSPTN650L | |
| Name | PPS and PTFE blending needled felt 650g with lamination | |
| Construction | Needle-punched | |
| Fibre Composition | 50% PPS fiber+50%PTFE fiber | |
| Scrim Composition | PTFE | |
| Area Weight | 650 | g/m2 |
| Thickness | 1.7 ± 0.2 | mm |
| Air Permeability | 2-5 | m3/m2/min@200Pa |
| Breaking Strength-warp | ≥800 | N / 5cm |
| Breaking Strength-weft | ≥1100 | N / 5cm |
| Breaking Elongation( N/5cm)-warp | ≤25 | % |
| Breaking Elongation( N/5cm)-weft | ≤45 | % |
| Dry Shrinkage warp(190℃) | ＜1.5 | % |
| Dry Shrinkage weft(190℃) | ＜1.0 | % |
| Operating Temperatures | ||
| Maximum Continuous | 170 | deg C |
| Maximum Surge | 200 | deg C |
| Finish | Heat setting, Singing,Plain Finish | |
Chemical Resitance Properties
| Hydrolysis | poor | ||||
| Biological (mildew, bacteria) | no effect | ||||
| Alkalis | excellent | ||||
| Mineral Acids | excellent | ||||
| Orgnic Acids | excellent | ||||
| Oxidising Agents | fair | ||||
| Orgnic Solvents | excellent |
Production Flow
Needled felt, called punched filter cloths too, is a kind of nonwoven fabric, which is used for industry dust filtration. Needled punched felt is made of fiber and scrim, three layers construction with scrim inside. The first step is fiber feeding, and carding, needling, heat treatment, singeing, calendering, impregnation(oil and water proof), lamination (memberance) , inspection and pack , and then ship out.
