Product Details:
|
| Item: | 17SPETSSN550L | Material: | PET And Conductive Fiber |
|---|---|---|---|
| Thickness: | 2.2± 0.2mm | Width: | Customized |
| Air Permeability: | 2-5 M3/m2/min@200Pa | Finishing: | Heat Setting、Singing、Plain Finish、PTFE Membrance |
| Weight: | 550 G/m² | Pack: | Roll With Poly Bag |
| High Light: | 2.2mm needle punch nonwoven fabric,550g/m2 needle punch nonwoven fabric,non woven needle punched felt |
||

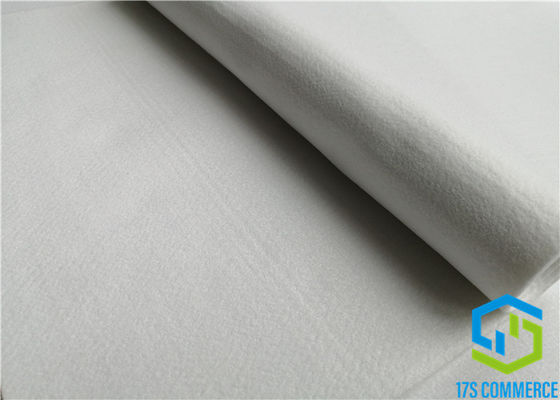

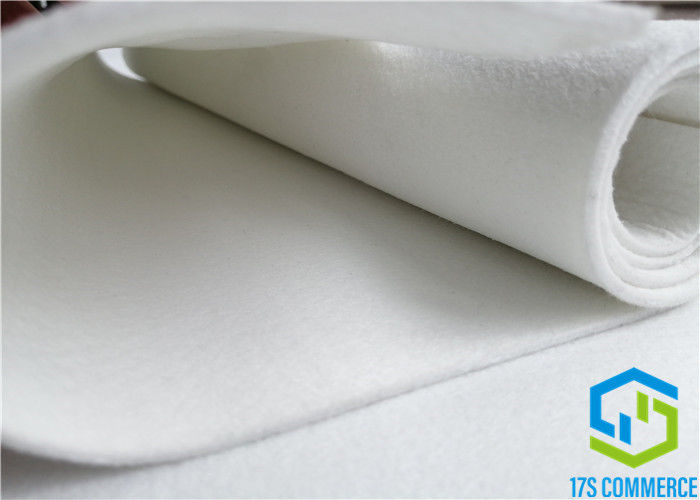

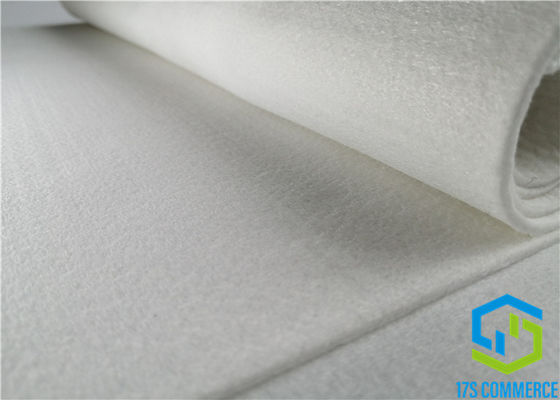

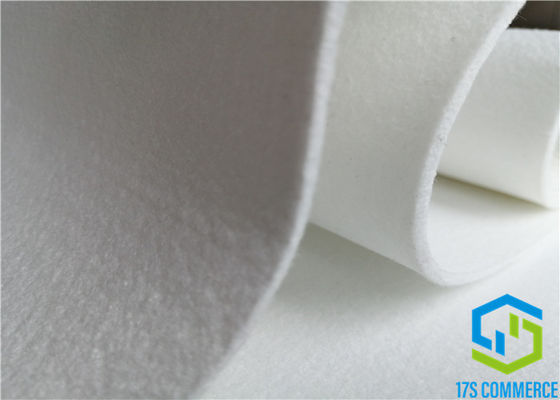

550g PET And Conductive Fiber Blending Needled Felt Anti-Static Punch Felt Membrane PET Needled Filter Fabric
Description
Polyester needle felt is the most versatile, most cost effective and most widely used filter medium for dust collection. It is strong, abrasion resistant, can work up to 150°C and has good resistance to common acids, solvents and oxidising agents.
Polyester's only real weakness is a tendency to hydrolyse at elevated temperature which means that moisture can break down the fibres and cause them to revert to their basic constituents. This results in powdering of the fibres and a serious loss of strength.
Physical Data of PETSSN550L
| Item | 17SPETSSN550L | |
| Name | PET and Conductive fiber blending needled felt 550g with PTFE membrance | |
| Construction | Needle-punched | |
| Fibre Composition | PET fiber+Conductive fiber | |
| Scrim Composition | PET filament | |
| Felt Area Weight | 550 ±25 | g/m2 |
| Thickness | 2.2±0.2 | mm |
| Air Permeability | 2-5 | m3/m2/min@200Pa |
| Breaking Strength-warp | ≥1000 | N / 5cm |
| Breaking Strength-weft | ≥1300 | N / 5cm |
| Breaking Elongation( N/5cm)-warp | ≤30 | % |
| Breaking Elongation( N/5cm)-weft | ≤45 | % |
| Electrical Resistivity | ≤106 | Ω |
| Dry Shrinkage warp(150℃) | ＜1.5 | % |
| Dry Shrinkage weft(150℃) | ＜1.0 | % |
| Operating Temperatures | ||
| Maximum Continuous | 130 | deg C |
| Maximum Surge | 150 | deg C |
| Finish | Heat setting,Singing,Plain Finish,PTFE Membrance | |
Chemical Resistance
| Hydrolysis | Biological (mildew, bacteria) | Alkalis | Mineral Acids | Orgnic Acids | Oxidising Agents | Orgnic Solvents |
| restrict | no effect | fair | fair | fair | good | good |
Application
Because of its favourable price/quality ratio, polyester is the most common fibre used in filter media.
• Mining
• Cement Industry
• Iron and Steel Industry
• Aluminum and Non Ferrous Industry
• Ceramic Industry
• Quarrying
• Plastics
• Milk Powder
• Flour Mills (Applications under dry conditions up to temperatures of 150°C)
