Product Details:
|
| Material: | Carbon Steel | Finish Treatment: | Zinc Coating |
|---|---|---|---|
| Joint: | Twist Joint | Diameter: | Customized |
| Vertical Wires No.: | 8 To 24 PCS | Top Cap: | Integrated Venturi Top Cap |
| Vertical Wire Thickness: | 3-4mm | ||
| High Light: | wire Dust Collector Filter Cage,Carbon Steel Dust Collector Filter Cage,twist joint filter bag cage |
||

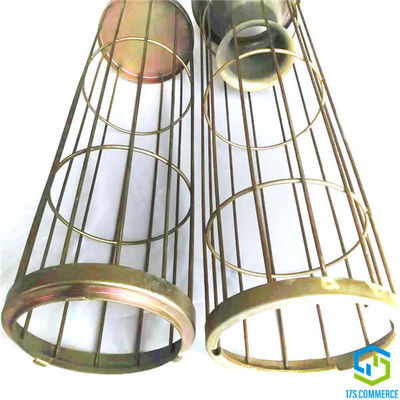

Integrated Venturi Top Cap Dust Filter Cage Twist Joint Cage Zinc Coating Round Filter Cage
Instruction
| Style | round filter cage with integrated venturi top | ||
| Item | 17SRC003 | ||
| Material | Q235 wild steel | ||
| Cage Diameter | 90-250 | mm | |
| Vertical Wire | Number | 8-24 | pcs |
| Thickness | 3-5 | mm | |
| Support Ring | Type | round | |
| Thickness | 3.5-6 | mm | |
| Distance | 150-350 | mm | |
| Length | TBD | mm | |
| Structure | two sections | ||

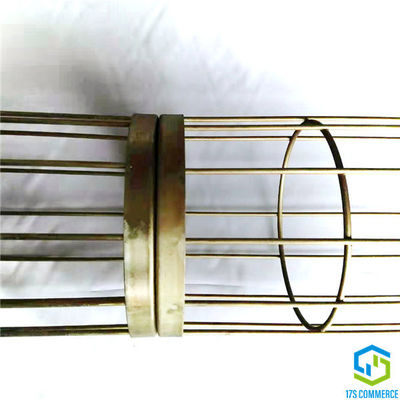

| Joining Method | twist joint | ||

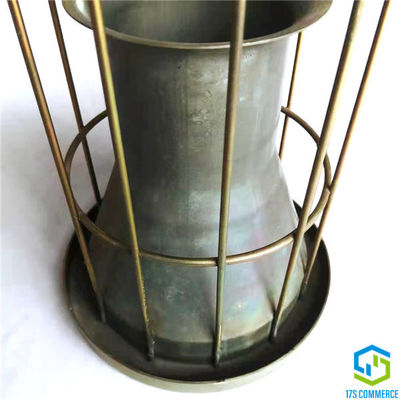

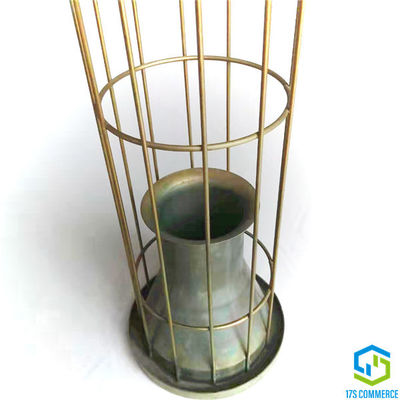

| Top Cap | Type | integrated | |
| Size | based on cage diameter | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | integrated | mm |
| Thickness | 1-1.2 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | punch plate | |
| Size | based on cage diameter | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | zinc coating | |
| Thickness | 40-90 | um | |
| Color | golden | ||
| Pack | steel crate | ||
Cage Inspection
