Product Details:
|
| Cage Material: | Stainless Steel,Carbon Steel, Galvanized Wire, | Cage Finish Treatment: | Silicon Coating, Zinc Coating, Electrophoresis Coating |
|---|---|---|---|
| Cage Top Cap: | Ordinary Cap, Venturi Top, Mikopul Cap, Hook Top, Ring Top, ETC | Cage Joint: | Twist Lock, Finger Lock, Slide Lock, Global Joint Lock |
| Cage Style: | Round | Place Of Origin: | China |
| High Light: | PTFE dust collector filter cage,ISO dust collector filter cage,OEM cages for filter bags |
||
PTFE Dust Filter Round Bag Cage PTFE Traditional Cage Bag House PTFE Dust Collect Normal Bag Cage
1. Specification

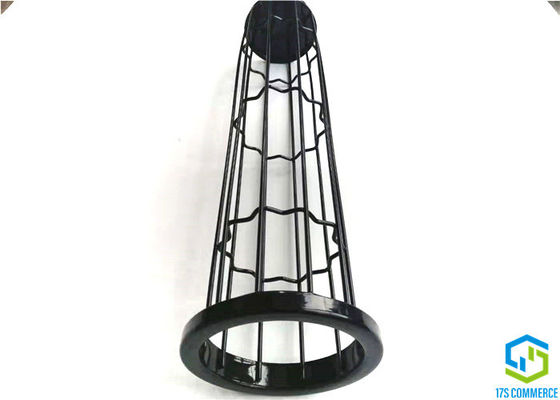

Cages are frameworks for bags, which is the bone of bags and supports the bags running. Both bags and cages are the most important element for bag houses. Star Cages are welded by special supporting rings (Spiders). We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. Procedure of cage making
| 1 | stretch line | streth 6 or 6.5 raw wire to roll diameters wires for cages, normally 3mm, 3.5mm and 4mm, |
| 2 | cut line | cut roll wires to fixed length based on cage sizes |
| 3 | weld body | weld vertical wires and suppoting ring together |
| 4 | weld top and bottom cap and venturi | weld top and bottom cap to cage, venturi if necessary |
| 5 | coating | silicon or zinc coating if necessary |
| 6 | inspect and fix | inspect weld loose, burs, coating etc and fix |
| 7 | pack | put cages into steel crates |

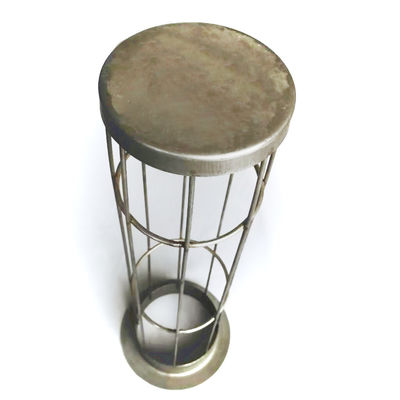

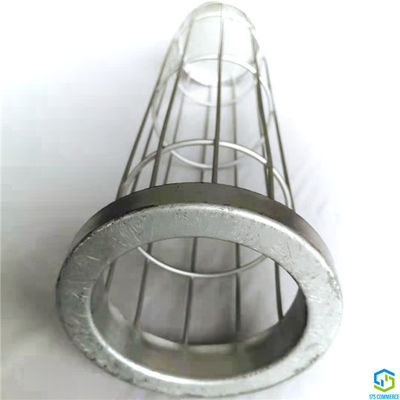

3. Round Cage Construction
| style | Vertical Wire QTY | Diameter of Wire | Supporting Ring | Top Cap | Bottom Cap | Connection |
| round cage | 8-24 | 4 / 3.5 /3.2 /3 | wire, round | optional | weld, crimp, wire bent | twist lock, sure lock, finger lock |
Optional Material: carbon steel, galvanized wire, stainless steel
Cage Diameter: customized
Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating

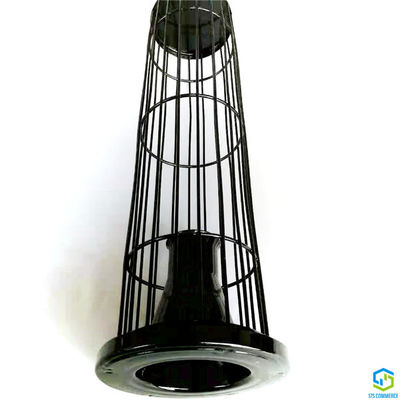

Cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires bent (hook) top, enlarged top ring etc
Cage Connection: cages were too long or top space of bag house was not enough, we suggest make cages in sections with joint like below
5. Application
