Product Details:
|
| Material: | 304 Stainless Steel 316 Stainless Steel | Name: | Stainless Steel Dust Collect Filter Cage |
|---|---|---|---|
| Shape Of Supporting Ring: | Round | Diameter: | Customized |
| Vertical Wires No.: | 8 To 24 PCS | Top Cap: | U Shape Top Cap |
| Vertical Wire Thickness: | 3-4mm | ||
| High Light: | stainless steel filter cages 90mm,ISO stainless steel filter cages,90mm filter bag cage |
||

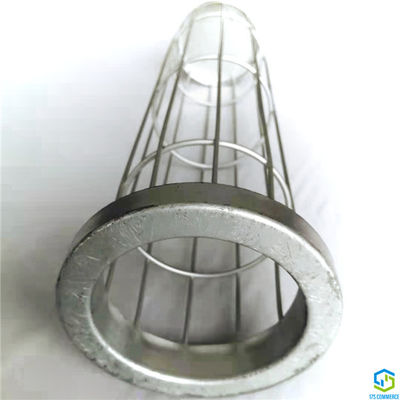

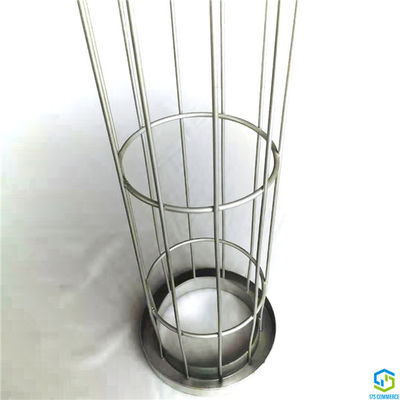

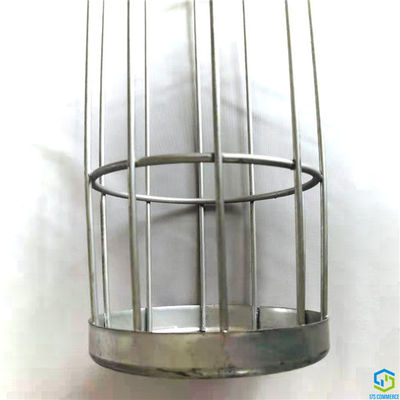

Stainless Steel Filter Cage 304 Stainless Steel Dust Filter Cage 316 Stainless Steel Filter Bag Cage
Product Detail
| Style | stainless steel round filter cage | ||
| Item | 17SRC008 | ||
| Material | 304 stainless steel 316 stainless steel | ||
| Diameter | 90-250 | mm | |
| Vertical / Longitudinal Wire | Number | 8-24 | pcs |
| Thickness | 3-4 | mm | |
| Support / Latitudinal Ring | Type | round | |
| Thickness | 3.5-4 | mm | |
| Distance | 150-350 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | no | ||
| Top Cap | Type | U shape top cap | |
| Size | per cage size | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | no | mm | |
| Fix | no | ||
| Bottom Cap | Type | punch plate | |
| Size | per cage diameter | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | no | |
| Thickness | no | um | |
| Color | original color | ||
| Pack | steel crate | ||
Pack
