Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Wire Spider | Diameter: | 150mm |
| No. Of Vertical Wire: | 16pcs | Place Of Origin: | China |
| MOQ: | Negotiable | Shipping Date: | Negotiable |
Spider Cage Star Cage Silicon Coating Pleat Cage 150mm Expand Filter Surface Bag Cage Epoxy Coating
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Our filter pleat/star cages are manufactured by highly skilled workers and provide a variety of options. We use carbon steel, galvanized steel and stainless steel to make cages. We can choose to apply special silicon coating, zinc coating, electrophoresis coating etc. after manufacturing to prevent chemical corrosion and prolong service life. We only use precision stamped or spun top caps, bottom capes and venturis to produce our best quality cage products.
2. Detail
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 150 | mm | |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm | |

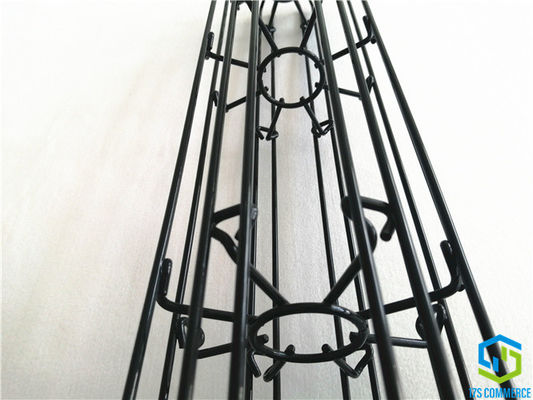

| Spider | Type | wire |  |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||

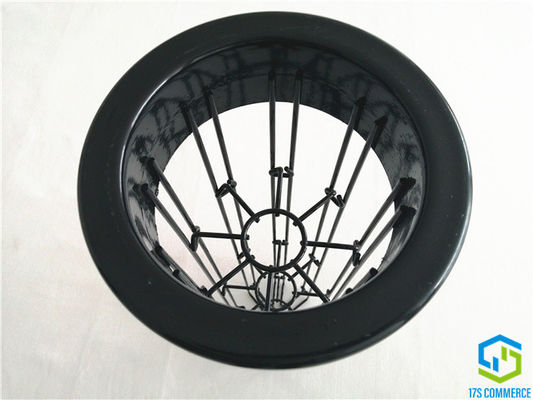

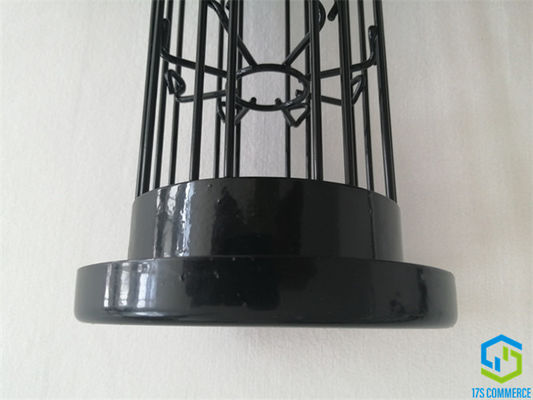

| Top Cap | Type | weld U shape top cap | |
| Size | 150/194 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||

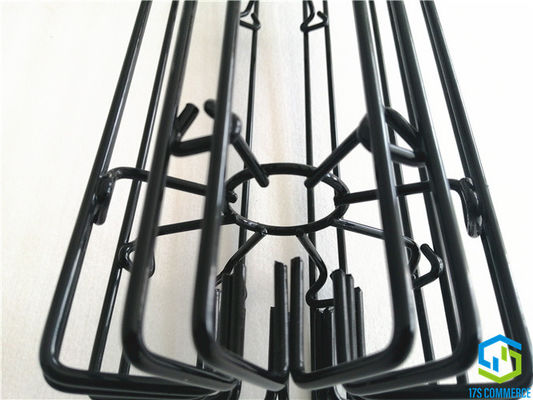

| Bottom Cap | Type | wire bent inworder | |
| Size | 150 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Applications of the star cage and bag in the bag house
| Plant | Star Bag and Cage | Application |
| Aluminium Plant | PE | electrolysis fume |
| PPS | aluminum hydroxide calcination | |
| Cement Plant | PE | cement mill, crushing macine, leather belt etc |
| PE with antistatic | coal mill | |
| P84 | kiln back end | |
| Meta aramid | kiln head | |
| Power Sation | PPS | boiler tail gas |
| Steel Plant | PE | casting house, ore bunker, sintering machine end, finished product transportation |
| Acrylic | slag differential | |
| Meta aramid | rotary furnace | |
| PPS/Acrylic | sintering machine head | |
| Chemical Plant | PTFE , Meta aramid | high temperature and corrosive confition |
| Nonferrous Metal Smelt Plant | P84 | aluminum metlting, copper furnace, gold smelt etc |
| Carbon Black Plant | PE, PE with PTFE lamination | grinder machine |
| Glass Plant | PTFE, PTFE composited P84 bag |
4. Star cage on site
