Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Press Spider | Diameter: | 110mm |
| Pleats: | 12 Pleats | Top Cap: | Ordinary Cap |
| Crate: | Steel Crate | Place Of Origin: | China |

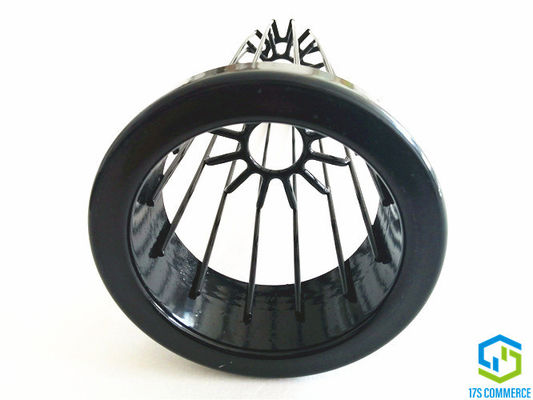

Star Filter Cage Silicon Coating Pleat Cage 110mm Spider Cage Mild Steel Dust Collector Cage
1. Specification
The filter bag support cage is combined with the vertical metal wire, the support cage, the top cover and the bottom cover, and the venturi tube. In order to reduce the contact between the filter bag and the support ring of the bag cage, we developed a star-shaped dust collector filter star/pleat bag cage; in order to increase the filtering area, we developed a pleated/star filter bag with related pleated filter bag cages.

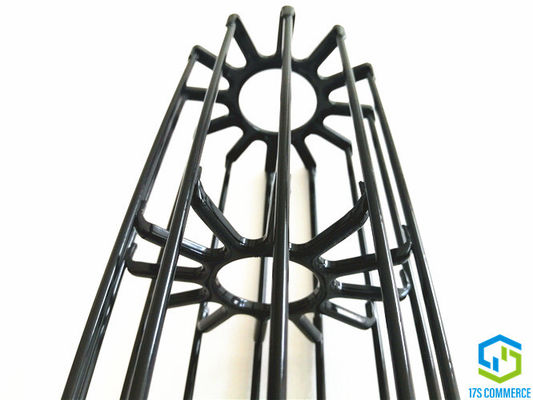

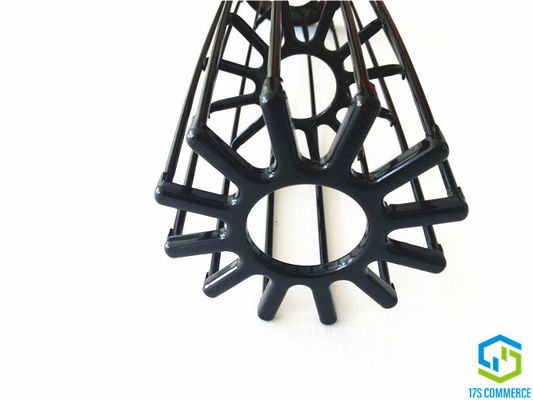

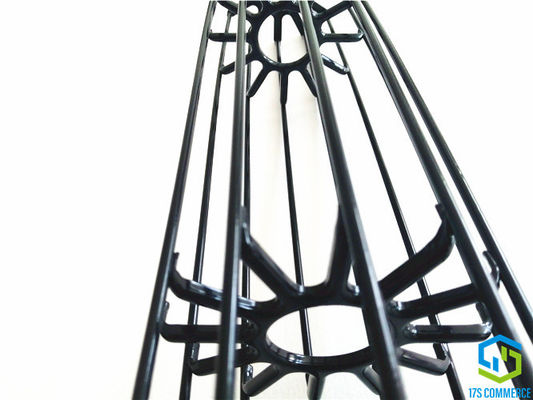

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. Datasheet
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 12 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 110 | mm | |
| Vertical Wire | Number | 12 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | press |  |
| Thickness | 1.5 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | 110/140 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | weld bottom cap | |
| Size | 102 | mm | |
| Thickness | 1.5 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Pleats | Wire QTY | Diameter (mm) | Remark | |||
| cage | bag | |||||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
4. Cage test
