Product Details:
|
Material: | Stainless Steel | Application: | Dust Collect/filter |
---|---|---|---|
Spiders: | Wire Spider | Diameter: | 110mm |
Pleats: | 8 Pleats | Top Cap: | Ordinary Cap |
Crate: | Steel Crate | Place Of Origin: | China |
High Light: | ss304 stainless steel filter cages,110mm stainless steel filter cages,316SS dust collector cage |

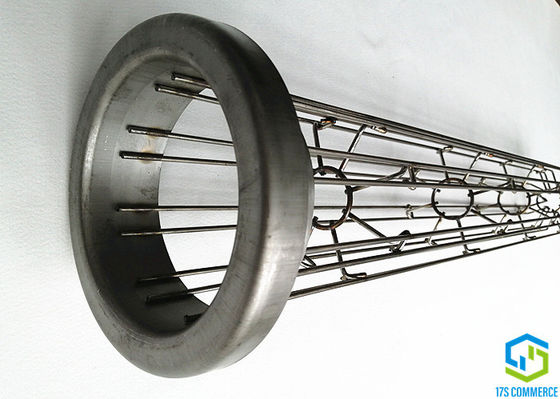

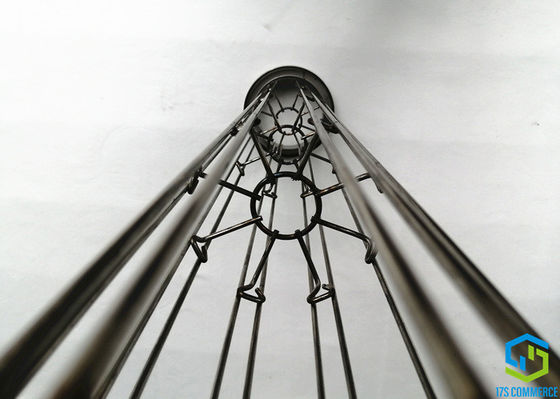

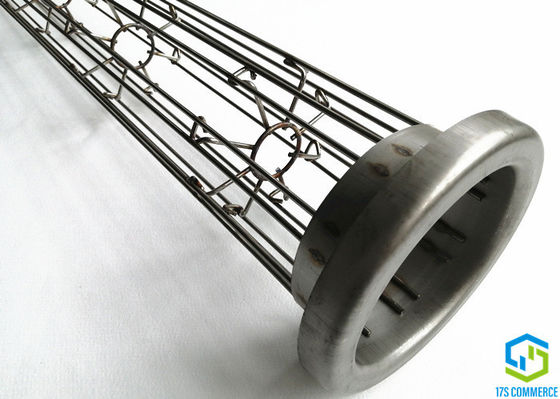

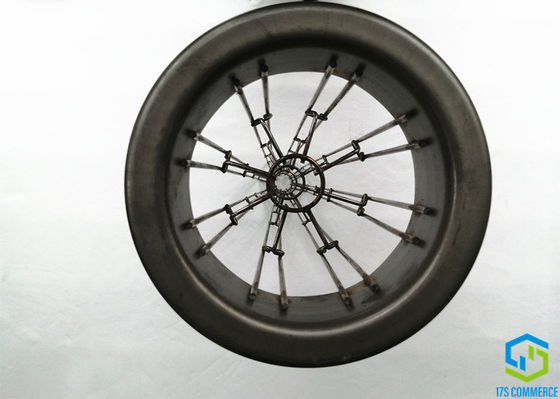

Stainless steel Star Cage 304SS Pleat Cage 316SS 110mm Spider Cage Dust Collector Cage
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Stainless steel wire star/pleat/spider cage can meet all working conditions of dust collector, whatever high temperature, high humidity, high corrosion, electrostatic particles etc, so star cage in stainless steel provide loner service life, easy installation and pull out, economical maintenance etc.
2. Datasheet
Style | star cage / pleat cage / spider cage | ||
Pleats No. | 8 pleats | ||
Material | stainless steel 304 316 | ||
Diameter | 110 | mm | |
Vertical Wire | Number | 16 | pcs |
Thickness | 4 | mm | |
Spider | Type | wire | |
Thickness | 4 | mm | |
Distance | 150-250 | mm | |
Length | TBD | mm | |
Structure | one section | ||
Joining Method | No | ||
Top Cap | Type | weld U shape top cap | |
Size | 110/140 | mm | |
Thickness | 1-1.2 | mm | |
Fix | weld to cage | ||
Venturi | Size | no | mm |
Thickness | 1 | mm | |
Fix | weld to top cap | ||
Bottom Cap | Type | wire bent inworder | |
Size | 110 | mm | |
Thickness | no | mm | |
Fix | no | ||
Finishing | Type | no | |
Thickness | no | um | |
Color | original metal color | ||
Pack | steel crate |
3. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
Pleats | Wire QTY | Diameter (mm) | Remark | |||
cage | bag | |||||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm | ||
120 | 130 | |||||
138 | 150 | |||||
144 | 155 | |||||
150 | 160 | |||||
12 pleats | 12 | 110 | 120 | 4mm vertical wires | ||
120 | 130 | |||||
138 | 150 | |||||
10 pleats | 10 | 110 | 120 | 4mm vertical wires | ||
120 | 130 | |||||
138 | 150 | |||||
144 | 155 | |||||
150 | 160 |
4. Application
