Product Details:
|
Material: | Mild Steel | Finish Treatment: | Electrophoresis Coating |
---|---|---|---|
Spiders: | Wire Spider | Diameter: | 110mm |
Pleats: | 8 Pleats | Top Cap: | Ordinary Cap |
Crate: | Steel Crate | Place Of Origin: | China |
High Light: | Anti Explosion dust collector filter cage,110mm dust collector filter cage,Star Filter Cage 8 Pleats |
Anti-explosion Star filter Cage Electrophoresis Coating Pleat Cage 110mm Spider Cage
1. Specification

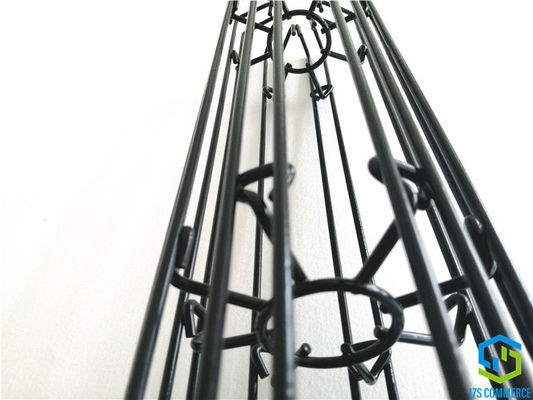

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Electrophoresis coating (E-Coating or Electro Coating) is a process of immersing metal parts in a fluid bath where an electric charge draws paint or epoxy particles in the fluid to the surface of the part. The process is similar to electroplating metal.In E-Coating, an even, continuous film of paint is drawn to the part, and the thickness is controlled by varying the current and duration of immersion.
Used in a variety of industries, including filter industry, electro coating is especially useful in working with complex shapes and high-quality parts. Benefits of E-Coating include:
2. Datasheet
Style | star cage / pleat cage / spider cage | ||
Pleats No. | 8 pleats | ||
Material | Q235 mild steel | ||
Diameter | 110 | mm | |
Vertical Wire | Number | 16 | pcs |
Thickness | 4 | mm | |
Spider | Type | wire | |
Thickness | 4 | mm | |
Distance | 150-250 | mm | |
Length | TBD | mm | |
Structure | one section | ||
Joining Method | No | ||

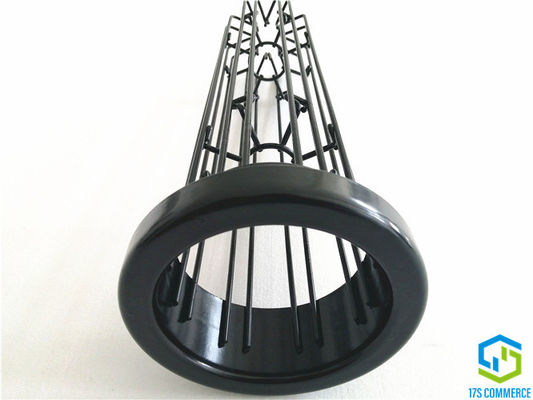

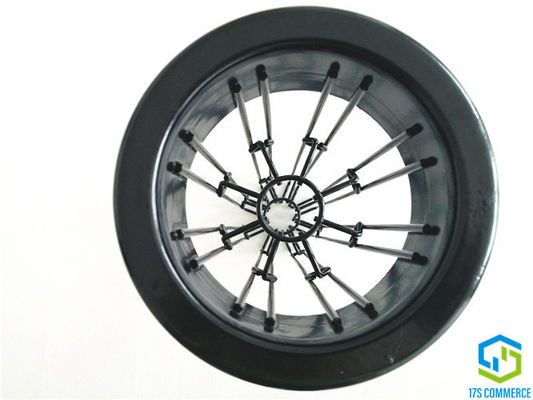

Top Cap | Type | weld U shape top cap | |
Size | 110/140 | mm | |
Thickness | 1-1.2 | mm | |
Fix | weld to cage | ||
Venturi | Size | no | mm |
Thickness | 1 | mm | |
Fix | weld to top cap | ||

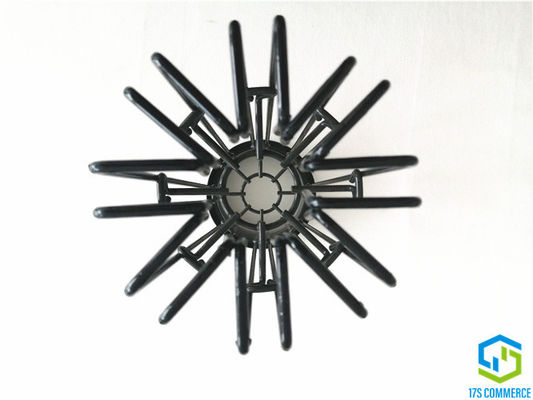

Bottom Cap | Type | wire bent inworder | |
Size | 110 | mm | |
Thickness | no | mm | |
Fix | no | ||
Finishing | Type | electrophoresis coating | |
Thickness | 90-140 | um | |
Color | black | ||
Pack | steel crate |
3. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
Pleats | Wire QTY | Diameter (mm) | Remark | |||
cage | bag | |||||
8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm | ||
120 | 130 | |||||
138 | 150 | |||||
144 | 155 | |||||
150 | 160 | |||||
12 pleats | 12 | 110 | 120 | 4mm vertical wires | ||
120 | 130 | |||||
138 | 150 | |||||
10 pleats | 10 | 110 | 120 | 4mm vertical wires | ||
120 | 130 | |||||
138 | 150 | |||||
144 | 155 | |||||
150 | 160 |
4. Test
