Explosion Proof 138mm Dust Collector Filter Cage

138mm Explosion Proof Star Cage Electrophoresis Coating Pleat Cage Mild Steel Spider Cage Bag House Bag Cage

1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

Electrophoresis coating (E-Coating or Electro Coating) is a process of immersing metal parts in a fluid bath where an electric charge draws paint or epoxy particles in the fluid to the surface of the part. The process is similar to electroplating metal. In E-Coating, an even, continuous film of paint is drawn to the part, and the thickness is controlled by varying the current and duration of immersion.

Used in a variety of industries, including filter industry, electro coating is especially useful in working with complex shapes and high-quality parts. For filter industry, electrophoresis coating is explosionproof.

2. Overview

Style	star cage / pleat cage / spider cage
Pleats No.	8 pleats
Material	Q235 mild steel
Diameter	138		mm
Vertical Wire	Number	16	pcs
	Thickness	4	mm

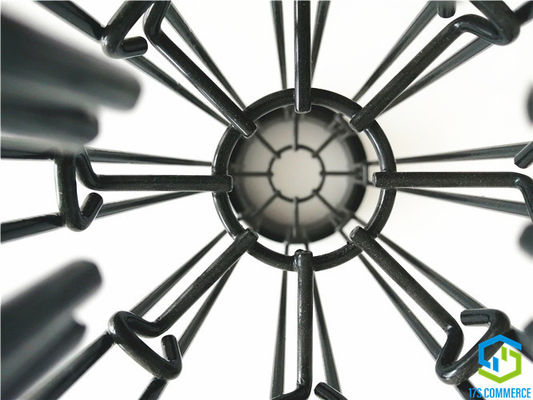

Spider	Type	wire
	Thickness	4	mm
	Distance	150-250	mm
Length	TBD		mm
Structure	one section
Joining Method	No

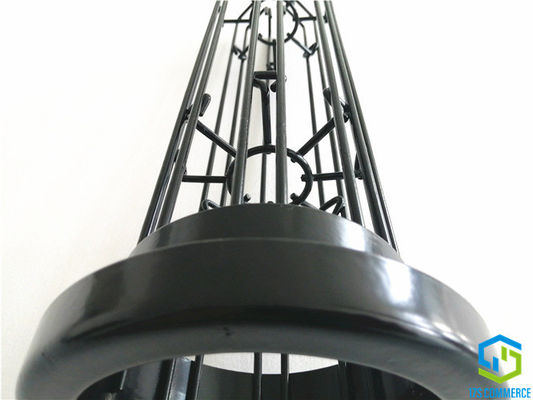

Top Cap	Type	weld U shape top cap
	Size	138/185	mm
	Thickness	1-1.2	mm
	Fix	weld to cage
Venturi	Size	no	mm
	Thickness	1	mm
	Fix	weld to top cap

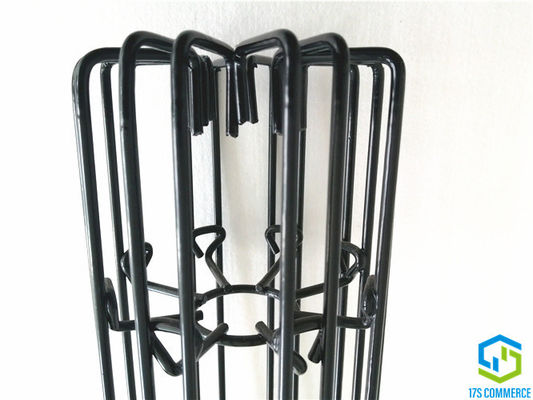

Bottom Cap	Type	wire bent inworder
	Size	138	mm
	Thickness	no	mm
	Fix	no
Finishing	Type	electrophoresis coating
	Thickness	90-140	um
	Color	black
Pack	steel crate

3. Why Choose Us

  1) over ten years experience in this field

  2) very strict quality control management

  3) perfect feed back from customers about quality,service,shipping etc

  4) we have own factory, easy control of quality, leadtime, workmanship and IP protection

  5) many big and famous customers buy our products consistently

  6) strong R&D team, design and develop and product ability

  7) QC and QA inspection before shipping

  8) 100% products exported, know customers’ requires

  9) Zero complain and claim of our products till now

4. Some Endusers

Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German) and so on.

5. electrophoresis coating cage
