Explosion Protection 144mm 8 Pleat Star Filter Cages Cataphoresis Coating

Explosion Protection 144mm 8 Pleat Filter Cage Cataphoresis Coating Mild Steel Star Cage Spider Cage

1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Cataphoresis coating is one of electrophoresis coating, one type coating for some working conditions especially baghouse with conductive particles. Benefits of E-Coating include:

• Durable, lasting finishes. E-Coating is renowned for its ability to stand up to outdoor weathering and indoor environments where harsh chemicals may be present, as well as being chip resistant.
• Complete coverage and consistent thickness. E-Coating works well with complex shapes, allowing for better coverage and thinner coats than other methods.
• Efficient coating usage. E-Coating can be used for higher volume production runs and uses paint more efficiently than spray techniques, delivering a high-quality finish with almost zero waste.
• Excellent primer. Good inter-coat adhesion with most topcoats makes E-Coating a great primer for almost all ferrous applications.
• Environmentally friendly. A water-based, immersion technology, E-Coating produces no Hazardous Air Pollutants or Volatile Organic Compounds. It is OSHA and EPA compliant.

2. Datasheet

Style	star cage / pleat cage / spider cage
Pleats No.	8 pleats
Material	Q235 mild steel
Diameter	144		mm
Vertical Wire	Number	16	pcs
	Thickness	4	mm

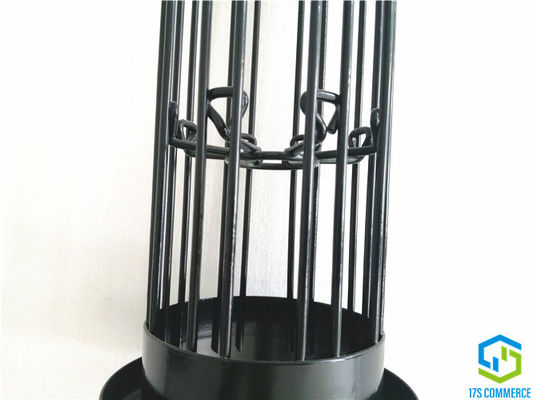

Spider	Type	wire
	Thickness	4	mm
	Distance	150-250	mm
Length	TBD		mm
Structure	one section
Joining Method	No

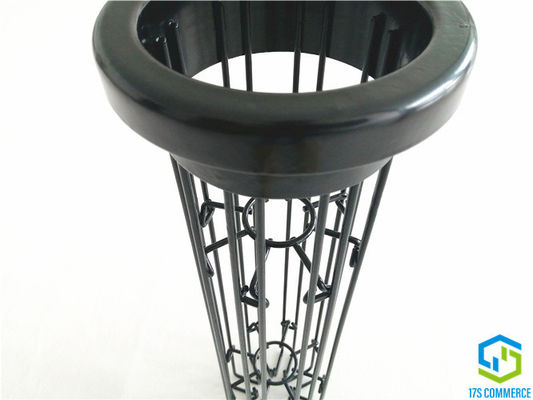

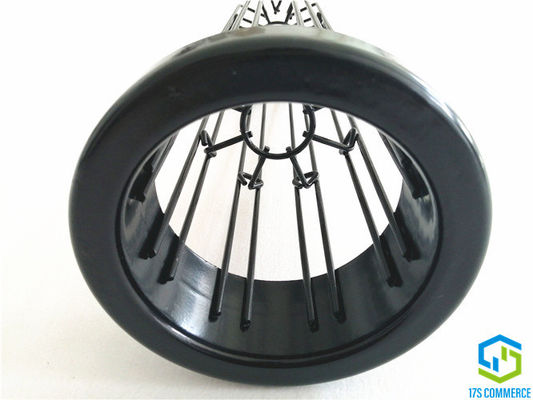

Top Cap	Type	weld U shape top cap
	Size	144/193	mm
	Thickness	1-1.2	mm
	Fix	weld to cage
Venturi	Size	no	mm
	Thickness	1	mm
	Fix	weld to top cap

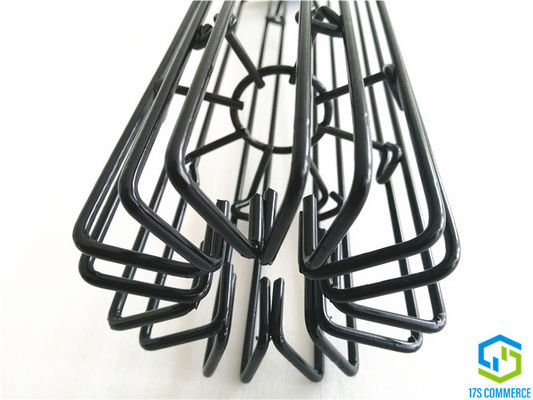

Bottom Cap	Type	wire bent inworder
	Size	144	mm
	Thickness	no	mm
	Fix	no
Finishing	Type	cataphoresis coating
	Thickness	90-140	um
	Color	black
Pack	steel crate

3. FAQ

Q: How fast can I get the quotation?

A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.

Q: How long does the production take?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.

Q: What is your payment term?

A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.

Q: How does your factory do regarding quality control.

A: Quality is priority. We will do 100% quality inspection before shipment.

Q: Can you produce according to customers' design?

A: Sure, we are professional manufacturer, OEM and ODM are both welcome.

Q: How I know whether your product can be used in my area?

A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.

4. Application
