Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Wire Spider | Diameter: | 110mm |
| Pleats: | 8 Pleats | Top Cap: | Ordinary Cap |
| Crate: | Steel Crate | Place Of Origin: | China |
| High Light: | Two Sections Star Filter Cages,Global Joint Star Filter Cages,110mm bag filter cage |
||

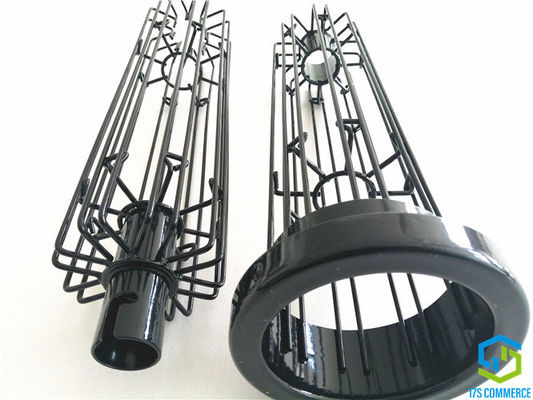

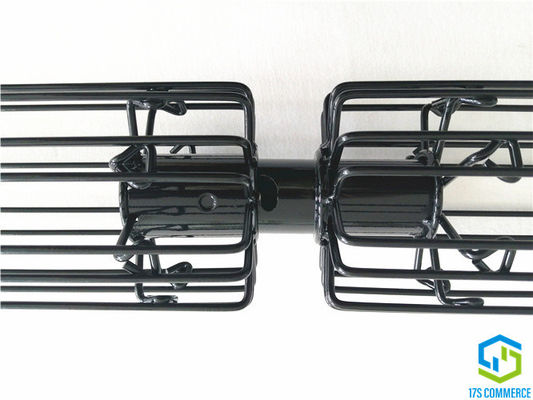

Two Sections Star Cage Silicon Coating Pleat Cage 110mm Global Joint Spider Cage Mild Steel Dust Collector Cage
1. Specification

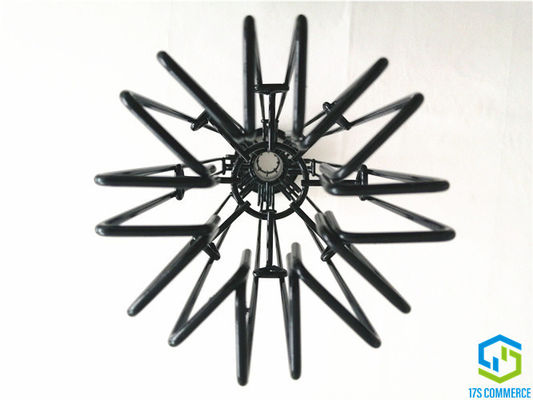

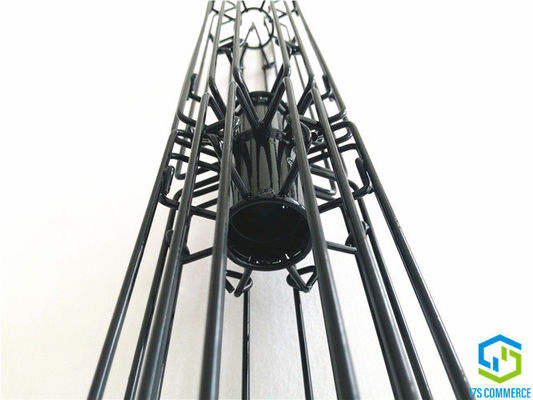

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
110mm diameter star/pleat cage is one of our standard size, which matches star bag 120mm. 120mm, 138mm, 144mm and 150mm are other standard diameters of our star/pleat/spider cage. Custom-made diameter star cage is available.
2. Datasheet
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 110 | mm | |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | wire | |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||

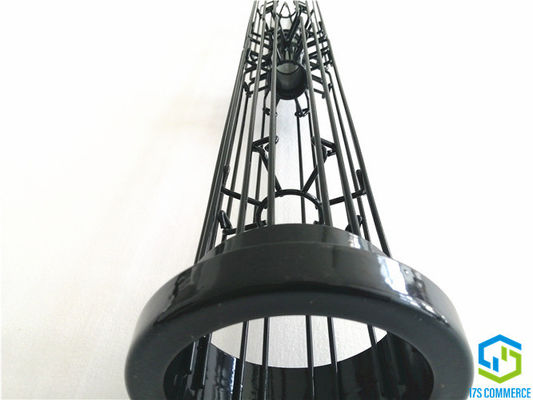

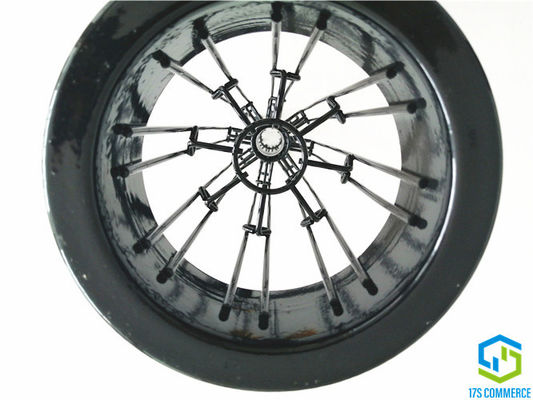

| Top Cap | Type | weld U shape top cap | |
| Size | 110/140 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | wire bent inworder | |
| Size | 110 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. The Match of Star bags and Cages
Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.
Match Of Star Bags and Star Cages
| Pleats | Wire QTY | Diameter (mm) | Remark | |||
| cage | bag | |||||
| 8 pleats | 16 | 110 | 120 | 3.5 or 4mm vertical wires, also can we 8 pcs vertical wires for diameter 110 and120mm | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
| 12 pleats | 12 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 10 pleats | 10 | 110 | 120 | 4mm vertical wires | ||
| 120 | 130 | |||||
| 138 | 150 | |||||
| 144 | 155 | |||||
| 150 | 160 | |||||
4. Application
