Product Details:
|
| Material: | Mild Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Spiders: | Wire Spider | Diameter: | 120mm |
| Pleats: | 8 Pleats | No. Of Vertical Wire: | 16pcs |
| Top Cap: | U Shape Flange Cap | Crate: | Steel Crate |
| Place Of Origin: | China | MOQ: | Negotiable |
| Shipping Date: | Negotiable | Pay Terms: | T/T L/C |
| High Light: | 8 Ray baghouse filter cages,Global Joint Bag House Cages,120mm bag filter cages |
||

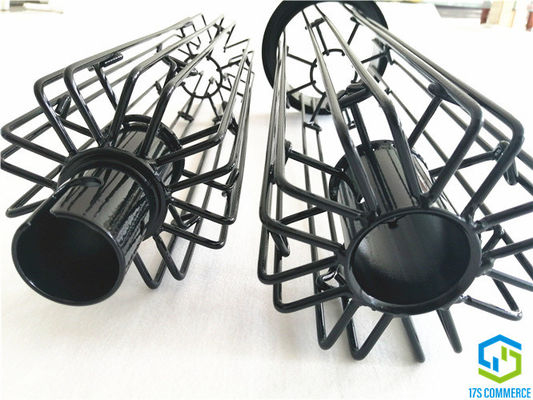

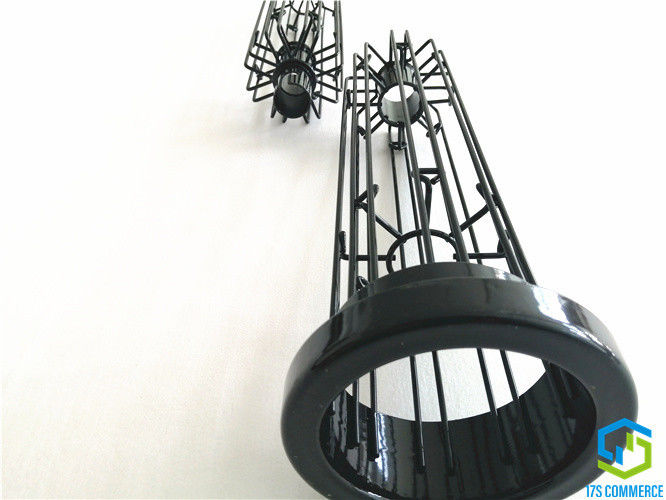

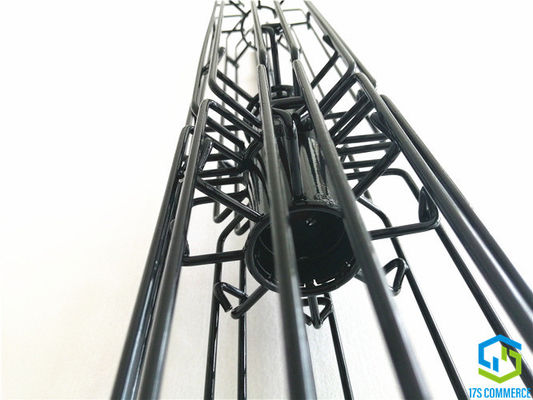

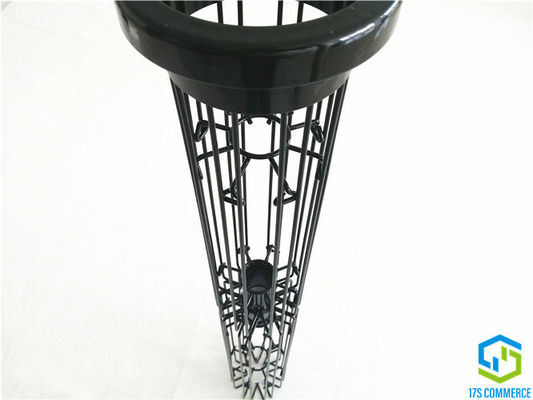

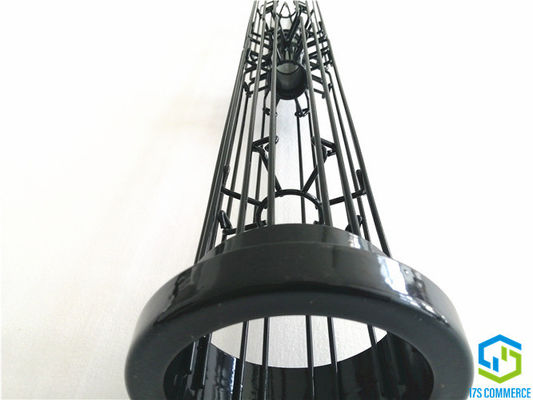

8 Ray Star Cage Two Sections Silicon Coating Global Joint Pleat Cage 120mm Spider Cage Carbon Steel Bag House Cage
1. Specification
8 pleat Star/pleat cage constructions typically consist of 16 vertical wires. The horizontal spider spacing on the cage can be normally 250mm. If the top height of baghouse is not tall enough, two piece cages are available in joint of “twist-lock (globle joint)” .For areas where moisture or acid corrosion present we can provide a range of materials, often galvanized steel or stainless steel, also we supply silicon coating,zinc coating and electrophoresis coating to prolong filter cage service time. Top load baghouse cages are available with a T-flange, U-shape top cap, ring top or several styles of rolled flange tops. Star/pleat cage diameters are 110,120,138,144,150mm and customized. Wire thickness typically 4mm. pleat/star/spider cages for bottom load baghouses are constructed with a split collar or split ring top.

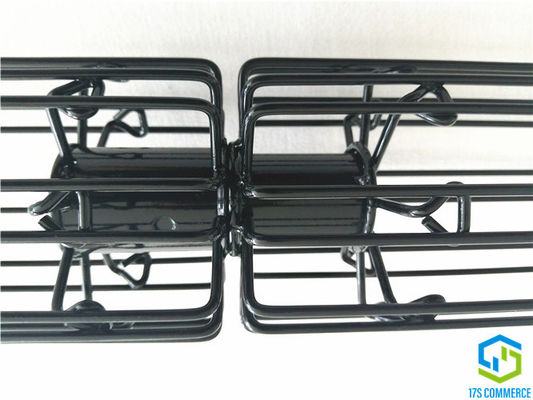

Normally cage is one section, we recommend two sections cage if cage too long or bag house top space is not enough. The joint is called globle joint or twist joint, which is easy to install and removal.
2. Information
| Style | star cage / pleat cage / spider cage | ||
| Pleats No. | 8 pleats | ||
| Material | Q235 mild steel | ||
| Diameter | 120 | mm | |
| Vertical Wire | Number | 16 | pcs |
| Thickness | 4 | mm | |
| Spider | Type | wire | |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | TBD | mm | |
| Structure | one section | ||
| Joining Method | No | ||
| Top Cap | Type | weld U shape top cap | |
| Size | 120/160 | mm | |
| Thickness | 1-1.2 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | 1 | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | wire bent inworder | |
| Size | 120 | mm | |
| Thickness | no | mm | |
| Fix | no | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
3. Advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 | |
| 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 | |
| 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 | |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
| 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 | |
| 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 | |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
4. Product flow
