Product Details:
|
Material: | Mild Steel | Finish Treatment: | Silicon Coating |
---|---|---|---|
Spiders: | Wire Spider | Diameter: | 138mm |
No. Of Vertical Wire: | 16pcs | Crate: | Steel Crate |
Place Of Origin: | China | MOQ: | Negotiable |
High Light: | Star Filter Cages 138mm,Twist Joint Star Filter Cages,Two Pieces baghouse cages |

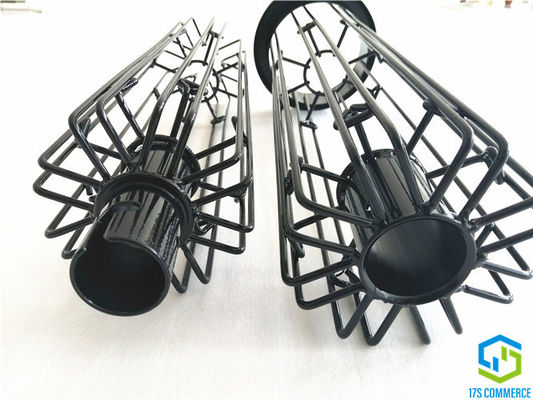

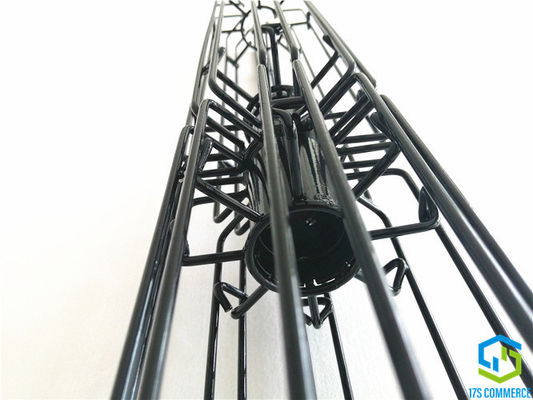

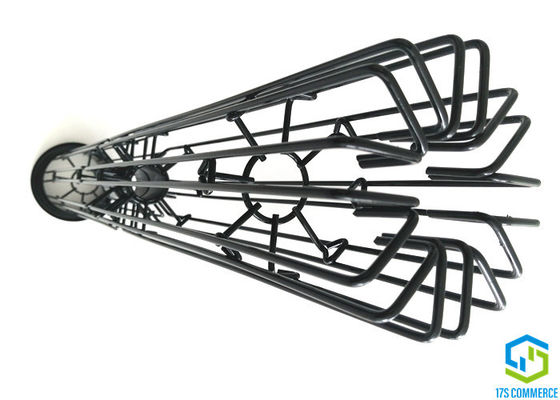

Two Pieces Star Filter Cage Silicon Coating Twist Joint Pleat Cage 138mm Mild Steel Spider Cage Bag House Bag Cage
1. Specification
Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

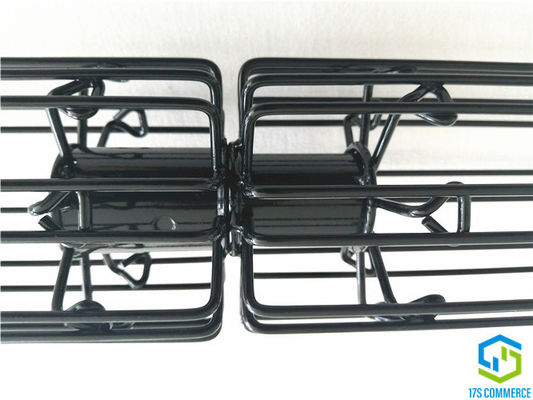

Normally cage is one section, we recommend two sections cage if cage too long or bag house top space is not enough. The joint is called globle joint or twist joint, which is easy to install and removal.
2. Overview
Style | star cage / pleat cage / spider cage | ||
Pleats No. | 8 pleats | ||
Material | Q235 mild steel | ||
Diameter | 138 | mm | |
Vertical Wire | Number | 16 | pcs |
Thickness | 4 | mm | |
Spider | Type | wire | |
Thickness | 4 | mm | |
Distance | 150-250 | mm | |
Length | TBD | mm | |
Structure | one section | ||
Joining Method | No | ||

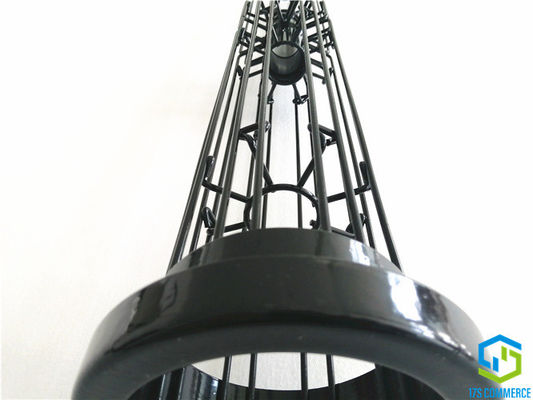

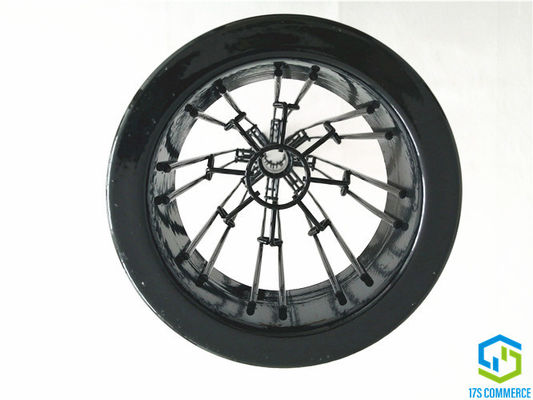

Top Cap | Type | weld U shape top cap | |
Size | 138/185 | mm | |
Thickness | 1-1.2 | mm | |
Fix | weld to cage | ||
Venturi | Size | no | mm |
Thickness | 1 | mm | |
Fix | weld to top cap | ||
Bottom Cap | Type | wire bent inworder | |
Size | 138 | mm | |
Thickness | no | mm | |
Fix | no | ||
Finishing | Type | silicon coating | |
Thickness | 90-140 | um | |
Color | black | ||
Pack | steel crate |
3. Why Choose Us
1) over ten years experience in this field
2) very strict quality control management
3) perfect feed back from customers about quality,service,shipping etc
4) we have own factory, easy control of quality, leadtime, workmanship and IP protection
5) many big and famous customers buy our products consistently
6) strong R&D team, design and develop and product ability
7) QC and QA inspection before shipping
8) 100% products exported, know customers’ requires
9) Zero complain and claim of our products till now
4. Some Endusers
Our Star Cages are used worldwide, there are about our 400 thousand star cages running everyday, such like Kitmat Smelter Modernization Project (Rio Tinto Inc, Canada), Aluminerie De Baie Comeau (Alcoa Ltee/Ltd, Canada), Dubai Aluminium Company Ltd (Alstom, Dubai,EGA), Nordural Century Aluminium (Iceland), Trimet Aluminium SE (German) and so on.
5. Star cage on site
