P84 Star Bag Dust Collector Filter Cage Wire Spider

8 Pleat P84 Star Filter Bag Cage Pleat Bag Cage Bag House PE Star Bag Cage Spider Cage

1. Specification

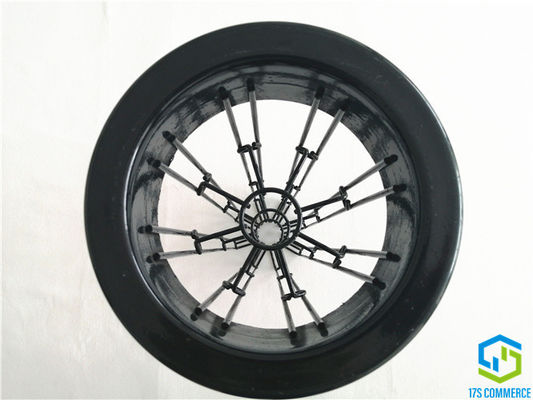

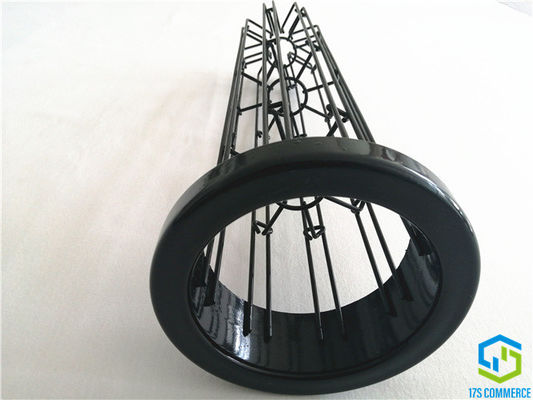

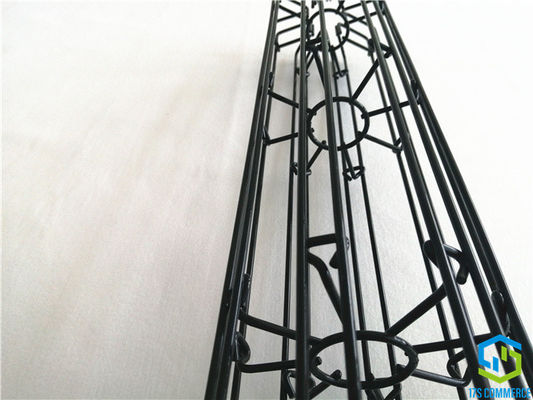

Star cage, also names pleat cage, spider cage, is the bone and framework of bag, supporting the bag running, is special designed and made for star bag. Star Cages are welded by special supporting rings (Spiders). We are specialized in Star Cages design, develop and process. We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.

2. Datasheet

Style	star cage / pleat cage / spider cage
Pleats No.	8 pleats
Material	Q235 mild steel
Diameter	110, 120, 138, 144, 150		mm
Vertical Wire	Number	16	pcs
	Thickness	4	mm

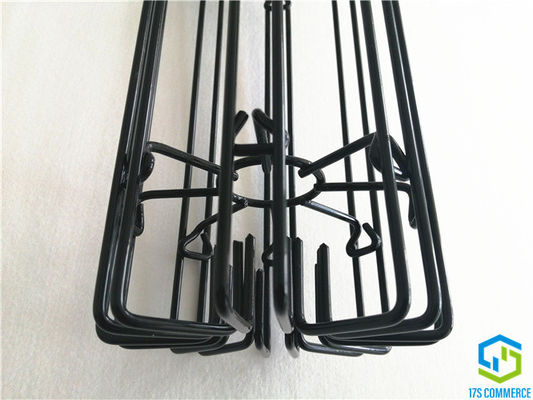

Spider	Type	wire
	Thickness	4	mm
	Distance	150-250	mm
Length	TBD		mm
Structure	one section / two sections
Joining Method	No
Top Cap	Type	weld U shape top cap, various choices
	Size	be up to cage	mm
	Thickness	1-1.2	mm
	Fix	weld to cage
Venturi	Size	no	mm
	Thickness	1	mm
	Fix	weld to top cap
Bottom Cap	Type	wire bent inworder
	Size	120	mm
	Thickness	no	mm
	Fix	no
Finishing	Type	silicon coating
	Thickness	90-140	um
	Color	black
Pack	steel crate

3. Advantage

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

So
• longer bag service life

• increase the air volume of existing dust collectors to increase production capacity

• lower emission

• reduce energy consuption

• reduce operation cost

• reduce pressure drop

• lower pulse jet pressure and frequence

• small bag house and building area

• lower the filter velocity


4. Cage test
