Product Details:
|
| Cage Material: | Stainless Steel,Carbon Steel, Galvanized Wire, | Cage Finish Treatment: | Silicon Coating, Zinc Coating, Electrophoresis Coating |
|---|---|---|---|
| Pack: | Steel Crate | Size: | Customized |
| MOQ: | Negotiable | Cage Top Cap: | Ordinary Cap, Venturi Top, Mikopul Cap, Hook Top, Ring Top, ETC |
| Cage Joint: | Twist Lock, Finger Lock, Slide Lock, Global Joint Lock | Cage Style: | Round, Special Design |
| High Light: | OEM dust collector cages,ODM dust collector cages,Acrylic Filter Bag Cage |
||
Round Acrylic Dust Filter Bag Cage Bag House Acrylic Normal Bag Cage Acrylic Filter Bag Cage
1. Specification

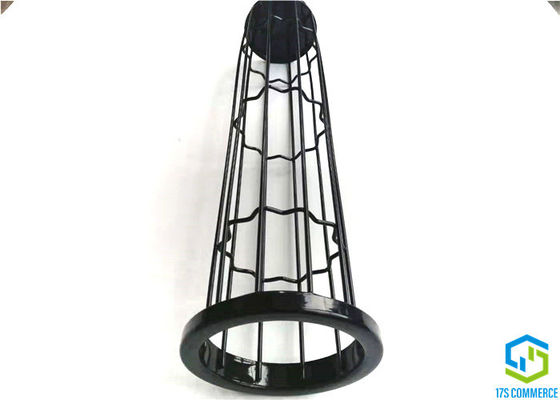

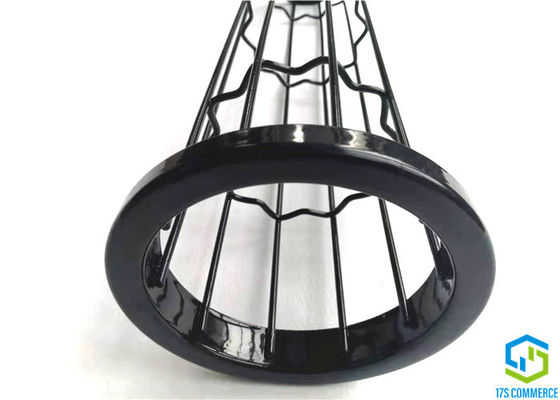

Cages are frameworks for bags, which is the bone of bags and supports the bags running. Both bags and cages are the most important element for bag houses. Star Cages are welded by special supporting rings (Spiders). We have own stretch line, cut line, weld line, coating line and check equipment. Providing a wide range of star filter cages for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
2. Procedure of cage making
| 1 | stretch line | streth 6 or 6.5 raw wire to roll diameters wires for cages, normally 3mm, 3.5mm and 4mm, |
| 2 | cut line | cut roll wires to fixed length based on cage sizes |
| 3 | weld body | weld vertical wires and suppoting ring together |
| 4 | weld top and bottom cap and venturi | weld top and bottom cap to cage, venturi if necessary |
| 5 | coating | silicon or zinc coating if necessary |
| 6 | inspect and fix | inspect weld loose, burs, coating etc and fix |
| 7 | pack | put cages into steel crates |
3. Cage construction
Optional Material: carbon steel, galvanized wire, stainless steel
Cage Diameter: customized
Cage Finish Treatment: silicon coating, zinc coating, electrophoresis coating

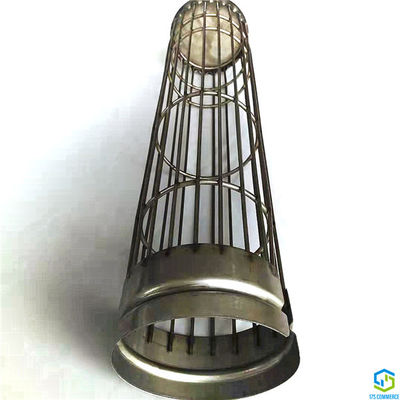

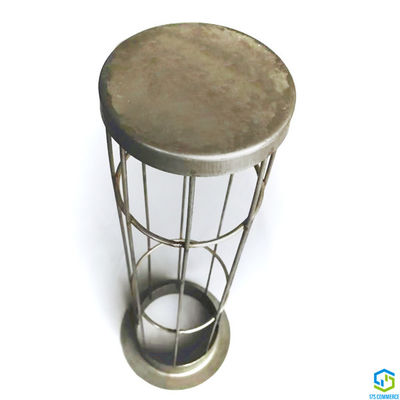

Cage Head: normal top cap, venturi top cap, split top (Mikropul) cap, wires bent (hook) top, enlarged top ring etc
Cage Joint: cages were too long or top space of bag house was not enough, we suggest make cages in sections with joint like below
Cage pack
