Product Details:
|
| Material: | PPS Felt | Weight: | 500-650gsm |
|---|---|---|---|
| Working Temperature: | 190 ℃ Continuous And 230 ℃ Peak | Bag Finishing: | Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation And So On |
| Bag Head: | Seal Cuff, Bead Cuff | Pack: | Carton And Pallet |
| MOQ: | Negotiable | Shipping Date: | Negotiable |
| High Light: | Round PPS Filter Bags,650gsm PPS Filter Bags,PPS dust filter bags |
||

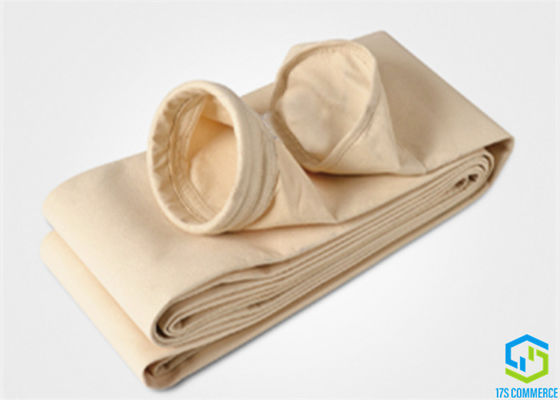

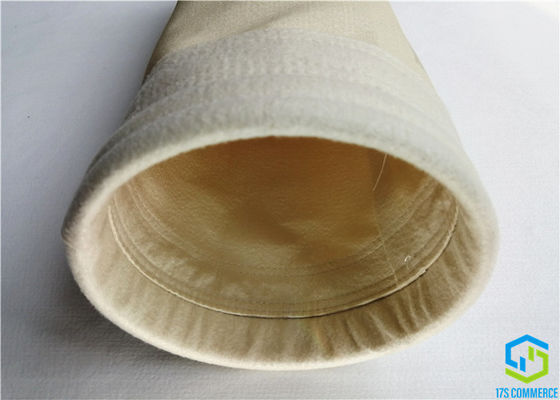

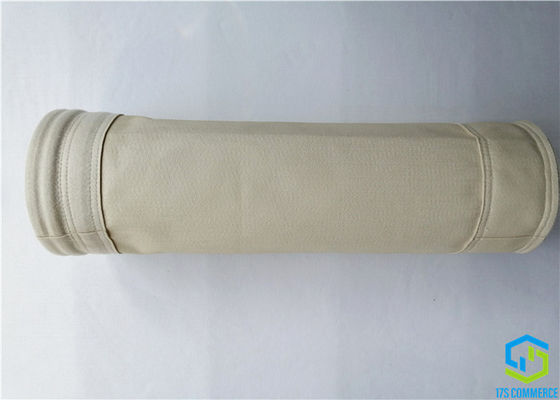

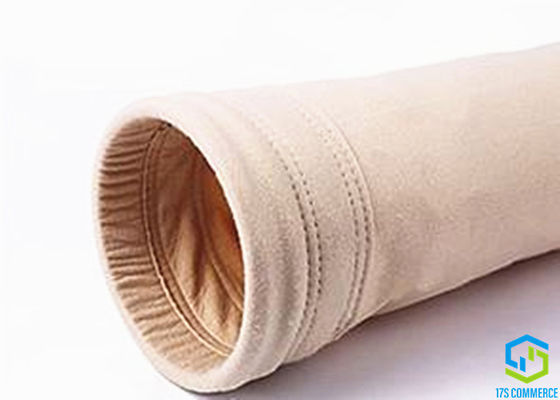

Round PPS Dust Filter Bag Bag House PPS Bag Dust Collector PPS Felt Bag
1. Specification
PPS(polyphenylene sulphide) polymer is formed by reaction of sulphur with dichlorobenzene. PPS has both high temperature resistance (190℃) as well excellent acid and alkali resistance, although it can be degraded in highly oxidative environments. PPS fiber needle felt is made of imported PPS fiber which produced by Japan, it is the leading varieties of the high temperature fiber material, PPS filter bag perform excellent in the application of the following situations.
1) The working temperature is up to 190℃,short term working temperature 210℃, the melting point of 285℃, the limit oxygen index 34-35
2) The oxygen content with 10% or below can be used
3) The place of flue gas containing moisture
PPS has the strength to keep the integrity and intrinsic chemical resistance, can maintain a good performance in the bad environments, and achieve the ideal life. PPS bag is the ideal material of filter coal boiler, incinerator ash, dust processing and others pulse dust collectors.
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on
Bag Size: it is up to the CPO and installation and customized
Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen
Bag Body: Sewing or Hot sealing
Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
Construction of Round Filter Bags
| Style | Size | Felt/ Fabric | Body | Head | Bottom Layer | Reinforcement |
| Round | Customized | Various | Sewing or Hot Sealing | Seal Cuff, Bead Cuff | Single Or Double | With Or Without |
2. Parameters of PPS Filter Bags
| Bag | PPS Filter Bag | |||||
| Felt | PPS Needled Felt | |||||
| Scrim | PPS | |||||
| Weight | gsm | 500-600 | ||||
| Permeability | cfm | 25-35,PTFE lamination 3-7 | ||||
| Tensile Strength | Warp | ≥N | 900 | |||
| Weft | ≥N | 1100 | ||||
| Break Elongation | Warp | < % | 35 | |||
| Weft | < % | 50 | ||||
| Working Temperature | Continuous | Dry | ℃ | 190 | ||
| Moist | ℃ | 190 | ||||
| Short term | ℃ | 232 | ||||
| Dry Shrinkage | Warp | <% | 1.5 | |||
| Weft | <% | 1.5 | ||||
| Specific Density | 1.38 | |||||
| Support Combustion | no | |||||
| Resistance | Hydrolysis | poor | ||||
| Biological (mildew, bacteria) | no effect | |||||
| Alkalis | excellent | |||||
| Mineral Acids | excellent | |||||
| Orgnic Acids | excellent | |||||
| Oxidising Agents | fair | |||||
| Orgnic Solvents | excellent | |||||
| Finishing | singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc | |||||
3. Why Choose Us / Our Adcantage
1) over ten years experience in this field
2) very strict quality control management
3) perfect feed back from customers about quality,service,shipping etc
4) we have own factory, easy control of quality, leadtime, workmanship and IP protection
5) many big and famous customers buy our products consistently
6) strong R&D team, design and develop and product ability
7) QC and QA inspection before shipping
8) 100% products exported, know customers’ requires
9) Zero complain and claim of our products till now
4. Lab facility
