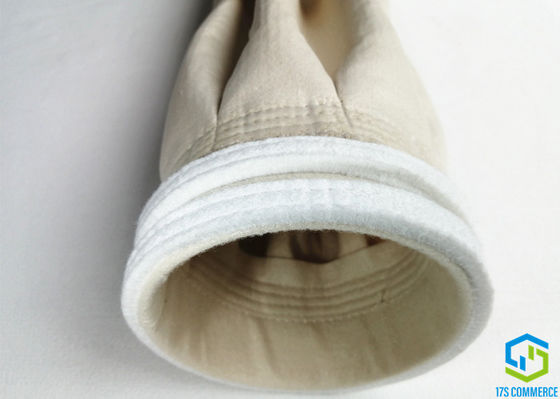

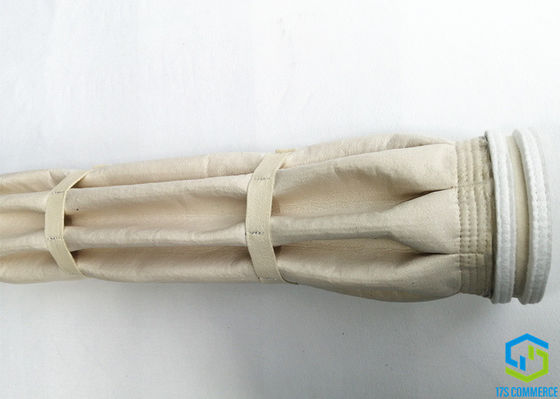

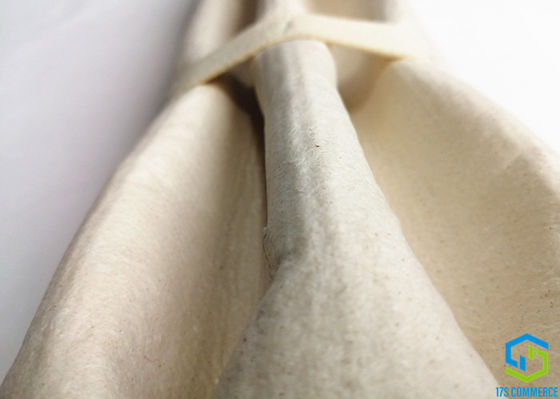

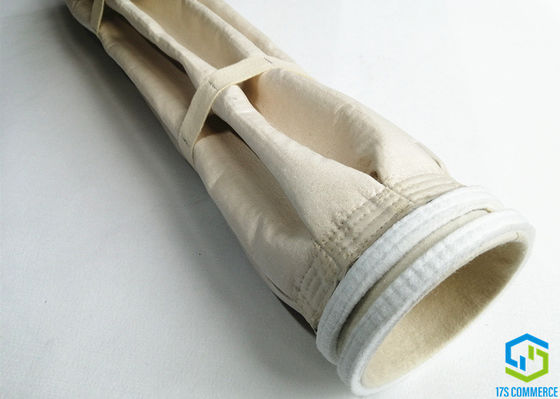

8 Pleats PPS Filter Bags 150mm 150mm Exceptional Stability

8 Pleats PPS Star Bag PPS Pleat Bag Production Capacity Increase High Efficient PPS Felt Filter Pleat Bag

1. Specification

Star filter bags (Star bags) and Star filter cages (Star Cages) are special design to extend the filter surface. They are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. They are also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.


2. The Match of Star bags and Cages

Star filter cages are special designed to fit star bags, which is not like ordinary ones with tigh match. Star cages is a kind of loose match of star bags, which is good for deashing.

Match Of Star Bags and Star Cages

3. Features:

PPS fiber can keep intensity completely and bear chemistry naturing inherently, keep good filtration performance among the abominable environment, reach ideal service life. In coal boiler, rubbish incinerator, power plant of fly ash filtering of pulse clear dust catcher, PPS filter felts are an ideal filtration material. PPS filter felt is one of the main filter material able to bear the high temperature according to processed of production technology and artificial material of other high-temperature filter felt.

• Exceptional Stability for a Wide Range of Temperature and Frequency Variations
• Be suitable for the oxygen content below 15%;
• Chemical Resistance to Acids, Alkalis and Organic Solvents
• Containing moisture in the flue gas; Hydrolysis Resistance
• Very stable in finished felt form with stability standards at 2% shrink or stretch.
• Favorable temperature resistance melting point 285℃, limited oxygen index 34~35;

• Fair resistance to oxidation under high temperature.

• When the oxygen in the smoke ( O2 content) over 10% and the operating temperature over 165℃, PPS will be in decomposition.

4. Applications

• Coal - Fired Boilers bag houses
• Municipal Solid Waste Boilers and Waste incinerator
• Calciners / Catalysts
• Electric power plant
• Electrolysis and other Specialty membranes
• Waste to energy
• Iron and non ferrous Metal Industry Specification

5.Product processing
