Product Details:
|
| Name: | Star / Pleat Bag, Extend Filter Surface Bag | Felt: | PE |
|---|---|---|---|
| Diameter: | 120mm, 130mm, 150mm, 155mm, 160mm | No. Of Pleats: | 8 Pleats, 12 Pleats, 10 Pleats |
| Head: | Seal Cuff / Bead Cuff | Metal Hoop: | 304 Stainless Steel |
| Bottom: | Two Layers | Length: | Customized |
| High Light: | ISO Polyester Filter Bags,Anti Static Polyester Filter Bags,PE Industrial Dust Collector Filter Bags |
||

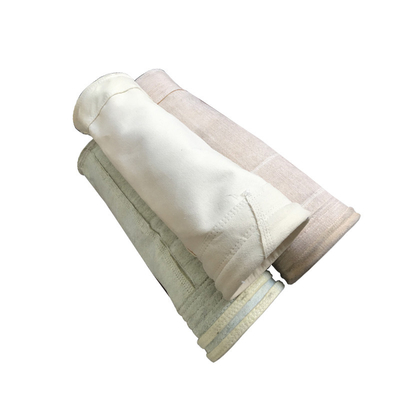

Polyester Dust Collector And Electricity Anti-Static Industrial Filter Bag
Description
Inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.
Our felt bags are designed to withstand higher solid loading, and are suitable for applications using bag housing or open filtration systems. With FQ filter bags, you can count on a quality product every time. We makes its own fiber to produce the felt material used in our felt filter bags inhouse, guaranteeing the highest quality.
Characteristics
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8 pleats, 12 pleats | ||
| Material | PE (Polyester) | ||
| Diameter | 120,130,150,160 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 120,130,150,155,160 | mm |
| Cuff | Type | seal cuff / bead cuff | |
| Width | 10-12mm | ||
| Thickness | 8-10mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 120,130,150,155,160 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface increase (%) and advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 | |
| 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 | |
| 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 | |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
| 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 | |
| 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 | |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
Application
PTFE: Cement factory, Iron & Steel factory, Power Plant factory, Waste Incineration factory.
P84: Cement factory, Iron & Steel factory.
PPS: Cement factory, Power Plant factory.
Aramid: Cement factory, Iron & Steel factory, Power Plant factory, Asphalt factory, Lime factory.
Fiberglass: Cement factory, Iron & Steel factory.
FMS: Cement factory, Iron & Steel factory, Power Plant factory.
Acrylic: Cement plants, Asphalt plants, Lime.
