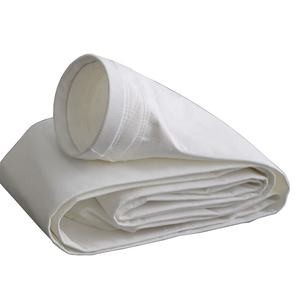

Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags

Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags
Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags
Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags

Large Image :  Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags

Product Details:
Place of Origin: China
Brand Name: 17s
Certification: ISO
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: polybag and pallets for bags and steel crates for cages
Delivery Time: TBD
Supply Ability: TBD

Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags

Description
Material: Polyester Felt Weight: 500-650gsm
Working Temperature: 135 ℃ Continuous And 150 ℃ Peak Finishing: Singeing, Calendering, Heat Setting, Anti-static, Water&oil Repellent, PTFE Membrane, PTFE Impregnation And So On
Bag Head: Seal Cuff, Bead Cuff Size: Customized
Pack: Plastic Bag And Pallet Origin Of Country: China
High Light:

Customized Cement Dust Collector Bags

,

Polyester Cement Dust Collector Bags

,

650 gsm Polyester Filter Bags

Polyester Cement Industry Bag Filters Custom Dust Bag


1. Specification
Polyester is a resin formed by the esterification reaction of dicarboxylic acids with diols. Polyester is used in low temperature filtration and can be degraded in application where moisture is present. We choose cascaded blend of different fiber sizes with the finer fiber concentration in the filtration surface to make the product not only have the common felt’s advantage of high voidage, good air permeability, high dust collection efficiency, long service life, etc , but also have the advantage of the moderate temperature rating, can reach 150 at the moment, moderate effect of the anti-antacid and anti-alkali, and has very good abrasion resistance.



  • PTFE dust filter bag is a filter material made of PTFE (polytetrafluoroethylene) through three-dimensional acupuncture.
  • Applicable temperature is -210 ° C to 265 ° C;
  • Acid and alkali resistance, strong chemical stability (0-14PH);
  • Suitable for high humidity environment; non aging;
  • With strong chemical resistance and high stability among all filter materials.



Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 0  Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 1



2. Parameters of Polyester Filter Bags

Bag Polyester Filter Bag
Felt PolyesterNeedled Felt
Scrim Polyester
Weight gsm 500-600
Permeability cfm 25-40,PTFE lamination 3-7
Tensile Strength Warp N 1000
Weft N 1400
Break Elongation Warp < % 20
Weft < % 50
Working Temperature Continuous Dry 135
Moist 94
Short term 150
Dry Shrinkage Warp <% 1.5
Weft <% 1.5
Specific Density 1.38
Support Combustion yes
Resistance Hydrolysis restrict
Biological (mildew, bacteria) no effect
Alkalis fair
Mineral Acids fair
Orgnic Acids fair
Oxidising Agents good
Orgnic Solvents good
Finishing singeing, calendaring, oil and water proof, PTFE impregnation coating, PTFE lamination etc



3. Product facility

Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 2 Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 3 Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 4 Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 5



4. Application

Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 6 Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 7 Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 8 Industry Cement Dust Collector Bags 500 - 650gsm Polyester Filter Bags 9
