Product Details:
|
| Color: | Golden | Tear Resistant: | Yes |
|---|---|---|---|
| Fireproof: | Yes | Size: | Customizable |
| Temperature: | 260 | Mildew Resistant: | Yes |
| Product Name: | Airslide | Abrasion Resistant: | Yes |
| High Light: | Airslide Belt Fabric Fireproof Band,Aramid Conveyer Belt,Aramid Airslide Belt |
||

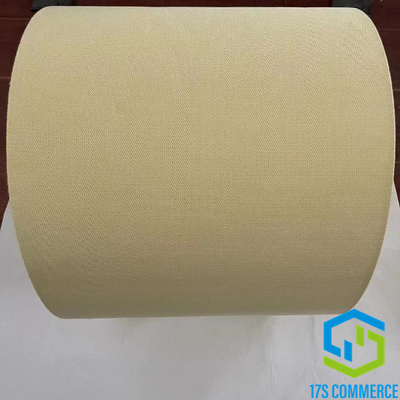

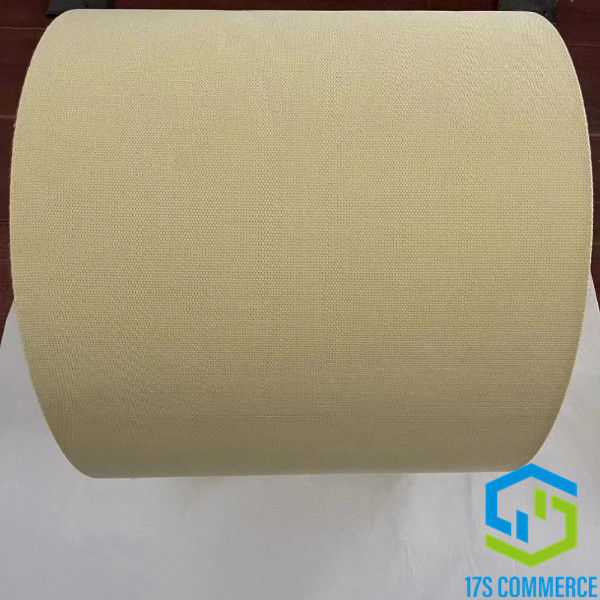

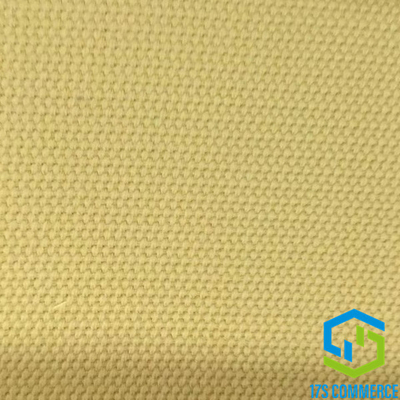

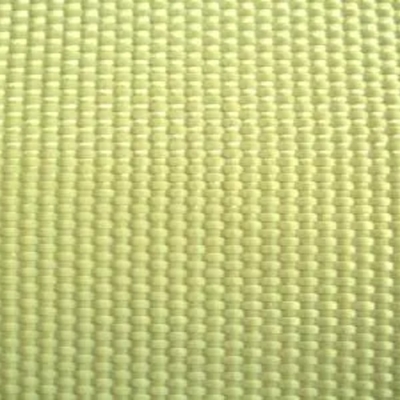

1414 Aramid airslide is developed and produced by our factory, using aramid 1414 yarn as raw material, woven by special loom, interwoven by warp and weft. The color is yellow, and the temperature resistance can reach 260℃, which is suitable for use under high temperature conditions. Can produce thickness of 4-6mm, width of 100-2000mm, can be customized according to requirements.
Airlsides are top-notch airslide bands and airslide fabrics that are highly durable and reliable for use in various industries. It is made of polyester fabric, which is fireproof, chemically resistant and temperature resistant up to 140°C. The airslide fabric can be customized according to your needs, and is used in a wide range of applications, such as dust collection, powder filling and conveying. It is also widely used for bulk material handling, dust-free conveying, and energy saving requirements. The airslide fabric is lightweight and easy to install, and has excellent air permeability and dust separation characteristics, making it a perfect choice for dust control and material transport. With its superior performance, airslide fabrics are the ideal solution for your airslide needs.
Features: clear, flat, stable size, no deformation. The air flow is uniform and stable. High temperature and corrosion resistance. Low energy consumption, long life, minimal maintenance. The use of imported raw materials, higher temperature resistance, higher strength, better wear resistance.
| Item | AR4 | AR5 | AR5.5 | AR6 |
|
Weight Kg/m2(±5％) |
2.8 | 3.6 | 3.8 | 4.2 |
|
Thickness Mm(±0.2) |
4 | 5 | 5.5 | 6 |
|
Tensile Strength kg/10mm |
＞800 | ＞800 | ＞900 | ＞1000 |
|
Elongation Breaking ％ |
＜6 | ＜6 | ＜6 | ＜6 |
|
Permeability 10-3m3/m2.S(±20%) |
65 | 55 | 45 | 32.5 |
|
Permeability m3/m2.min(±20%) |
4 | 3.25 | 2.8 | 2.4 |
|
Temperature ℃ |
≤260 | ≤260 | ≤260 |
≤260
|
Airslide, the brand name of the conveyer belt, is made in China and is highly durable and abrasion resistant. It can withstand temperatures of up to 140, making it suitable for a wide range of applications and scenes. The belt is also customizable in size, making it versatile and suitable for many different uses.
Usage: The product is mainly used as a supporting product of air chute and storage hopper, used for conveying dry powder materials. Widely used in high temperature cement, thermal power plant, alumina, bauxite, soda ash, gypsum, flour and other industries of horizontal transport and silo boiling.
Arislide provides technical support and services to ensure that our customers get the most out of their experience with our products. Our support team is available to answer any questions you may have and ensure that your purchase is as smooth as possible.
Airlslide is shipped in a box that is 19.7 x 19.7 x 7.9 inches in size.
It is then protected with bubble wrap and placed in a corrugated box for shipment.
The product is then shipped with a reputable carrier. Depending on the destination, Airslide may be shipped with UPS, FedEx, or a local courier.
The tracking details are provided to the customer after the product is shipped.
```
