Product Details:
|
| Material: | Carbon Steel | Finish Treatment: | Silicon Coating |
|---|---|---|---|
| Supporting Ring: | Round Ring | Diameter: | Customized |
| Vertical Wires No.: | 8 To 24 PCS | Top Cap: | Enlarged Ring |
| Vertical Wire Thickness: | 3-4mm | ||
| High Light: | ISO Star Filter Cages,Carbon Steel Star Filter Cages,ODM filter bag cages |
||

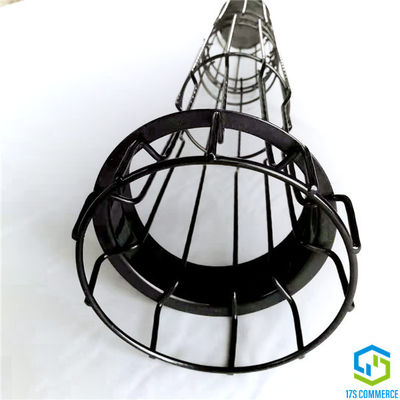

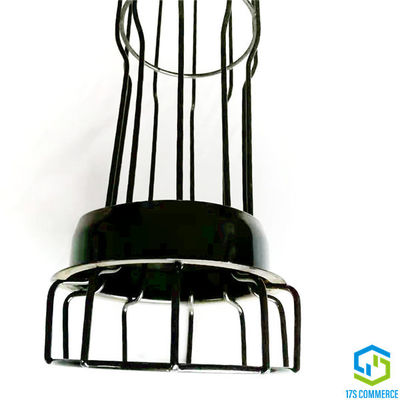

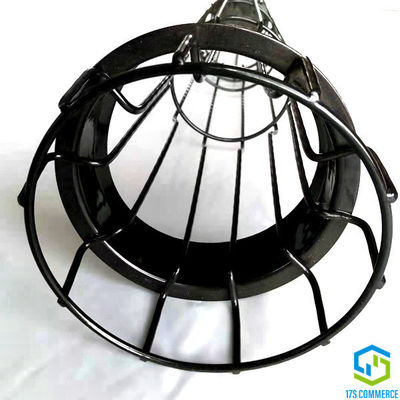

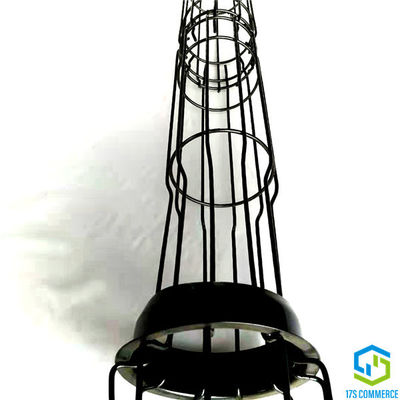

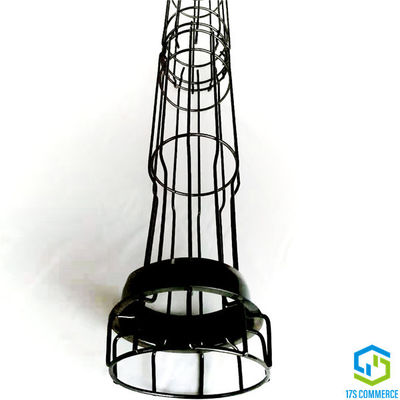

Enlarged Ring Top Cap Star Filter Cage Crimped Wire Joint Cage Silicon Coating Round Filter Cage
Specification
| Style | round filter cage special top cap | ||
| Item | 17SRC001 | ||
| Material | Q235 wild steel | ||
| Cage Diameter | 120-250 | mm | |
| Vertical Wire | Number | 8-24 | pcs |
| Thickness | 3-5 | mm | |
| Support Ring | Type | round | |
| Thickness | 3.5-6 | mm | |
| Distance | 150-350 | mm | |
| Length | Customized | mm | |
| Structure | one section or two sections | ||

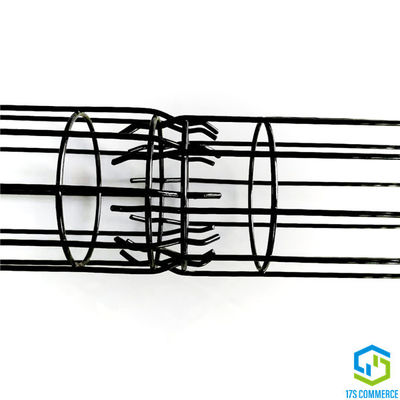

| Joining Method | Crimped wire / finger joint | ||
| Top Cap | Type | Enlarged ring | |
| Size | based on cage diameter | mm | |
| Thickness | 4-6 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | no | mm | |
| Fix | weld to top cap | ||
| Bottom Cap | Type | punch plate | |
| Size | per cage diamter to adjust | mm | |
| Thickness | 1 | mm | |
| Fix | weld to cage | ||
| Finishing | Type | silicon coating | |
| Thickness | 90-140 | um | |
| Color | black | ||
| Pack | steel crate | ||
Production Flow
