Product Details:
|
| Material: | Galvanized Wire | Name: | Dust Collect Filter Cage |
|---|---|---|---|
| Supporting Ring: | Round Ring | Diameter: | Customized |
| Vertical Wires No.: | 12 PCS | Top Cap: | Wire Bent Weld Ring |
| Vertical Wire Thickness: | 4mm | ||
| High Light: | Galvanized Dust Collector Filter Cage,120mm Dust Collector Filter Cage,Round dust collector cage |
||
Wire Bent Cage Enlarged Ring Top Dust Filter Cage Wire Bent Bottom Cage Galvanized Round Filter Cage
Overview
| Style | round filter cage special top cap | ||
| Item | 17SRC002 | ||
| Material | Galvanized Wire | ||
| Cage Diameter | 120-250 | mm | |
| Vertical Wire | Number | 12 | pcs |
| Thickness | 4 | mm | |
| Support Ring | Type | round | |
| Thickness | 4 | mm | |
| Distance | 150-250 | mm | |
| Length | Customized | mm | |
| Structure | one section or two sections | ||
| Joining Method | No | ||
| Top Cap | Type | Enlarged ring | |
| Size | based on cage diameter | mm | |
| Thickness | 4-6 | mm | |
| Fix | weld to cage | ||
| Venturi | Size | no | mm |
| Thickness | no | mm | |
| Fix | no | ||
| Bottom Cap | Type | wire bent | |
| Size | per cage diamter to adjust | mm | |
| Thickness | 4 | mm | |
| Fix | wire bent inwarder | ||
| Finishing | Type | galvanized wire | |
| Thickness | 30 | um | |
| Color | silver | ||
| Pack | steel crate | ||

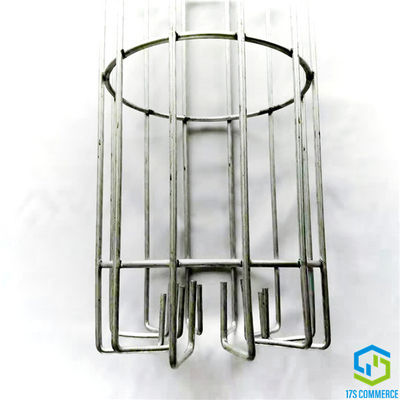

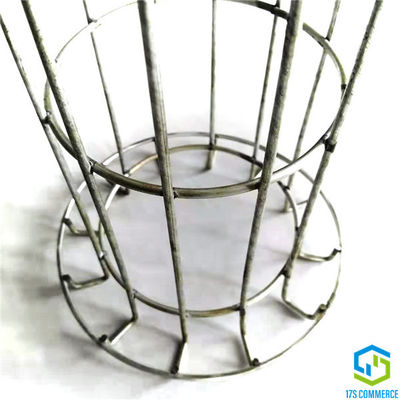

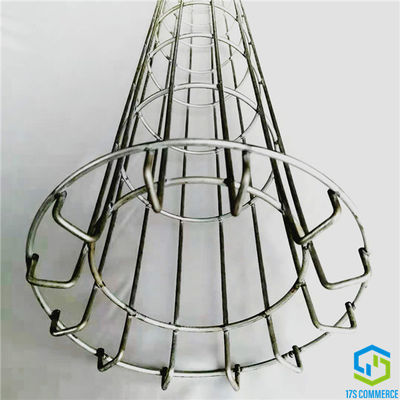

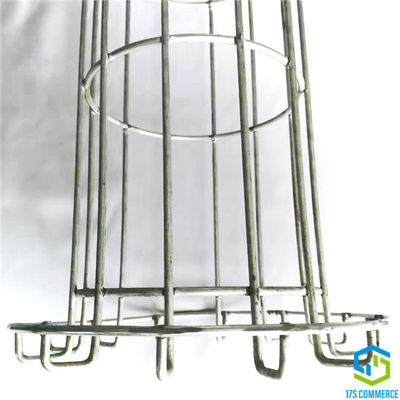

Product Show
Shipping of cage
Normally shipping by sea, we can ship by air if urgent needed. for samples shipping press is the best choice.
