Product Details:
|
| Name: | Star Bag | Felt: | P84 |
|---|---|---|---|
| Diameter: | 120mm | No. Of Pleats: | 8 /12 Pleats |
| Head: | Bead / Seal Cuff | HS Code: | 5911 9000 90 |
| Origin: | China | Pack: | Polybag And Pallet Or Carton And Pallet |
| High Light: | 120mm P84 filter bag,ISO P84 filter bag,pleated dust collector bag |
||
120mm Diameter P84 Filter Star Bag P84 Pleat Dust Collect Bag Filter Surface Extended Bag
Datasheet
| Style | star bag, pleat bag, expand filter surface/area bag | ||
| Pleats No. | 8 /12 pleats | ||
| Material | P84 | ||
| Diameter | 120 | mm | |
| Length | TBD | mm | |

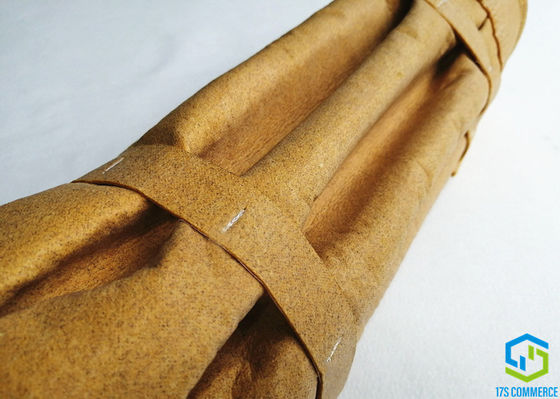

| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |

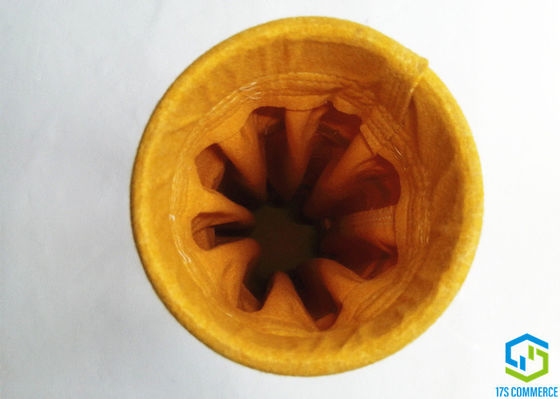

| Top | Opening | 120 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||

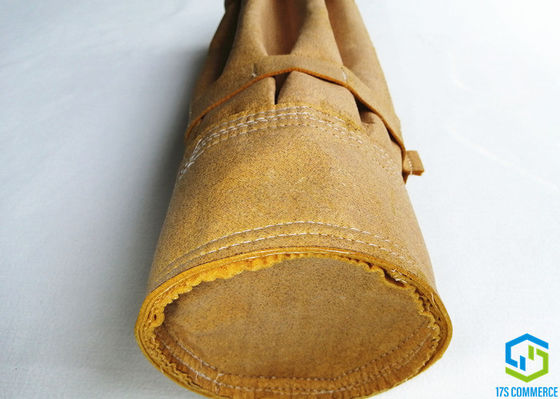

| Boot / Bottom | Diameter | 120 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||

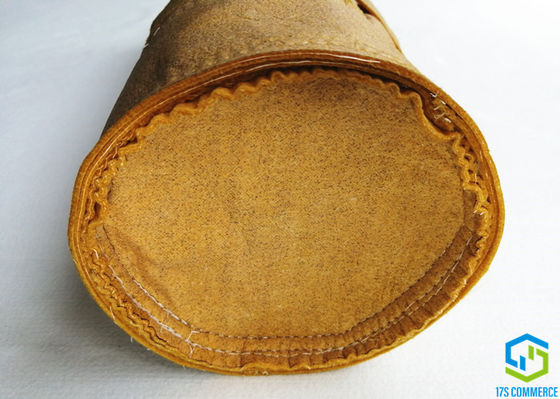

| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface expanded
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
| 12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
So
• longer bag service life
• increase the air volume of existing dust collectors to increase production capacity
• lower emission
• reduce energy consuption
• reduce operation cost
• reduce pressure drop
• lower pulse jet pressure and frequence
• small bag house and building area
• lower the filter velocity
How to pack
We fold bag into a specification per bag dismater and length which can suit polybag and carton, and then put sealed polybag and carton on pallets, pack them per container type.
